IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

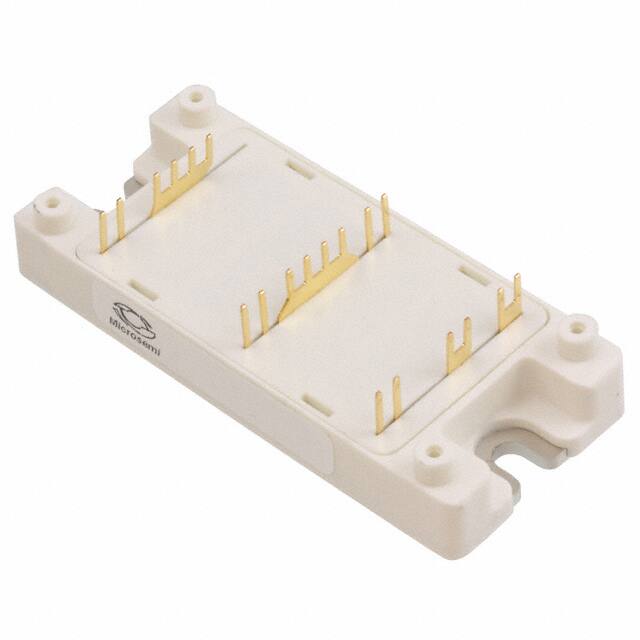

APTGF100A120TGIGBT MODULE 1200V 135A 568W SP4 |
5,519 |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APT150GT120JRIGBT MOD 1200V 170A 830W ISOTOP |
7,695 |
|
Datasheet | Thunderbolt IGBT® | ISOTOP | Tube | Active | NPT | Single | 1200 V | 170 A | 830 W | 3.7V @ 15V, 150A | 150 µA | 9.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGT100A60T1GIGBT MODULE 600V 150A 340W SP1 |
9,200 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
APTGT100DA120T1GIGBT MODULE 1200V 140A 480W SP1 |
6,485 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
APTGT50SK170T1GIGBT MODULE 1700V 75A 312W SP1 |
8,812 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Single | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT50DDA60T3GIGBT MODULE 600V 80A 176W SP3 |
4,238 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGLQ30H65T3GIGBT MODULE 650V 40A 95W |
3,130 |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 40 A | 95 W | 2.3V @ 15V, 30A | 50 µA | 1.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
APTGT50A120T1GIGBT MODULE 1200V 75A 277W SP1 |
3,331 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|

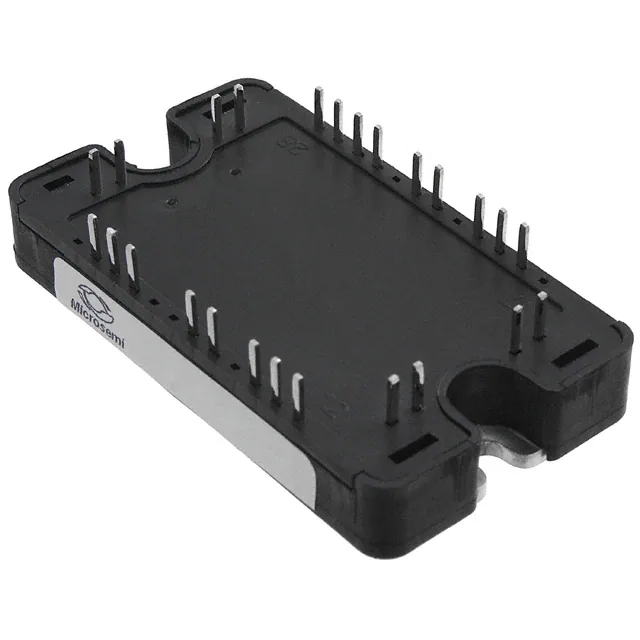

APTGF150A120T3AGIGBT MODULE 1200V 210A 1041W SP3 |
3,794 |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 210 A | 1041 W | 3.7V @ 15V, 150A | 250 µA | 9.3 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGT50H60T1GIGBT MODULE 600V 80A 176W SP1 |
5,633 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
