IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGF75H120TGIGBT MODULE 1200V 100A 500W SP4 |
9,859 |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Full Bridge Inverter | 1200 V | 100 A | 500 W | 3.7V @ 15V, 75A | 250 µA | 5.1 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APTCV60TLM99T3GIGBT MODULE 600V 50A 90W SP3 |
2,080 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter - IGBT, FET | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGT50A170T1GIGBT MODULE 1700V 75A 312W SP1 |
7,055 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
APTGLQ50H65T3GIGBT MODULE 650V 70A 175W SP3F |
6,912 |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 70 A | 175 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|

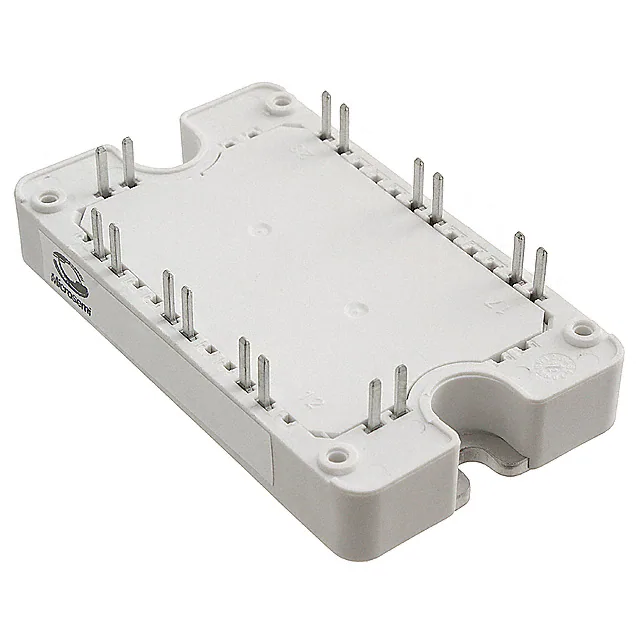

APTGT100BB60T3GIGBT MODULE 600V 150A 340W SP3 |
5,006 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
APT50GF120JRDQ3IGBT MOD 1200V 120A 521W ISOTOP |
2,806 |
|
Datasheet | - | ISOTOP | Tube | Active | NPT | Single | 1200 V | 120 A | 521 W | 3V @ 15V, 75A | 750 µA | 5.32 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APTGT50DA120TGIGBT MODULE 1200V 75A 277W SP4 |
3,094 |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT50SK120TGIGBT MODULE 1200V 75A 277W SP4 |
8,212 |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

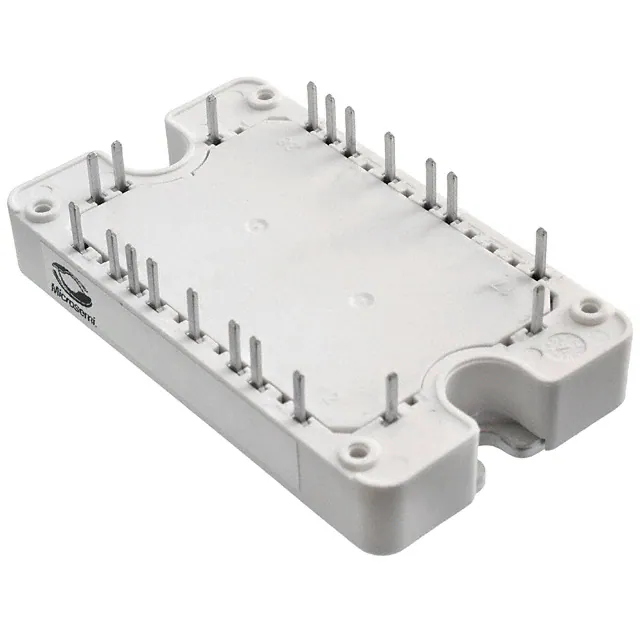

APTGT50H60RT3GIGBT MODULE 600V 80A 176W SP3 |
5,780 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Single Phase Bridge Rectifier | Yes | - | Chassis Mount | SP3 |
|
|
APTGLQ40HR120CT3GIGBT MODULE 1200V 75A 250W SP3 |
2,264 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | - | 1200 V | 75 A | 250 W | 2.4V @ 15V, 40A | 100 µA | 2.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
