IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT40GP90JDQ2IGBT MODULE 900V 64A 284W ISOTOP |
6,874 |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 900 V | 64 A | 284 W | 3.9V @ 15V, 40A | 350 µA | 3.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT45GP120JIGBT MOD 1200V 75A 329W ISOTOP |
6,995 |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 75 A | 329 W | 3.9V @ 15V, 45A | 500 µA | 3.94 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT100GT120JU3IGBT MOD 1200V 140A 480W SOT227 |
4,353 |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT80GP60JDQ3IGBT 600V 151A 462W SOT227 |
2,838 |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 600 V | 151 A | 462 W | 2.7V @ 15V, 80A | 1.25 mA | 9.84 nF @ 25 V | Standard | No | - | Chassis Mount | ISOTOP® |
|
APTGF100DA120TGIGBT MODULE 1200V 135A 568W SP4 |
9,863 |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Single | 1200 V | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APTGF180SK60TGIGBT MODULE 600V 220A 833W SP4 |
7,627 |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Single | 600 V | 220 A | 833 W | 2.5V @ 15V, 180A | 300 µA | 8.6 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
APTGF25X120T3GIGBT MODULE 1200V 40A 208W SP3 |
8,479 |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APT75GT120JRDQ3IGBT MOD 1200V 97A 480W ISOTOP |
7,858 |
|
Datasheet | Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 97 A | 480 W | 3.7V @ 15V, 75A | 200 µA | 5.1 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT200GT60JRIGBT MOD 600V 195A 500W SOT227 |
9,091 |
|
Datasheet | Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tray | Obsolete | NPT | Single | 600 V | 195 A | 500 W | 2.5V @ 15V, 200A | 25 µA | 8.65 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|

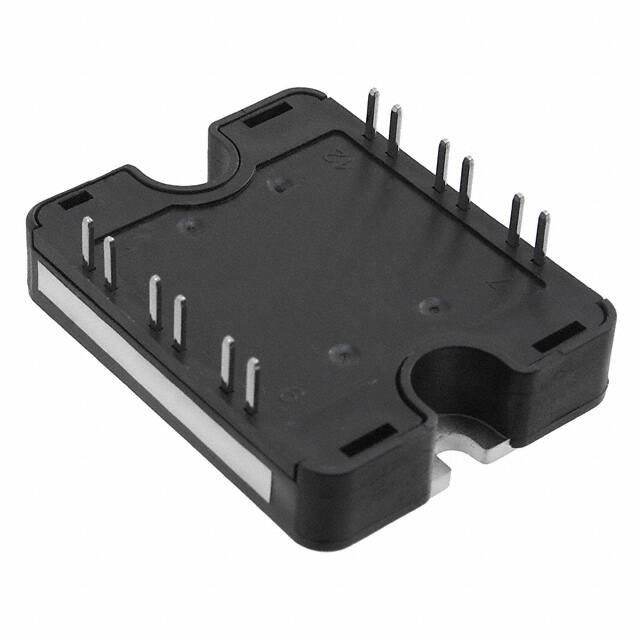

APTGT75DA60T1GIGBT MODULE 600V 100A 250W SP1 |
7,765 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
