IGBT Modules
Explore IGBT Modules parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT60GA60JD60IGBT MOD 600V 112A 356W ISOTOP |
1,258 |
|
Datasheet | POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 112 A | 356 W | 2.5V @ 15V, 62A | 275 µA | 8.01 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
F3L25R12W1T4B27BOMA1MODULE IGBT 1200V EASY1B-2 |
220 |
|
Datasheet | - | Module | Tray | Active | - | Half Bridge | 1200 V | 45 A | 215 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY1B |
|
IXGN320N60A3IGBT MOD 600V 320A 735W SOT227B |
1,665 |
|
Datasheet | GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 320 A | 735 W | 1.25V @ 15V, 100A | 150 µA | 18 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
IXYN110N120C4H11200V, 110A, XPT GEN4 C4 CO-PACK |
226 |
|
Datasheet | XPT™ | SOT-227-4, miniBLOC | Tube | Active | Trench | Single | 1200 V | 210 A | 830 W | 2.4V @ 15V, 110A | 50 µA | 5420 pF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
VS-GT180DA120UIGBT MOD 1200V 281A 1087W SOT227 |
169 |
|
Datasheet | HEXFRED® | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 281 A | 1087 W | 2.05V @ 15V, 100A | 100 µA | 9.35 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
IXDN75N120IGBT MOD 1200V 150A 660W SOT227B |
330 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 150 A | 660 W | 2.7V @ 15V, 75A | 4 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
IXGN100N170IGBT MOD 1700V 160A 735W SOT227B |
123 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1700 V | 160 A | 735 W | 3V @ 15V, 100A | 50 µA | 9.22 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
FZ400R12KE4HOSA1IGBT MOD 1200V 400A 2400W |
136 |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Single | 1200 V | 400 A | 2400 W | 2.1V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF200R12KE4HOSA1IGBT MOD 1200V 240A 1100W |
28 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 240 A | 1100 W | 2.15V @ 15V, 200A | 5 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF200R06KE3HOSA1IGBT MOD 600V 260A 680W |
29 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 600 V | 260 A | 680 W | 1.9V @ 15V, 200A | 5 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF300R12KT4HOSA1IGBT MOD 1200V 450A 1600W |
35 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | 1600 W | 2.15V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF400R06KE3HOSA1IGBT MOD 600V 500A 1250W |
80 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 5 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF450R12KT4HOSA1IGBT MOD 1200V 580A 2400W |
134 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | 2400 W | 2.15V @ 15V, 450A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF450R12KE4HOSA1IGBT MOD 1200V 520A 2400W |
30 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 520 A | 2400 W | 2.15V @ 15V, 450A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FZ600R17KE4HOSA1IGBT MOD 1700V 1200A 3350W |
29 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Single | 1700 V | 1200 A | 3350 W | 2.3V @ 15V, 600A | 1 mA | 49 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FZ600R12KE3HOSA1IGBT MOD 1200V 900A 2800W |
34 |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Single | 1200 V | 900 A | 2800 W | 2.15V @ 15V, 600A | 5 mA | 42 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
FZ900R12KE4HOSA1IGBT MOD 1200V 900A 4300W |
86 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Single | 1200 V | 900 A | 4300 W | 2.1V @ 15V, 900A | 5 mA | 56 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
NXH800H120L7QDSG1200V 800A QDUAL3 |
32 |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 800 A | - | 2.05V @ 15V, 800A | 100 µA | 94300 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | 11-PIM (152x62.15) |
|

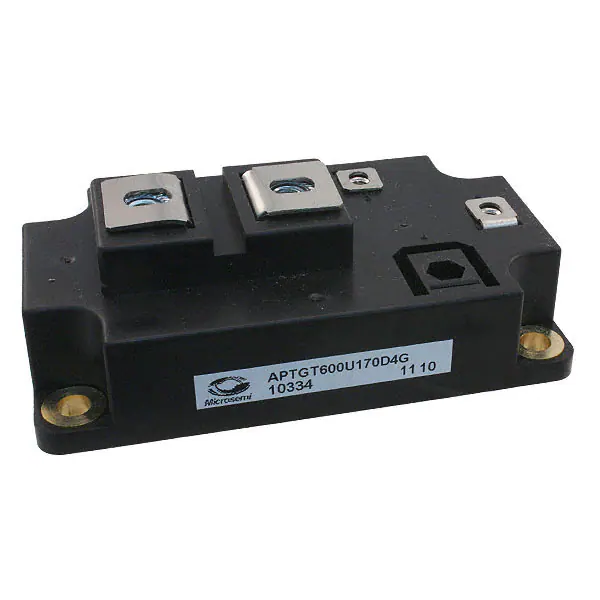

APTGT600U170D4GIGBT MODULE 1700V 1100A 2900W D4 |
27 |
|
Datasheet | - | D4 | Bulk | Active | Trench Field Stop | Single | 1700 V | 1100 A | 2900 W | 2.4V @ 15V, 600A | 1 mA | 51 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
|
|
FS1150R08A8P3LBCHPSA1FS1150R08A8P3LBCHPSA1 |
93 |
|
Datasheet | HybridPACK™ | Module | Box | Active | - | Three Phase Inverter | 750 V | 1.15 kA | 1 kW | 1.21V @ 15V, 600A | 1 mA | 60800 pF @ 50 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | - |
