IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT50GF120JRDIGBT NPT COMBI 1200V 50A ISOTOP |
8,072 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1200 V | 75 A | 460 W | 3.4V @ 15V, 50A | 750 µA | 3.45 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 (ISOTOP®) |
|

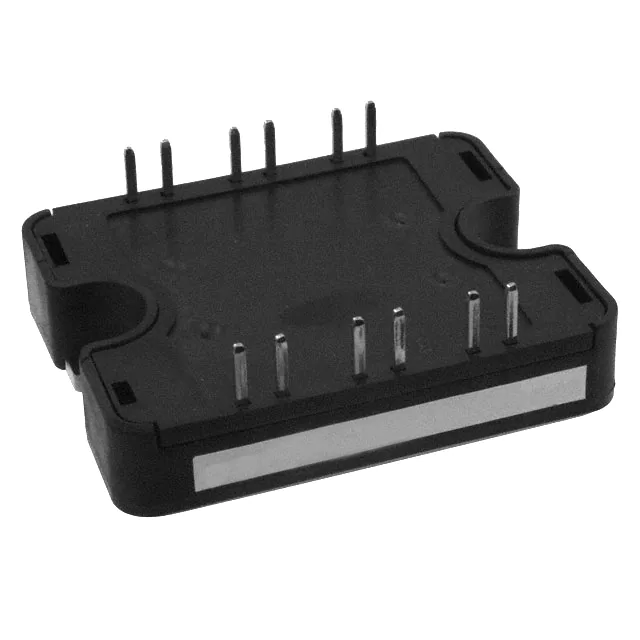

APTGT100DA60T1GIGBT MODULE 600V 150A 340W SP1 |
4,003 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APT100GT120JRIGBT MOD 1200V 123A 570W ISOTOP |
8,804 |
|
Datasheet | Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 123 A | 570 W | 3.7V @ 15V, 100A | 100 µA | 6.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|

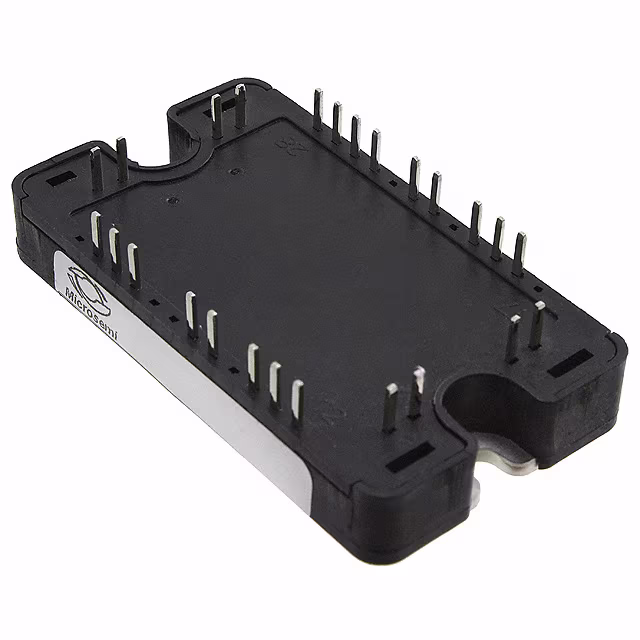

APTGF90H60T3GIGBT MODULE 600V 120A 416W SP3 |
2,054 |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 120 A | 416 W | 2.45V @ 15V, 100A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
APTGT20H60T1GIGBT MODULE 600V 32A 62W SP1 |
3,996 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APT100GN120JDQ4IGBT MOD 1200V 153A 446W ISOTOP |
8,056 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 153 A | 446 W | 2.1V @ 15V, 100A | 200 µA | 6.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APTGL90DA120T1GIGBT MODULE 1200V 110A 385W SP1 |
4,895 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Single | 1200 V | 110 A | 385 W | 2.25V @ 15V, 75A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT50DH60T1GIGBT MODULE 600V 80A 176W SP1 |
3,397 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT20TL601GIGBT MODULE 600V 32A 62W SP1 |
6,134 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|

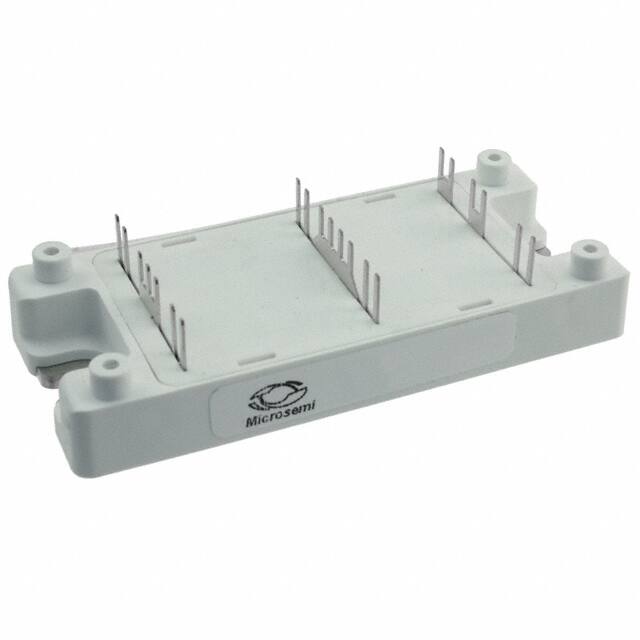

APTGF75DSK120TGIGBT MODULE 1200V 100A 500W SP4 |
6,590 |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Dual, Common Source | 1200 V | 100 A | 500 W | 3.7V @ 15V, 75A | 250 µA | 5.1 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
