IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT150A60T1GIGBT MODULE 600V 225A 480W SP1 |
2,602 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
APTGL60DDA120T3GIGBT MODULE 1200V 80A 280W SP3 |
4,266 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 1200 V | 80 A | 280 W | 2.25V @ 15V, 50A | 250 µA | 2.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGL40H120T1GIGBT MODULE 1200V 65A 220W SP1 |
4,706 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTCV40H60CT1GIGBT MODULE 600V 80A 176W SP1 |
5,673 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Full Bridge | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|

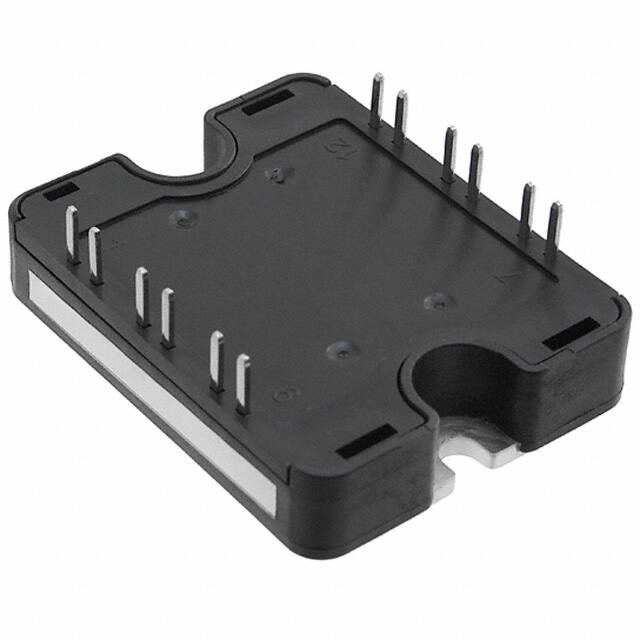

APTGT75H60T1GIGBT MODULE 600V 100A 250W SP1 |
7,312 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT30X60T3GIGBT MODULE 600V 50A 90W SP3 |
9,541 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGT50DDA120T3GIGBT MODULE 1200V 75A 270W SP3 |
7,788 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 1200 V | 75 A | 270 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT50TL60T3GIGBT MODULE 600V 80A 176W SP3 |
6,992 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGF150A120TGIGBT MODULE 1200V 200A 961W SP4 |
7,459 |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 200 A | 961 W | 3.7V @ 15V, 150A | 350 µA | 10.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APTGT75A120T1GIGBT MODULE 1200V 110A 357W SP1 |
7,219 |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
