| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT60GT60JRIGBT MODULE 600V 93A 378W ISOTOP |
6,906 |
|
Datasheet | Thunderbolt IGBT® | ISOTOP | Tube | Obsolete | NPT | Single | 600 V | 93 A | 378 W | 2.5V @ 15V, 60A | 80 µA | 1.6 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT50GT120JU2IGBT MOD 1200V 75A 347W SOT227 |
5,469 |
|
Datasheet | - | ISOTOP | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 75 A | 347 W | 2.1V @ 15V, 50A | 5 mA | 3.6 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT50GT120JU3IGBT MOD 1200V 75A 347W SOT227 |
3,091 |
|
Datasheet | - | ISOTOP | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 75 A | 347 W | 2.1V @ 15V, 50A | 5 mA | 3.6 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
APTGF50DH60T1GIGBT MODULE 600V 65A 250W SP1 |
6,038 |
|
Datasheet | - | SP1 | Bulk | Obsolete | NPT | Asymmetrical Bridge | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
APT40GL120JU3IGBT MOD 1200V 65A 220W SOT227 |
3,034 |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | Trench Field Stop | Single | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis, Stud Mount | SOT-227 |
|
|
APT40GL120JU2IGBT MOD 1200V 65A 220W SOT227 |
8,884 |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | Trench Field Stop | Single | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis, Stud Mount | SOT-227 |
|
|
APT35GT120JU2IGBT MOD 1200V 55A 260W SOT227 |
9,316 |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 55 A | 260 W | 2.1V @ 15V, 35A | 5 mA | 2.53 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT35GT120JU3IGBT MOD 1200V 55A 260W SOT227 |
9,928 |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 55 A | 260 W | 2.1V @ 15V, 35A | 5 mA | 2.53 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT100GT60JRDQ4IGBT MOD 600V 148A 500W ISOTOP |
3,514 |
|
Datasheet | Thunderbolt IGBT® | ISOTOP | Tube | Obsolete | NPT | Single | 600 V | 148 A | 500 W | 2.5V @ 15V, 100A | 50 µA | 5.15 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|

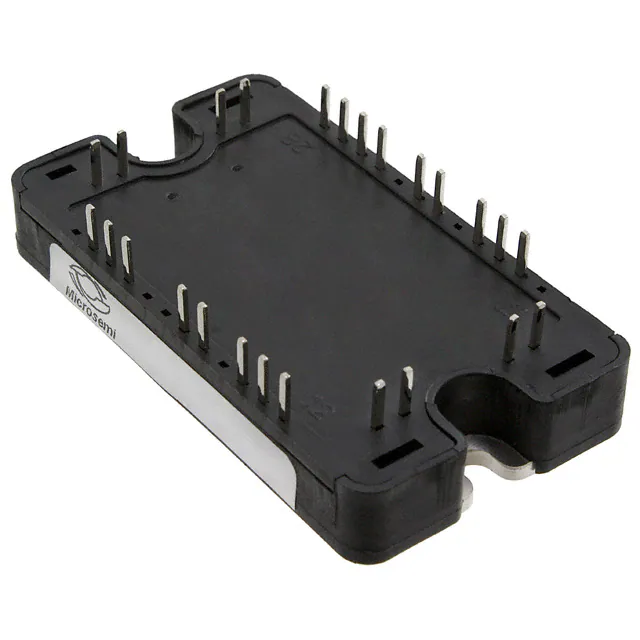

APTGF30H60T3GIGBT MODULE 600V 42A 140W SP3 |
2,118 |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 42 A | 140 W | 2.45V @ 15V, 30A | 250 µA | 1.35 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
