| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT47GA60JD40IGBT 600V 87A 283W SOT-227 |
5,649 |
|
Datasheet | POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 87 A | 283 W | 2.5V @ 15V, 47A | 275 µA | 6.32 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APT50GP60JIGBT MOD 600V 100A 329W ISOTOP |
2,965 |
|
Datasheet | POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 100 A | 329 W | 2.7V @ 15V, 50A | 500 µA | 5.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGF100DA120T1GIGBT MODULE 1200V 130A 735W SP1 |
8,493 |
|
Datasheet | - | SP1 | Bulk | Obsolete | NPT | Single | 1200 V | 130 A | 735 W | 3.7V @ 15V, 100A | 250 µA | 6.5 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
APT50GP60JDQ2IGBT MOD 600V 100A 329W ISOTOP |
4,833 |
|
Datasheet | POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 100 A | 329 W | 2.7V @ 15V, 50A | 525 µA | 5.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT150GN60JIGBT MOD 600V 220A 536W ISOTOP |
4,688 |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 220 A | 536 W | 1.85V @ 15V, 150A | 25 µA | 9.2 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGF50H60T1GIGBT MODULE 600V 65A 250W SP1 |
6,942 |
|
Datasheet | - | SP1 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
APT75GT120JU3IGBT MOD 1200V 100A 416W SOT227 |
6,054 |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 100 A | 416 W | 2.1V @ 15V, 75A | 5 mA | 5.34 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|

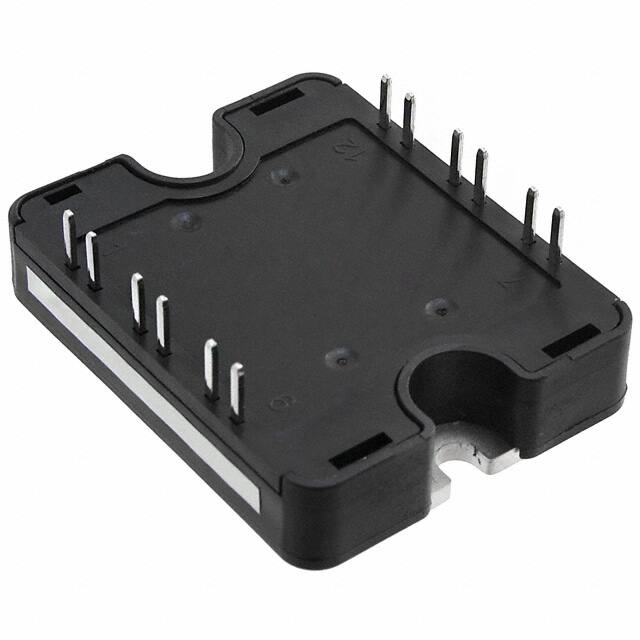

APTGF25H120T1GIGBT MODULE 1200V 40A 208W SP1 |
6,095 |
|
Datasheet | - | SP1 | Bulk | Obsolete | NPT | Full Bridge Inverter | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
APTGF50H60T3GIGBT MODULE 600V 65A 250W SP3 |
8,476 |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGF50DH120T3GIGBT MODULE 1200V 70A 312W SP3 |
3,077 |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Asymmetrical Bridge | 1200 V | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
