TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD3V3L5UF,115TVS DIODE 3.3VWM 12VC 6XSON |
4,340 |
|
Datasheet | 6-XFDFN | - | Tape & Reel (TR) | Active | Zener | 5 | - | 3.3V (Max) | 5.3V | 12V | 2.5A (8/20µs) | 25W | No | General Purpose | 22pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
GG0402050R8L2PDIODE 5VDC, 0402, 0.8PF |
6,036 |
|
Datasheet | 0402 (1005 Metric) | GiGUARD | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 8V | 13V | 7A | 100W | No | Ethernet, HDMI, USB | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 0402 |
|
SC1533-01LTG5V 15A 30KV SOD523 BI-DIR TVS |
7,161 |
|
Datasheet | SC-79, SOD-523 | SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | 10.5V (Typ) | 15A (8/20µs) | - | No | General Purpose | 25pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOD-523 |
|
SMBJ64CATVS DIODE 64VWM 103VC DO214AA |
3,692 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 64V | 71.1V | 103V | 5.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMF45ATVS SOD123FL 45V 200W UNIDIR |
7,695 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 2.8A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMBJ6.5CATVS DIODE 6.5VWM 11.2VC DO214AA |
6,992 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
CUHZ8V2,H3F8.2 V ZENER DIODE, SOD-323HE |
9,878 |
|
Datasheet | 2-SMD, Flat Leads | CUHZ | Tape & Reel (TR) | Active | Zener | 1 | - | 8.2V | 7.7V | 8.5V (Typ) | 68A (8/20µs) | 1900W (1.9kW) | No | General Purpose | 450pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | US2H |
|
PTVS24VS1UR,115TVS DIODE 24VWM 38.9VC SOD123W |
4,094 |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 10.3A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
SMF6.0ATVS SOD123FL 6V 200W UNIDIR |
100 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.4A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMF20CATVS SOD123FL 20V 200W BIDIR |
3,374 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 6.2A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF18CATVS SOD123FL 18V 200W BIDIR |
2,411 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 6.8A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF58CATVS SOD123FL 58V 200W BIDIR |
4,425 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 2.1A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMAJ60CATVS DIODE 60VWM 96.8VC SMA |
4,890 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 4.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMF22CATVS SOD123FL 22V 200W BIDIR |
9,176 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 5.6A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
AQ05-01FTGTVS DIODE 5VWM 13VC SOD323 |
3,539 |
|
Datasheet | SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | - | 13V | 30A (8/20µs) | 450W | No | CAN | 350pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
SMF9.0CATVS SOD123FL 9V 200W BIDIR |
5,211 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 9V | 10V | 15.4V | 13A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|

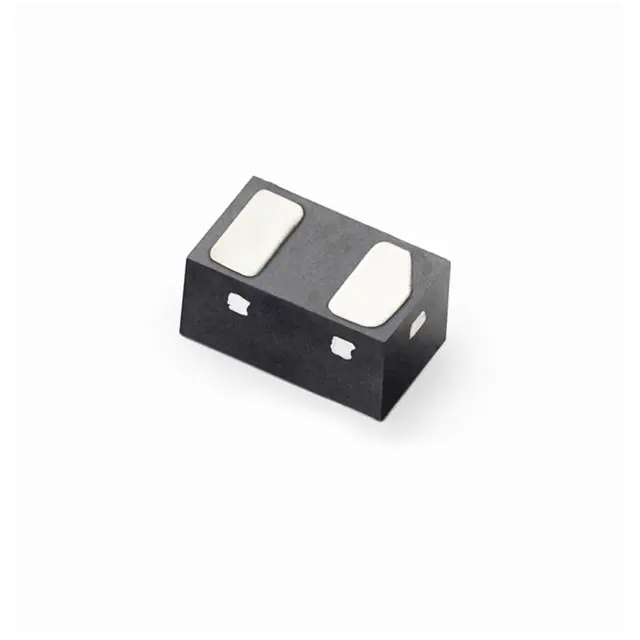

AQ1205-01ETGTVS DIODE 5V 7A AECQ SOD882 |
4,528 |
|
Datasheet | SOD-882 | SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.3V | 10V (Typ) | 7A (8/20µs) | - | No | - | 7pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
SMCJ33CA-TPTVS DIODE 33VWM 53.3VC DO214AB |
1,356 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 28.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
P6SMB43CATVS DIODE 36.8VWM 59.3VC DO214AA |
5,006 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
PTVS28VP1UP,115TVS DIODE 28VWM 45.4VC SOD128 |
9,446 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 13.2A | 600W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
