TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15KPA120CATVS DIODE 120VWM 192.3VC P600 |
6,098 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 120V | 134V | 192.3V | 78.5A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
1N6055ATVS DIODE 40VWM 64.8VC DO13 |
3,996 |
|
Datasheet | DO-13 | - | Bulk | Active | Zener | - | 1 | 40V | 44.7V | 64.8V | 23.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|
MPLAD30KP33CA/TRTVS DIODE 33VWM 53.3VC PLAD |
4,388 |
|
Datasheet | Nonstandard SMD | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 564A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | PLAD |
|
DF3A6.2LFV,L3FTVS DIODE VESM |
9,647 |
|
Datasheet | SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | - | 5.9V | - | - | - | No | General Purpose | 6.5pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VESM |
|

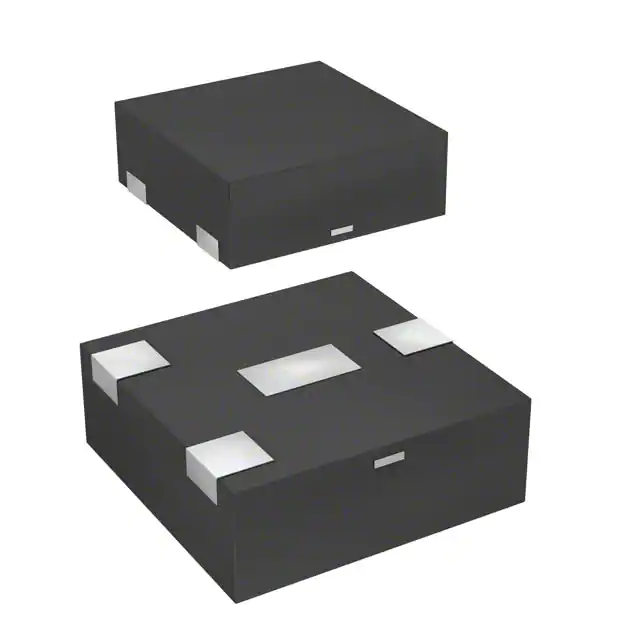

VBUS052BD-HTF-GS08TVS DIODE 5VWM 16VC 4-LLP75 |
3,740 |
|
Datasheet | 4-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.9V | 16V | 3A (8/20µs) | 45W | No | General Purpose | 1.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-LLP75 |
.jpg "SMCJ1.5KE56A-TP")
|
SMCJ1.5KE56A-TPTVS DIODE 47.8VWM 77VC DO214AB |
9,069 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 19.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
P4SMF17ATVS DIODE 17VWM 27.6VC SOD123FL |
6,404 |
|
Datasheet | SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 14.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
B74121G0200M06020VDC,0201,BI-DIR,5.3PF, 20NA@20 |
2,816 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V (Max) | 20V | 32V (Typ) | 16A | - | No | Telecom | 5.3pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | WL-CSP0201 SL |
|
|
P4SMF22CATVS DIODE 22VWM 35.5VC SOD123FL |
4,070 |
|
Datasheet | SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 11.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
SMAJ8.0CATVS DIODE 8VWM 13.6VC DO214AC |
4,334 |
|
Datasheet | DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 8V (Max) | 9.36V (Typ) | 13.6V | 29.4A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
VBUS05N1-HD1-G3-085.5V;IR=0.1UA;IP=4A;P=90W;CD=0.4 |
1,712 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 7V | 15V | 4A (8/20µs) | 60W | No | HDMI, USB | 0.7pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
STN101050BL90TVS DIODE 5VWM 12.5VC DFN1006-2L |
8,868 |
|
Datasheet | 0402 (1006 Metric) | ST | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 12.5V | 1A (8/20µs) | 30W | No | DVI, USB | 0.9pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-2L |
|
|
VESD03C1-HD1-G3-083V;IR=20UA;IP=11.6A;P=W;CD=135PF |
9,893 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3V (Max) | 4.45V | 8.7V | 11.6A (8/20µs) | 100W | No | General Purpose | 112pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
PESD8V0S1ULSYLTVS DIODE 8VWM 25.5VC 2DFN |
3,363 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 8.65V | 25.5V | 13A (8/20µs) | - | No | - | 70pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006BD-2 |
|
824520121TVS DIODE 12VWM 19.9VC DO214AA |
1,489 |
|
Datasheet | DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14V (Typ) | 19.9V | 30.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
|
824521261TVS DIODE 26VWM 42.1VC DO214AA |
1,175 |
|
Datasheet | DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 26V (Max) | 30.4V (Typ) | 42.1V | 14.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
|
824520102TVS DIODE 100VWM 162VC DO214AA |
4,860 |
|
Datasheet | DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 100V (Max) | 117V (Typ) | 162V | 3.7A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
SMAJE33CATVS DIODE 33VWM 53.3VC SMA |
8,624 |
|
Datasheet | DO-214AC, SMA | SMAJE | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ100A-E3/61TVS DIODE 100VWM 162VC DO214AC |
3,617 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 1.9A | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD5V0L1ULSYLTVS DIODE 5VWM 12VC DFN1006-2 |
3,851 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 3.5A (8/20µs) | 42W | No | Telecom | 25pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | DFN1006-2 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
