TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6467TVS DIODE 40.3VWM 63.5VC AXIAL |
7,794 |
|
Datasheet | B, Axial | - | Bulk | Active | Zener | 1 | - | 40.3V | 43.7V | 63.5V | 45A (8/20µs) | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | B, Axial |
|

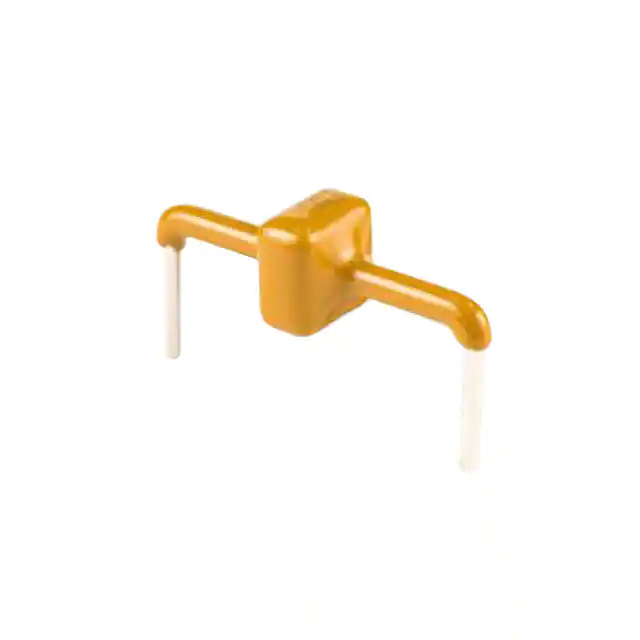

PTVS3-015C-THTVS DIODE 15VWM 28VC AXIAL |
7,498 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 15V (Max) | 16V | 28V (Typ) | 3000A (3kA) (8/20µs) | - | No | General Purpose | 7500pF @ 10kHz | -40°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
AK3-430C-YTVS DIODE 430VWM 625VC AXIAL |
4,107 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | AK3-Y | Bulk | Active | Zener | - | 1 | 430V | 440V | 625V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
PTVS3-430C-THTVS DIODE 430VWM 580VC AXIAL |
4,040 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 430V (Max) | 440V | 580V (Typ) | 3000A (3kA) (8/20µs) | - | No | General Purpose | 400pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
|
JANTX1N5555TVS DIODE 30.5VWM 47.5VC DO13 |
5,882 |
|
Datasheet | DO-202AA, DO-13, Axial | - | Bulk | Active | Zener | 1 | - | 30.5V | 33V | 47.5V | 32A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/500 | Through Hole | DO-13 (DO-202AA) |
|
AK10-380CTVS DIODE 380VWM 520VC AXIAL |
7,289 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | AK10 | Tray | Active | Zener | - | 1 | 380V | 401V | 520V | 10000A (10kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | Axial |
.jpg "PESD5Z12,115")
|
PESD5Z12,115TVS DIODE 12VWM 35VC SOD523 |
8,798 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14.1V | 35V | 6A (8/20µs) | 200W | No | Ethernet | 35pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOD-523 |
|
DF2S5.1FS,L3MTVS DIODE 1.5VWM SOD923 |
4,126 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 1.5V (Max) | 4.8V | - | - | - | No | General Purpose | 45pF @ 1MHz | - | - | - | Surface Mount | SOD-923 |
|
|
TSD05DYFRTVS DIODE 5.5VWM 9VC SOD-323 |
8,235 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6V | 9V (Typ) | 60A (8/20µs) | 530W | No | USB | 19pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | SOD-323 |
|
P6SMBJ12ATVS SMB 12V 600W UNI |
2,749 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMF5.0ATVS SOD-123FL 5V 200W UNIDIR |
2,800 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 21.74A | 200W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F (SMF) |
|
SD09CQ-7GENERAL PROTECTION PP SOD323 T&R |
3,292 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 9V (Max) | 10V | 20V | 20A (8/20µs) | 400W | No | - | 68pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
DF2B6M4CT,L3FTVS DIODE 5.5VWM 15VC CST2 |
2,424 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 5.6V | 15V | 2A (8/20µs) | 30W | No | - | 0.2pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | CST2 |
|
DF5A6.8JE,LMTVS DIODE 5VWM ESV |
6,064 |
|
Datasheet | SOT-553 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6.4V | - | - | - | No | General Purpose | 45pF @ 1MHz | - | - | - | Surface Mount | ESV |
|
PESD4V0Y1BSFYLTVS DIODE 4VWM 3.7VC DSN0603-2 |
2,442 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 4V (Max) | 4.2V | 3.7V (Typ) | - | - | No | HDMI, USB | 0.29pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
CEZ5V6,L3FTVS DIODE 5.6VWM 9VC ESC |
8,020 |
|
Datasheet | SC-79, SOD-523 | CEZ | Tape & Reel (TR) | Active | Zener | 1 | - | 5.6V | 5.3V | 9V (Typ) | 12A (8/20µs) | 155W | No | General Purpose | 125pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | ESC |
|
PJSD03TS_R1_00001SINGLE LINE TVS DIODE FOR ESD PR |
2,718 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4V | 6.5V | 5A (8/20µs) | 120W | No | General Purpose | 200pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
PESD3V3Y1BSFYLTVS DIODE 3.3VWM 3.7VC DSN0603-2 |
6,774 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.2V | 3.7V (Typ) | - | - | No | HDMI2, USB 3.2 | 0.29pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
CUZ5V6,H3FTVS DIODE 5.6VWM 9VC USC |
7,811 |
|
Datasheet | SC-76, SOD-323 | CUZ | Tape & Reel (TR) | Active | Zener | 1 | - | 5.6V | 5.3V | 9V (Typ) | 12A (8/20µs) | 155W | No | General Purpose | 125pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | USC |
|
PESD3V3Z1BSFYLTVS DIODE 3.3VWM 5.3VC DSN0603-2 |
4,637 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6.9V (Typ) | 5.3V | 9.5A (8/20µs) | - | No | - | 0.28pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
