TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ440ATVS DIODE 440VWM 713VC DO214AA |
1,222 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 440V | 492V | 713V | 1.1A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
TPSMA6L7.5ATVS DIODE 7.5VWM 12.9VC DO221AC |
6,214 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.6A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
CUHZ36V,H3F36 V ZENER DIODE, SOD-323HE |
8,732 |
|
Datasheet | 2-SMD, Flat Leads | CUHZ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 34V | 41.2V (Typ) | 23A (8/20µs) | 2100W (2.1kW) | No | General Purpose | 105pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | US2H |
|
TPSMF4L51ATVS DIODE 51VWM 82.4VC SOD123FL |
3,599 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 4.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
TPSMF4L14ATVS DIODE 14VWM 23.2VC SOD123FL |
4,813 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
AQ3522-01FTGTVS DIODE 5VWM 18VC SOD323 |
7,018 |
|
Datasheet | SC-76, SOD-323 | AQ3522, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 8.5V | 18V | 2.5A (8/20µs) | - | No | HDMI, USB | 0.15pF @ 3GHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
PESD3V3S5UD,125TVS DIODE 3.3VWM 12VC 6TSOP |
3,077 |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 3.3V (Max) | 5.3V | 12V | 20A (8/20µs) | 200W | No | General Purpose | 215pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
PESD2ETH1G-TRTVS DIODE TO236AB |
6,897 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | - | 100V | - | - | - | No | Ethernet | - | - | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
RCLAMP01811PW.C1,8V ESD & EOS PROTECTION |
3,429 |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 1.8V (Max) | - | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | 2-DFN (1x0.6) |
;;2.jpg "SMCJ20A")
|
SMCJ20ATVS DIODE 20VWM 32.4VC DO214AB |
2,456 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMBJP6KE12CA-TPTVS DIODE 10.2VWM 16.7VC DO214AA |
4,889 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 36.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
AQ4337-01ETG5V 7A 0.25F 15KV SOD882 BI-DIR T |
7,992 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 8V (Typ) | 6.5V (Typ) | 7A (8/20µs) | - | No | Ethernet, HDMI, USB | 0.25pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
1.5SMBJ30CADIO TVS VRWM 30V 1500W BIDIR SMB |
6,592 |
|
Datasheet | DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 31A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
1.5KE12CATVS D5.4X7.5 10.2V 1500W BIDIR |
6,986 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 10.2V | 11.4V | 16.7V | 90A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SZSMF24AT1GTVS DIODE 24VWM 38.9VC SOD123FL |
5,152 |
|
Datasheet | SOD-123F | SZSMF | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 5.1A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
TPSMF4L78ATVS DIODE 78VWM 126VC SOD123FL |
2,806 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
5.0SMDJ58CA/TR13TVS DIODE 58VWM 93.6VC DO214AB |
4,572 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 53.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

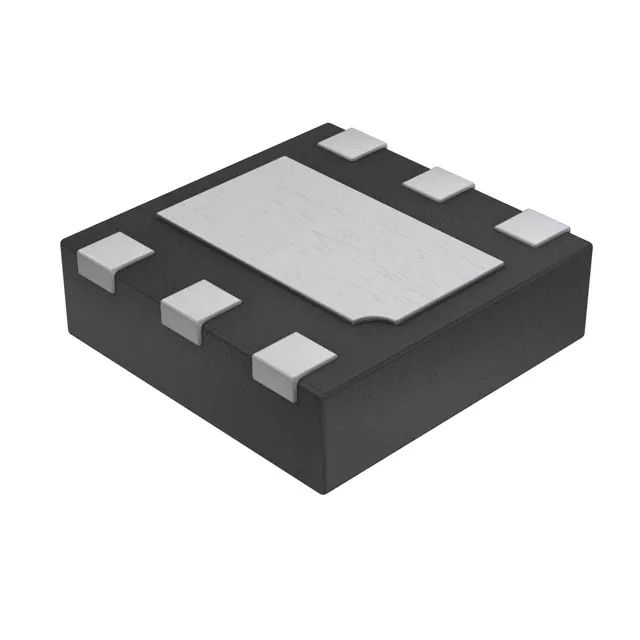

D5V0F3B6LP20-7TVS DIODE 5.5VWM 14V U-DFN2020-6 |
4,445 |
|
Datasheet | 6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | - | 3 | 5.5V (Max) | 6V | 14V | 9.5A (8/20µs) | - | No | General Purpose | 0.5pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type C) |
|
1.5KE33CA-TPTVS DIODE 28.2VWM 45.7VC DO201AE |
6,509 |
|
Datasheet | DO-201AE, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
1.5KE15CATVS D5.4X7.5 12.8V 1500W BIDIR |
3,165 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Cut Tape (CT) | Active | Zener | - | 2 | 12.8V | 14.3V | 21.2V | 71A | 1500W (1.5kW) | Yes | General Purpose | 2500pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
