TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ440ATVS DIODE 440VWM 713VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 440V | 492V | 713V | 840mA | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMCJ170ATVS DIODE 170VWM 275VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 170V | 189V | 275V | 5.45A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ170CATVS DIODE 170VWM 275VC |
170 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 170V | 189V | 275V | 5.45A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ160CATVS DIODE 160VWM 259VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 160V | 178V | 259V | 5.79A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMBJ26ATVS DIODE 26VWM 42.1VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 14.25A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMCJ120ATVS DIODE 120VWM 193VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 120V | 133V | 193V | 7.77A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMAJ350ATVS DIODE 350VWM 567VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 350V | 391V | 567V | 710mA | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ130ATVS DIODE 130VWM 209VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 130V | 144V | 209V | 7.18A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ150CATVS DIODE 150VWM 243VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 150V | 167V | 243V | 6.17A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
;;2.jpg "SMCJ85A")
|
SMCJ85ATVS DIODE 85VWM 137VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 85V | 94.4V | 137V | 10.95A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMBJ220CATVS DIODE 220VWM 356VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 220V | 246V | 356V | 1.69A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|

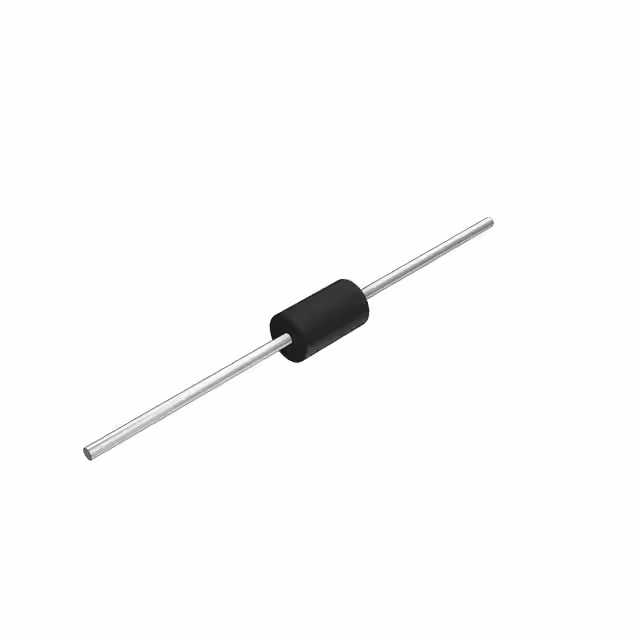

1.5KEG33AAXIAL LEADED UNI/BI-DIRECTIONAL |
580 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KEG | Tape & Box (TB) | Active | Zener | 1 | - | 28V | 31.4V | 45.7V | 32.8A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-201 |
|
|
1.5KEG6.8AAXIAL LEADED UNI/BI-DIRECTIONAL |
575 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KEG | Tape & Box (TB) | Active | Zener | 1 | - | 5.8V | 6.45V | 10.5V | 142.9A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-201 |
|
|
SMAJ120CATVS DIODE 120VWM 193VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 120V | 133V | 193V | 2.07A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ90ATVS DIODE 90VWM 146VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 90V | 100V | 146V | 10.27A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ9.0CATVS DIODE 9VWM 15.4VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ36CATVS DIODE 36VWM 58.1VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.82A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
1.5KE250ABULKTVS DIODE 214VWM 344VC DO201 |
500 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Bag | Active | Zener | 1 | - | 214V | 237V | 344V | 4.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
|
SMCJ220ATVS DIODE 220VWM 356VC |
200 |
|
Datasheet | DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 220V | 246V | 356V | 4.2A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMBJ26CATVS DIODE 26VWM 42.1VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 14.25A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
