RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2108784-25G/4G/3G/2G, NB-IOT, CAT-M, GNSS |
10,425 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.5945GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.614GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Chip | 5 | 3 | - | 4dBi, 0.98dBi, 1.93dBi, 2.3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|
2108783-1PCB ANTENNA, SMD, 617-3800MHZ |
5,006 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 780MHz, 1.515GHz, 2.2GHz, 3.55GHz | 698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | PCB Trace | 4 | 2 | - | 4.9dBi, 2dBi, 2.5dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|
AN01DL25C00R3200METAL SMD ANT 2.4/5GHZ |
2,777 |
|
Datasheet | AN01DL25C00 | Tape & Reel (TR) | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2, 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, Wi-Fi |
|
W3315B0100MHF1WIFI ANTENNA |
942 |
|
Datasheet | Internal Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|
APAE1575R1540AZDB2F-TRF ANT 1.575GHZ CER PATCH PIN |
6,982 |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.579GHz | Ceramic Patch | 1 | 1.5 | -15dB | 1.2dBic | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|
2344654-5WLAN DUAL BAND ANTENNA PCB V 50 |
6,627 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
2344655-5WLAN DUAL BAND ANTENNA PCB H 50 |
2,494 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
YP0009CAEMBEDDED CELLULAR ANTENNA |
509 |
|
Datasheet | - | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | PCB Trace | 8 | 1.96, 2.1, 2.19, 2.2, 2.31, 4.5 | - | 0.51dBi, 2.4dBi, 4.5dBi, 3.8dBi, 3.9dBi, 2.3dBi | - | Cable - 188.5mm | I-PEX MHF4 | - | - | - | Adhesive | 0.037" (0.95mm) | 6G |
|
YF0017BAEMBEDDED CELLULAR ANTENNA |
433 |
|
Datasheet | - | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Flat Patch | 8 | 1.6, 1.7, 1.9, 2, 2.1, 2.6 | - | 1.5dBi, 2.8dBi, 2.8dBi, 4.1dBi, 3.6dBi, 4.4dBi, 3dBi | - | Cable - 193mm | I-PEX MHF4 | - | - | - | Surface Mount | 0.005" (0.13mm) | 6G |
|
|
APAE1575R2540AADBE-TRF ANT 1.575GHZ CER PATCH PIN |
235 |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.569GHz ~ 1.577GHz | Ceramic Patch | 1 | 2.32 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
PRO-OB-468RF ANT 850MHZ/900MHZ STAMPED MET |
16,706 |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 850MHz, 900MHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 2 | - | -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | GSM, UMTS |
|
2195846-3FPC ANT, MHF, 150MM, 698-7125 MH |
9,542 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
|
YC0001AAPCB ANTENNA LTE SMD 35X8.5 |
1,352 |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 4 | - | 3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | LTE |
|

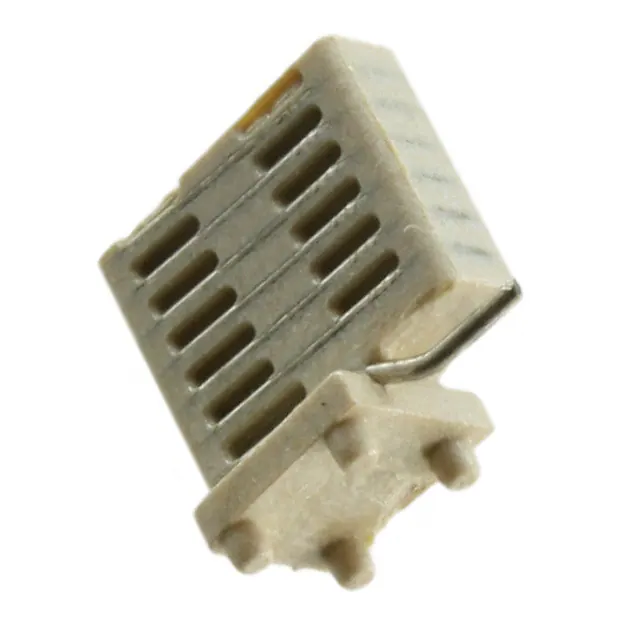

W3112ARF ANT 900MHZ HELICAL SOLDER SMD |
3,053 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Helical | 1 | - | -10dB | 0.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | - |
|
1513634-1RF ANT 1.575GHZ PUCK SOLDER SMD |
450 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Puck | 1 | 3 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | GPS |
|
|
ACG0301UUWB ANT 6.22GHZ- 8.2GHZ SMD CHIP |
2,846 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | Wide Band | 7.2GHz | 6.2GHz ~ 8.2GHz | Chip | 1 | 2 | - | - | - | Filter | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|
2118439-2RF ANT 2.44/5.387GHZ PCB TRACE |
5,662 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.387GHz | 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | - | - | - | - | Cable - 310mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.065" (1.65mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1002295RF ANT 2.4GHZ STAMPED MET SLD |
5,053 |
|
Datasheet | Prestta™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AN01ML27C00R2400METAL SMD ANT 2.4/5/6GHZ |
2,396 |
|
Datasheet | AN01ML27C00 | Tape & Reel (TR) | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Stamped Metal | 3 | 2 | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | Wi-Fi |
|
W3012RF ANT 900MHZ CHIP SOLDER SMD |
3,701 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Chip | 1 | - | -6dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
