RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2U262GKBA0100WIFI/BT 2400-2500MHZ MONOPOLE CH |
2,052 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ACAG0301-2450-TRF ANT 2.4GHZ CHIP SOLDER SMD |
2,724 |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 5.19dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ACAR0301-SW2LOW PROF DUAL BAND WIFI CHIP ANT |
4,470 |
|
Datasheet | ACAR | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Chip | 2 | 2 | -10.04dB, -10.18dB, -10.19dB, -13.79dB, -15.71dB, -18.27dB | 1dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, ISM, Wi-Fi |
|
74889502450WE-MCA SMT-MULTILAYER CHIP ANTEN |
3,242 |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | - |
|
74889402450WE-MCA SMT-MULTILAYER CHIP ANTEN |
2,142 |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | - |
|
20677400012.4/5GHZ T0.6MM ANT CORNER MOUNT |
5,221 |
|
Datasheet | 206774 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -7dB, -10dB | 1.8dBi, 1.9dBi, 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.026" (0.65mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT162442DT-2001AM2CERAMIC ANTENNA FOR 2400-2484/51 |
9,763 |
|
Datasheet | ANT | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
7488910915WE-MCA SMT-MULTILAYER CHIP ANTEN |
1,540 |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | 3 | - | 0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.146" (3.70mm) | Bluetooth, GPS, GSM, LTE, Wi-Fi, WLAN, Zigbee™ |
|
|
7488960245WE-MCA SMT-MULTILAYER CHIP ANTEN |
1,434 |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.5 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.146" (3.70mm) | Bluetooth, GPS, GSM, LTE, Wi-Fi, WLAN, Zigbee™ |
|
ANT-418-HESMRF ANT 418MHZ HELICAL SOLDER SMD |
14,584 |
|
Datasheet | HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 393MHz ~ 443MHz | Helical | 1 | 2 | - | 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.350" (8.89mm) | Alarms, ISM, Remote Control, Security Systems |
|

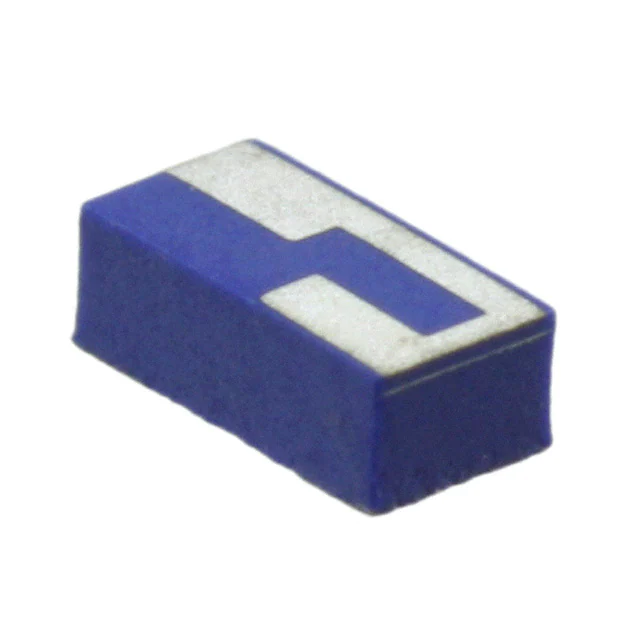

ANT3216LL15R1575ARF ANT 1.575GHZ CHIP SOLDER SMD |
3,379 |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.55GHz ~ 1.6GHz | Chip | 1 | - | -10dB | 2.01dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | GPS |
|
W3320RF ANT 868MHZ/915MHZ CHIP SLD |
3,514 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 868MHz, 915MHz, 2.4GHz | - | Chip | 3 | - | - | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | ISM |
|

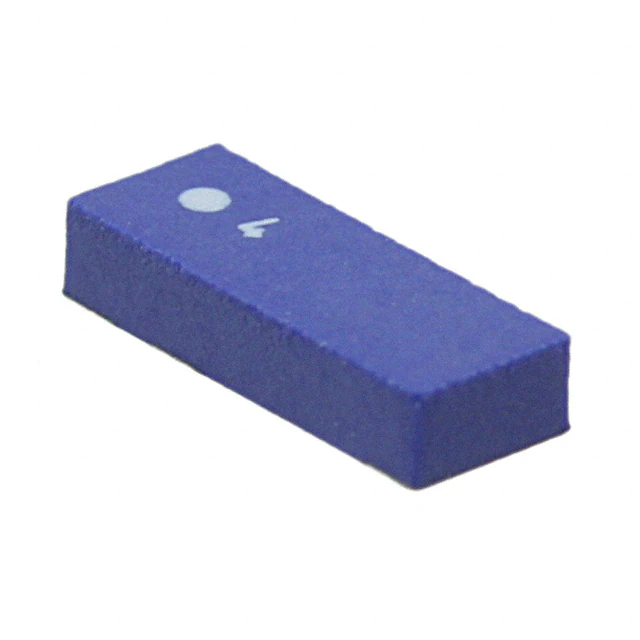

ANT5320LL24R2455ARF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
12,602 |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.39GHz ~ 2.51GHz, 4.55GHz ~ 5.45GHz | Chip | 2 | - | -10dB | 2.17dBi, 3.51dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.045" (1.15mm) | WLAN |
|
MAF94383RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
1,066 |
|
Datasheet | - | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.8dBi | - | Cable - 80mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.475" (12.06mm) | Bluetooth, WLAN |
|
ANT5320LL14R1516A5320 GPS/GLONASS/GALILEO OR GPS/ |
6,833 |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Chip | 1 | - | 10dB | 1.46dBi | 1 W | - | Solder | - | - | - | Surface Mount | - | - |
|
W3118ARF ANT 850MHZ HELICAL SOLDER SMD |
2,936 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 850MHz | 869MHz ~ 894MHz | Helical | 1 | - | -9dB | 0dBi | - | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | GSM |
|
ACAR0301-SG3RF ANT 1561~1610 MHZ CHIP SLD |
48,864 |
|
Datasheet | ACAR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.61GHz | Chip | 3 | 2 | - | 1.69dBi, -1.81dBi, 1.43dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Beidou, GLONASS, GPS |
|
MAF94149RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
195 |
|
Datasheet | - | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.8dBi | - | Cable - 80mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.475" (12.06mm) | Bluetooth, WLAN |
|
H2U1631S1A0200GNSS 1560-1606 MHZ WIDE BAND TEL |
5,478 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.154" (3.90mm) | GPS |
|
|
H2U64U1H2C0200915MHZ ISM 902-928MHZ TELA CERAM |
40,206 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Chip | 1 | 2 | - | 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM, Wi-Fi |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
