RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OMB.868.B05F21RF ANT 868MHZ WHIP STR N FEM |
385 |
|
Datasheet | - | Tube | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 43.071" (109.40cm) | - |
|
MA602.A.ABJ.002RF ANT 892MHZ/1.94GHZ DOM SMA 1M |
3,230 |
|
Datasheet | Spartan | Box | Not For New Designs | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 1.92 | -10dB | 5dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | Iridium, GLONASS, GPS |
|
MA600.A.ABC.006RF ANT 850MHZ/900MHZ DOME PNL MT |
381 |
|
Datasheet | Spartan | Box | Not For New Designs | Cellular, Navigation, WiFi | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 4.85GHz, 5.2GHz, 5.65GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 11 | 2, 1.6 | - | 2.1dBi, -0.2dBi, 2.9dBi, 3dBi, 5.1dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (3) | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | CDMA, GLONASS, GPS, GSM, HSPA, UMTS, Wi-Fi |
|
YG0063AAGEOMATRICAL L1/L2/L5 EXTERNAL AN |
258 |
|
Datasheet | - | Bulk | Active | Navigation | - | - | - | Dome | 1 | - | - | - | - | - | TNC Female | - | - | - | Screw | 2.677" (68.00mm) | Galileo, GLONASS, GNSS, GPS |
|
MA952.A.LBIVW.0015IN1 GUARDIAN 3M:GNSS RG-174 :LT |
4,783 |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz | Module | 13 | 2, 2, 2 | - | 1.42dBi, 1.28dBi, 3.56dBi, 3.24dBi, 3.55dBi, 3.21dBi, 3.21dBi, 3.11dBi, 3.06dBi, 3.84dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
|
GPS-TMG-40NCSRF ANT 1.575GHZ DOME N TYP F POL |
2,354 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | GNSS, GPS |
|
GPSGL-TMG-SPI-40NRF ANT 1.575GHZ/1.6085GHZ DOME |
1,261 |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6085GHz | 1.565GHz ~ 1.585GHz, 1.602GHz ~ 1.615GHz | Dome | 2 | 1.5 | - | 3.5dBic, 3dBic | - | - | - | - | - | - | Panel Mount | 7.244" (184.00mm) | Galileo, GLONASS, GPS |
|
|
GPS-TMG-40NMSRF ANT GPS 40DB NF BRKT DOME |
3,455 |
|
Datasheet | Timing Ref | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 40dBi | - | LNA, Filter | N Type Female | IP67 | - | - | Bracket Mount, Through Hole | 4.961" (126.00mm) | GPS |
|
OMB.915.B08F21915MHZ 8DBI OMNI ANTENNA WITH N |
2,696 |
|
Datasheet | - | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 58.032" (147.40cm) | ISM |
|
MA761.B.BICG.003RF ANT DOME SMA MALE PAN MT 3M |
239 |
|
Datasheet | Pantheon | Box | Active | Cellular, WiFi | Wide Band | - | - | Dome | 5 | - | -6dB | 2.4dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.327" (84.50mm) | LTE, Wi-Fi |
|
OMB.868.A10F21868MHZ 10DBI ANTENNA |
3,115 |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 10dBi | 50 W | - | N Type Female | IP67 | - | - | Bracket Mount | 88.189" (224.00cm) | ISM |
|
|
ADFGP.60A.01.0150DACTIVE ALL BAND GNSS HIGH PRECIS |
3,024 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.227GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 6 | 2 | - | 1.3dBi, 1.8dBi, -1.3dBi, 4.1dBi, 4.4dBi, 3.7dBi | - | Cable - 150mm, LNA, Filter | SMA Male | - | - | - | Chassis Mount | 0.752" (19.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
A09-F5NF-MRF ANT 900MHZ WHIP STR N FEM 25" |
1,817 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 5.1dBi | - | - | N Type Female | - | - | - | Bracket Mount | 25.000" (635.00mm) | - |
|
MA1505.AK.0015IN1 GNSS 5G WIFI ANTENNA |
110 |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz | Module | 13 | 2, 2.5 | - | -0.08dBi, 1.04dBi, 2.03dBi, 3.76dBi, 31.7dBic, 32.4dBic, 32.4dBic, 4.55dBi, 1.4dBi, 4.96dBi, 5.82dBi, 2.55dBi, 5.89dBi | 2 W | Cable - 300mm, LNA, Filter | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 2.263" (57.47mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
ANT-W63-MSA-TH1ANT WIFI6 2.4/5/6GHZ STAMPD TH |
6,154 |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Stamped Metal | 3 | 1.9, 2.9, 3.2 | - | 3.5dBi, 3.8dBi, 3.8dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.728" (18.50mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT3216LL11R2455AANTENNA CHIP 2.5/5G PIFA-C |
2,617 |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | - | Chip | 2 | - | 6.5dB | 0.45dBi, 0.64dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | 4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

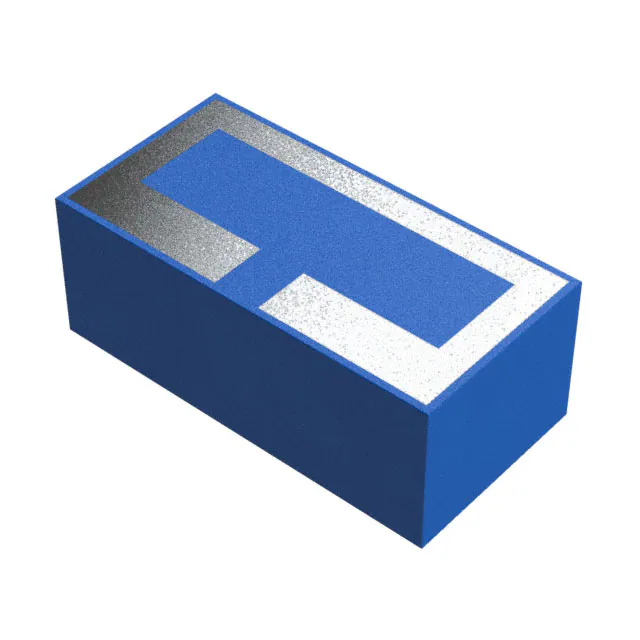

ANT3216LL11R2400ARF ANT 2.45GHZ CER PATCH SLDR |
6,721 |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | 6.5dB | 3.68dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
H2UB4K1H1B0100WIFI/BT 2400-2500MHZ TELA CERAMI |
10,850 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.5 | - | -0.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.012" (0.30mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
5400AT18A1000001ERF ANT 5.4GHZ CHIP SOLDER SMD |
5,715 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Chip | 1 | - | -8.5dB | 2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | - |
|
|
H2U36D1K1B0300WIFI/BT 2400-2500 MHZ MONOPOLE C |
2,950 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
