RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2U64U1H2B0200868MHZ ISM 863-870MHZ TELA CERAM |
9,440 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Chip | 1 | 2 | - | 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM |
.jpg "W3211")
|
W3211ANT CER 902-928MHZ 10X3.2X5MM |
1,297 |
|
Datasheet | Chip Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | - | -3dB, -10dB | 1.35dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | ISM |
|
H2UB6D1K1B0100PILLAR CHIP ANTENNA WIFI/BT 2400 |
16,895 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | -0.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM, Wi-Fi, Zigbee™ |
|
EBL2400A1-10MH4LRF ANT 2.45GHZ IPEX SMD 100MM |
1,758 |
|
Datasheet | - | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 2.5 | - | 2dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.032" (0.81mm) | Bluetooth, 802.11a/b/g |
|
74889102450WE-MCA SMT-MULTILAYER CHIP ANTEN |
4,736 |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | - |
|
ANT5320LL04R2455ARF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
15,668 |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.375GHz ~ 2.525GHz, 5.05GHz ~ 5.95GHz | Chip | 2 | - | -6.5dB | 2.09dBi, 4.32dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.055" (1.40mm) | Wi-Fi |
|
ACR0301UUWB ANT 6.24GHZ- 8.5GHZ SMD CHIP |
317 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 7.37GHz | 6.24GHz ~ 8.5GHz | Chip | 1 | 2 | - | 4.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|
W3000RF ANT 868MHZ/1.575GHZ CHIP SLD |
1,475 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 868MHz, 1.575GHz, 2.4GHz | 858MHz ~ 878MHz, 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.483GHz | Chip | 3 | - | -10dB, -12dB, -12dB | -1.4dBi, 2dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|
2108792-6FPC ANT, MHF 4L, 50MM, WI-FI 6E |
4,004 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

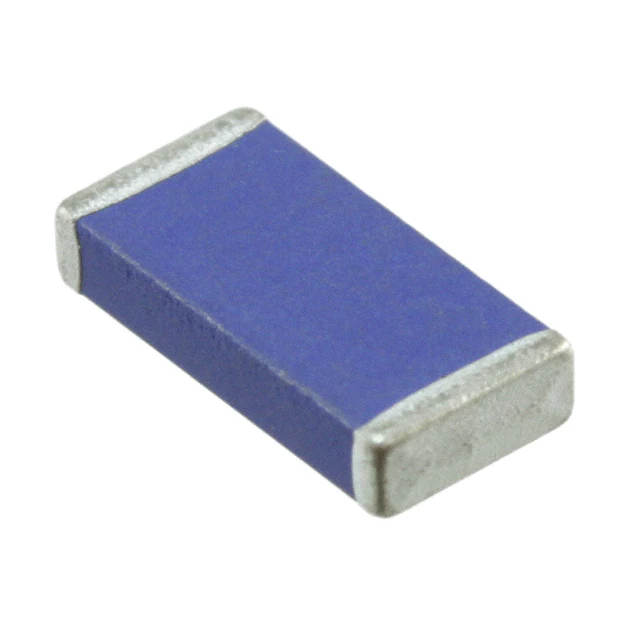

ANT6230LL01R1575ARF ANT 1.575GHZ CHIP SOLDER SMD |
1,750 |
|
Datasheet | 6230 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.548GHz ~ 1.602GHz | Chip | 1 | - | -10dB | 2.52dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | GPS |
|
|
YF0023AAFLEX PCB ANTENN WIFI 6 100MM UFL |
3,310 |
|
Datasheet | - | Bulk | Not For New Designs | Cellular, WiFi | Wide Band | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -8.8dB | 5dBi, 5dBi, 5dBi | - | - | - | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
W3073RF ANT 850MHZ/900MHZ CHIP SLD |
1,259 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, General ISM | Wide Band | 859MHz, 1.8GHz, 1.9GHz, 2.05GHz | 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz | Chip | 4 | - | -4.7dB, -3.5dB, -5.9dB, -3.3dB | 0.4dBi, 2.3dBi, 2.5dBi, 2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GSM, PCS, WCDMA |
|
21199601005.9GHZ FLEXIBLE ANTENNA WITH CAB |
12,015 |
|
Datasheet | 211996 | Tray | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | PCB Trace | 1 | - | -10dB | 5.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.16mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ACAG0301-24505500-TRF ANT 2.4GHZ/5.5GHZ CHIP SLD |
14,052 |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -7dB, -7dB | 2.23dBi, 4.05dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi |
|
ANT-868-VHETHRF ANT 868MHZ MON HELICAL SLD TH |
520 |
|
Datasheet | VHETH | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 2.7 | -6.8dB | -0.7dBi | 15 W | - | Solder | - | - | - | Through Hole | 0.280" (7.00mm) | ISM, LoRaWAN |
|
|
W3961B0050ANT CBRS FPC 3550-3980MHZ 50MM |
949 |
|
Datasheet | W3961XXXXX | Bag | Active | - | UHF (3GHz ~ 4GHz) | 3.765GHz | 3.55GHz ~ 3.98GHz | PCB Trace | 1 | - | 10dB | 4.5dBi | 3 W | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
|
|
W3961B0100ANT CBRS FPC 3550-3980MHZ 100MM |
947 |
|
Datasheet | W3961XXXXX | Bag | Active | - | UHF (3GHz ~ 4GHz) | 3.765GHz | 3.55GHz ~ 3.98GHz | PCB Trace | 1 | - | 10dB | 4.5dBi | 3 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
|
2108851-1CHIP ANT., SMD, UWB 5900-8300MHZ |
3,283 |
|
Datasheet | - | Tape & Reel (TR) | Active | UWB | SHF (f > 4GHz) | 7.1GHz | 5.9GHz ~ 8.3GHz | Chip | 2 | 2.1 | - | 4.1dB | - | - | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|
|
H2UJ6V1A2A0100GNSS 1560-1606 MHZ WIDE BAND TEL |
6,004 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.583GHz | 1.56GHz ~ 1.606GHz | Chip | 1 | 2 | - | 2.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Galileo, GLONASS, GNSS, GPS |
|
2195852-1PCB ANT, 5G-2G CAT-M, WORLD BAND |
4,643 |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz | 698MHz ~ 960MHz, 1.42GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 6 | 3 | - | 4.5dBi | - | - | PCB | - | - | - | Through Hole | 0.062" (1.58mm) | 4G, LTE, GNSS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
