RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2344656-7WLAN DUAL BAND ANTENNA FPC V 150 |
602 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
YCGS006AACERAMIC ANTENNA,GNSS,SMD,25*25*4 |
2,166 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.583GHz | 1.56GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GNSS, LTE |
|
|
W3136ANTENNA HELIX SMT 860-930MHZ |
2,149 |
|
Datasheet | SMD Helical Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | Helical | 2 | 2.5 | - | 2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.346" (8.78mm) | ISM |
|
APAE1575R1840BADB1F-TRF ANT 1.575GHZ CER PATCH PIN |
1,111 |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.557GHz ~ 1.563GHz | Ceramic Patch | 1 | 1.5 | - | 3.3dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
2344657-8WLAN DUAL BAND ANTENNA FPC H 200 |
3,020 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
1513164-1RF ANT 2.4GHZ/5.5GHZ MOLDED SLD |
2,309 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | Molded | 2 | 2.5 | - | 4dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | Bluetooth, WLAN, Zigbee™ |
|
|
1582AT54A0045001E1.585GHZ GLOBAL NAVIGATION (GPS, |
1,947 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.56GHz ~ 1.605GHz | Chip | 1 | - | 9.5dB | 1.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-W63RPC1-100RF ANT WIFI 6GHZ FLEX ADHE 100MM |
178 |
|
Datasheet | W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 100mm | Solder | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
2195728-1LTE + GNSS ANTENNA |
1,500 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 1.544GHz, 2.205GHz | 698MHz ~ 960MHz, 1.427GHz ~ 1.661GHz, 1.71MHz ~ 2.7GHz | PCB Trace | 3 | 2.5 | - | 2.3dBi, 2.3dBi, 2.3dBi | - | - | - | - | - | - | Surface Mount | 0.062" (1.58mm) | 2G, 3G, 4G, 5G, GNSS, LTE, UMTS, WCDMA |
|
W3544ARF ANT 850MHZ/900MHZ CHIP SLD |
893 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -4.1dB, -4.6dB, -16.3dB, -12.3dB | -1.9dBi, -1.3dBi, -1.3dBi, -1.66dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GSM |
|
ANT2525B00BT1575SRF ANT 1.575GHZ CER PATCH SLD |
800 |
|
Datasheet | 2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.59GHz | Ceramic Patch | 1 | 1.5 | -34.626dB | 5.5dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
2195846-5FPC ANT, MHF4L, 50MM, 698-7125 M |
665 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 50mm | MHF4L | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
ANT2525B00DTGNSSSANTENNA PATCH GNSS |
255 |
|
Datasheet | 2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 1 | 2 | - | 5.16dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, GLONASS, GNSS, GPS |
|
2344655-1WLAN DUAL BAND ANTENNA PCB H 50M |
849 |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
W3920B0100RF ANT 5.4GHZ FLAT PATCH CAB ADH |
1,428 |
|
Datasheet | - | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.925GHz | Flat Patch | 1 | 2 | - | 3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|
2344654-1WLAN DUAL BAND ANTENNA PCB V 50M |
567 |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
AN010860C00R1700METAL SMD ANT 860MHZ |
1,268 |
|
Datasheet | AN010860C00 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Stamped Metal | 1 | 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.075" (1.90mm) | General Purpose |
|
AN010920C00R1700METAL SMD ANT 920MHZ |
1,005 |
|
Datasheet | AN010920C00 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Stamped Metal | 1 | 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.075" (1.90mm) | General Purpose |
|

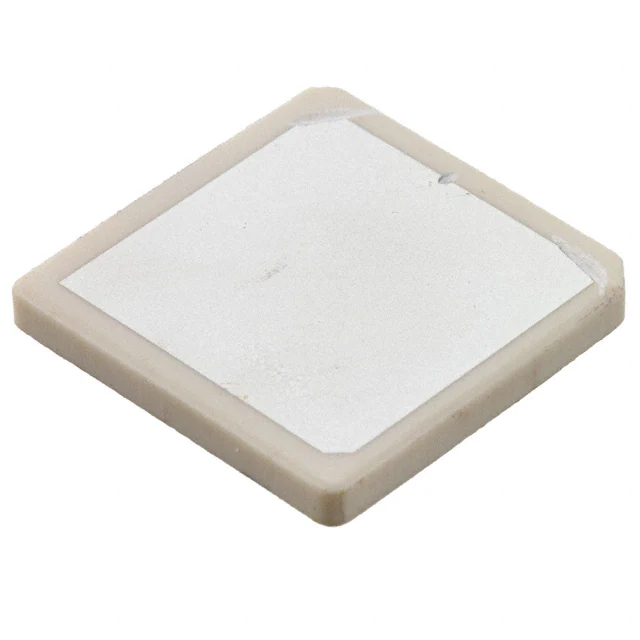

ANT1818B00AT1575SRF ANT 1.6GHZ CER PATCH SOLDER |
750 |
|
Datasheet | 1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.577GHz ~ 1.583GHz | Ceramic Patch | 1 | 2 | -10dB | 2dBic | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|
ANT-W63-FPC-SH100UFANT WIFI6 FPC 25X20 100MM UFL |
1,905 |
|
Datasheet | ANT-W63-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6, 1.8 | - | 4.7dBi, 7.8dBi, 8.5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
