RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMO150/450/800TRI-BAND, 2.14 DBI, 150-165/450- |
4,053 |
|
Datasheet | - | Bag | Active | - | Wide Band | 157.5MHz, 460MHz, 873MHz | 150MHz ~ 165MHz, 450MHz ~ 470MHz, 806MHz ~ 940MHz | Whip, Straight | 3 | - | - | 2.14dBi | 100 W | - | NMO | - | - | - | Magnetic | 16.500" (419.10mm) | - |
|
3977DRF ANT GPS 28DB TNCF LP |
4,589 |
|
Datasheet | Permanent | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | - | - | 28dBi | - | LNA, Filter | TNC Female | IP67 | - | - | Bracket Mount, Through Hole | 0.827" (21.00mm) | GPS |
|
AA.180.501111AA.180.501111 MAGNETIC MOUNT DUA |
4,838 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | Module | 3 | 2 | 10dB | 3.31dBi, 2.71dBi, 1.08dBi | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GPS |
|
G35.A.305111IDAS LTE MIMO CEILING MOUNT ANTE |
127 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 752MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Dome | 7 | - | -4dB, -10dB, -6dB, -7dB, -6dB, -6dB, -4dB | 1.32dBi, 2.05dBi, 1.88dBi, 3.83dBi, 4.67dBi, 4.89dBi, 4.91dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Screw Mount | 0.685" (17.40mm) | LTE |
|
|
TRAB24-49003RF ANT 2.4GHZ/4.9GHZ DOME NMO |
4,374 |
|
Datasheet | Phantom® | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Dome | 2 | 2, 3 | - | 0.7dBi, 0.6dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.299" (58.40mm) | WLAN |
|
NMO150/450/800SFANTENNA TRIBAND 150/450/800MHZ |
181 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 157.5MHz, 460MHz, 873MHz | 150MHz ~ 165MHz, 450MHz ~ 470MHz, 806MHz ~ 940MHz | Whip, Straight | 3 | - | - | 2.14dBi | 100 W | - | NMO | - | - | - | Magnetic | 16.500" (419.10mm) | General Purpose |
|
FTRA6971M5PW-001OMNI PH PMT 698-7125MHZ WHT 5 DB |
4,553 |
|
Datasheet | On-Ground Plane | Box | Active | Cellular | Wide Band | 829MHz, 1.561GHz, 2.1975GHz, 3.75GHz, 5.2GHz, 6.5625GHz | 698MHz ~ 960MHz, 1.427GHz ~ 1.695GHz, 1.695GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 6GHz, 6GHz ~ 7.125GHz | Dome | 6 | 2, 2.7, 2, 1.5, 1.5, 1.5 | - | 4dBi, 4.5dBi, 5.5dBi, 5.5dBi, 5.5dBi, 5.5dBi | 100 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.307" (84.00mm) | 5G |
|
MA111.C.LB.001RF ANT 850MHZ/900MHZ DOME PNL MT |
2,242 |
|
Datasheet | Ultima | Bag | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz | Dome | 7 | 2.5, 2, 2, 3.5, 3, 3 | - | 1.5dBi, 3dBi, -1.4dB, -1.3dBi, 2dBi, 4dBi, 2.5dBi | - | Cable - 3m, LNA, Filter | SMA Male (2) | IP67 | - | - | Panel Mount | 0.772" (19.60mm) | CDMA, GLONASS, GPS, GSM, UMTS |
|
OSCAR40/5M/LL/SMAM/S/S/33RF ANT 880MHZ/2.2GHZ WHIP STR |
433 |
|
Datasheet | OSCAR 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | - | 433MHz ~ 5.8GHz | Whip, Straight | 2 | 1.5 | - | 5.5dBi | - | - | SMA Male | - | - | - | Pole Mount, Wall Mount | 9.449" (240.00mm) | 802.11n/ac/ax, Bluetooth, LoRa, NB-IOT, Wi-Fi, WLAN, Sigfox, Zigbee™ |
|
2165891000MOLEX MULTI-HUB ANTENNA |
4,102 |
|
Datasheet | 216589 | Tray | Active | WiFi | Wide Band | 829MHz, 1.581GHz, 1.6GHz, 2.2GHz, 2.45GHz, 4.15GHz, 5.5GHz | 698MHz ~ 960MHz, 1.5GHz ~ 1.7GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5GHz ~ 6GHz | - | 7 | - | -5dB | - | - | Cable - 1m | SMA Male (5) | IP66 | - | - | Adhesive | 0.866" (22.00mm) | GNSS, GPS, LTE, Wi-Fi |
|
GPS-NMORF ANT 1.575GHZ DOME NMO NMO MNT |
1,381 |
|
Datasheet | GPS-NMO | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | - | - | 1dBic | - | LNA | NMO | - | - | - | NMO Mount | 1.811" (46.00mm) | GNSS, GPS |
|
|
ANT-GNRM-L12A-3ANTENNA, REMOTE ACTIVE CERAMIC P |
4,335 |
|
Datasheet | GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.202GHz, 1.207GHz, 1.228GHz, 1.246GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Module | 9 | 1.1, 1.2, 1.5, 1.6, 1.7 | -11.6dB, -13.3dB, -14.4dB, -19.2dB, -25dB | 25dBi, 25dBi, 27.4dBi, 23.4dBi, 23.4dBi, 28.4dBi, 32.4dBi, 32.2dBi, 32.2dBi | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MYA4503RF ANT 460MHZ YAGI S0239 BRKT |
4,602 |
|
Datasheet | MYA | Box | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Yagi, 3-Element | 1 | 1.5 | - | 9.2dBi | 300 W | - | SO239 | - | - | - | Bracket Mount | 23.000" (584.20mm) | - |
|
|
YEMX425J1AANTENNA |
4,012 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 440MHz, 1.653GHz, 4.65GHz | 410MHz ~ 470MHz, 617GHz ~ 2.69GHz, 3.3GHz ~ 6GHz | Dome | 3 | - | - | - | - | Cable - 450mm | SMA Male | IP67, IP69K | - | - | Pole, Wall Mount | 5.906" (150.00mm) | 2G, 3G, 4G, 5G |
|

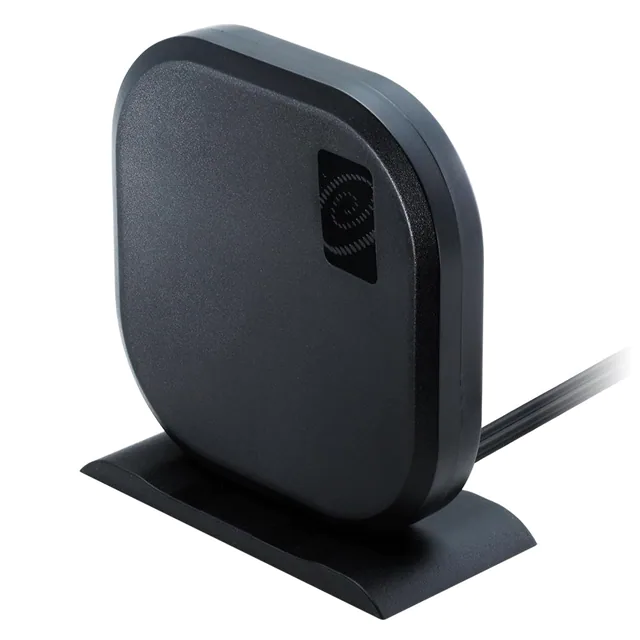

LMA101.A.BI.001RF ANT 829MHZ/2.2GHZ MOD SMA MAL |
134 |
|
Datasheet | GEMINI | Box | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 2 | - | - | 5.1dBi | - | - | SMA Male | IP67 | - | - | Magnetic, Chassis Mount | 1.437" (36.50mm) | LTE |
|
|
NMO150/450/758ANT,TRIBND,150&450&748MHZ,NMO |
109 |
|
Datasheet | - | Bag | Active | - | Wide Band | 162MHz, 475MHz, 810MHz | 150MHz ~ 174MHz, 430MHz ~ 520MHz, 750MHz ~ 870MHz | Whip, Straight | 3 | 2, 2.5 | - | 0dBi, 5dBi, 4dBi | 100 W | - | NMO | IP67 | - | - | Magnetic | 17.815" (452.50mm) | - |
|
IS.01.B.305111RF ANT 430MHZ DOME SMA MALE PAN |
3,511 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 430MHz | 400MHz ~ 460MHz | Dome | 1 | 1.8 | - | 1.6dBi | 5 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | - |
|
TLS.90.205111SHOCKWAVE 868/915MHZ TERMINAL RO |
1,672 |
|
Datasheet | - | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 850MHz ~ 880MHz, 902MHz ~ 928MHz | Dome | 2 | - | -20dB | 1.67dBi, 1.58dBi, 1.57dBi, 1.61dBi, 1.9dBi, 2.46dBi | 100 W | Cable - 2m | SMA Male | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | ISM |
|
|
TS.16.0111GPS/GLONASS/GALILEO/BEIDOU ACTIV |
3,123 |
|
Datasheet | - | Bag | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.603GHz | - | Module | 3 | 2 | - | 1.19dBi, 2.29dBi, 1.4dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Surface Mount | 2.362" (60.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
IS.04.B.301111RF ANT 869MHZ DOME SMA MALE PAN |
4,914 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | Dome | 1 | 2.5 | -21.93dB | 2.09dBi | 10 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
