RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALA.01.07.0095ARF ANT 1.575GHZ PCB TRACE IPEX |
232 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.54GHz ~ 1.61GHz | PCB Trace | 1 | 2 | -10dB | 3.1dBi | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Chassis Mount | 0.020" (0.50mm) | GPS |
|
TD.95.6H31G868/915MHZ DIPOLE ANTENNA N-TYPE |
104 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Blade | 2 | - | - | 1.33dBi, 1.54dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 8.976" (228.00mm) | ISM, LoRa, Sigfox |
|
ISPC.91A.09.0092ERF ANT 915MHZ CER PATCH MMCX ML |
202 |
|
Datasheet | - | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Ceramic Patch | 1 | - | -9.7dB | 5.21dBi | 5 W | - | MMCX Male | - | - | - | - | 0.256" (6.50mm) | - |
|
S171AH-2450SRF ANT 2.4GHZ WHIP TILT RP-SMA |
245 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 10.551" (268.00mm) | - |
|

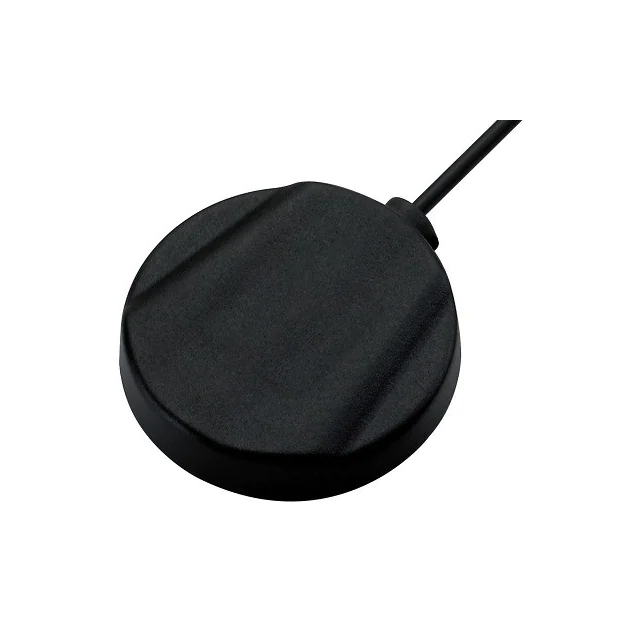

WA.500W.301151RF ANT 2.4GHZ/5.8GHZ MODULE ADH |
108 |
|
Datasheet | Stingray | Bag | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Module | 2 | 1.92 | - | 5.382dBi, 4.308dBi | - | Cable - 3m | RP-SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | Wi-Fi, Zigbee™ |
|
ANT-GNCP-C357L160RF ANT GNSS GPS L1 37X37 LNA UFL |
161 |
|
Datasheet | GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 3 | 1.5, 1.7, 1.3 | -14dB, -11.7dB, -18.5dB | 24.6dBi, 29.2dBi, 28.5dBi | - | Cable - 60mm | U.FL | - | - | - | Surface Mount | 0.272" (6.90mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
ANT-2.4-ID-2000-SMARF ANT 2.4GHZ WHIP STR BRKT 2M |
190 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 3dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Bracket Mount | 4.110" (104.40mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
TD.66.AH31BLADE WIDEBAND 600-6000MHZ 5G/4G |
108 |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | 1.8dBi, 1.6dBi, 2.6dBi, 3.9dBi, 2.5dBi, 3.9dBi, 4.4dBi, 5.4dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 9.016" (229.00mm) | 4G, 5G, Cat-M, HSPA, HSPA+, LTE, NB-IoT, NR, WCDMA, Wi-Fi |
|
|
ANT-916-ID-2000-SMARF ANT 916MHZ WHIP STR BRKT 2M |
145 |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 945MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
2118879-2FPC ANTENNA,CABLE,SMA,690-2700MH |
727 |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular, General ISM | Wide Band | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 8 | 3 | - | 3.9dBi | - | Cable - 120mm | SMA | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ |
|
AGGP.35F.07.0060ARF ANT 1.575GHZ CER PATCH MHF1 |
282 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.61GHz | Ceramic Patch | 1 | 2 | - | 1dBic, 0.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.146" (3.70mm) | GLONASS, GNSS, GPS |
|
AGGBP.SLS.35A.07.0060A2 IN 1 PERMANENT MOUNT GPS (1M R |
563 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.79dBi, 2.23dBi, 1.32dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.339" (8.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
2134993000GNSS EXT ANTENNA MAG MNT 3.0M CA |
169 |
|
Datasheet | 213499 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Module | 3 | - | -10dB | -1.7dBi, -0.4dBi, -1.4dBi | - | Cable - 3m | SMA Male | - | - | - | Magnetic | 0.657" (16.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TANGO21/0.3M/SMAM/S/S/26RF ANT 1.575GHZ MOD SMA PAN MT |
436 |
|
Datasheet | TANGO 21 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 28dB | - | LNA | SMA Male | - | - | - | Panel Mount | 0.547" (13.90mm) | GPS |
|
21350005002-IN-1 LTE / GPS EXT ANTENNA 500 |
364 |
|
Datasheet | 213500 | Box | Active | Cellular, Navigation | Wide Band | 892MHz, 1.575GHz, 2.2GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.69GHz | Module | 3 | - | -5dB, 1.5dB | 0.77dBi, 0.77dBi, 3.73dBi | - | Cable - 500mm | SMA Male (2) | - | - | - | Adhesive, Panel Mount | 0.587" (14.90mm) | LTE, GPS |
|
AEACBK081014-S6984G/ LTE SCREW MOUNT ANTENNA |
293 |
|
Datasheet | AEAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Dome | 2 | 3 | - | 3dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Screw Mount | 0.575" (14.60mm) | 2G, 3G, 4G, LTE |
|
A24-HASM-525RF ANT 2.4GHZ WHP TILT RP-SMA 6" |
351 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 2.1dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 5.394" (137.00mm) | - |
|
ANT-GNCP-C25L15100RF ANT GNSS GPS L1L5 25X25 LNA |
159 |
|
Datasheet | GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.164GHz ~ 1.189GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 4 | 1.8, 1.3, 1.3, 1.2 | -11.2dB, -18.1dB, -18.1dB, -20.7dB | 26.8dBi, 25.3dBi, 26.6dBi, 24.4dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
|
MA322.A.001COMET 2-IN-1 2*5G/4G MIMO ADHES |
242 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 3.55GHz, 3.75GHz, 4.7GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 10 | - | - | 1.1dBi, 2dBi, 2.2dBi, -0.4dBi, 4.6dBi, 4.2dBi, 1.8dBi, 2.4dBi, 4dBi, 4.6dBi | 2 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.709" (18.00mm) | 4G, 5G, HSPA, HSPA+, LTE, NR, WCDMA |
|
ISA.05.A.033822RF ANT 915MHZ MOD IPEX MHFHT ADH |
1,035 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | 3 | -11dB | 5.1dBi | 5 W | - | I-PEX MHFHT | IP65 | - | - | Adhesive | 0.433" (11.00mm) | ISM |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
