RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WM.90.A305111RF ANT 748MHZ/892MHZ WHIP STR |
4,189 |
|
Datasheet | - | Box | Active | - | Wide Band | 748MHz, 892MHz, 1.9GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.57GHz ~ 2.69GHz | Whip, Straight | 4 | - | -3dB, -6dB, -6dB, -6dB | -2.75dBi, 2.02dBi, 5.09dBi, 4.65dBi | 2 W | - | SMA Male | IP67 | - | - | Bracket Mount | 9.764" (248.00mm) | - |
|
SXP.18.4.A.02SDARS 2320 2345MHZ DUAL-BAND XM |
3,449 |
|
Datasheet | - | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.32625GHz, 2.3325GHz, 2.33875GHz | 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz | Ceramic Patch | 3 | - | -10dB | 8dBic, 9.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
PC23.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,532 |
|
Datasheet | - | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
FXUWB20.01.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
2,989 |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2, 2.2, 3 | - | 4.2dBi, 5.8dBi, 6.6dBi | 10 W | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
TG.22.0222RF ANT 850MHZ/900MHZ WHIP RA |
2,321 |
|
Datasheet | - | Bag | Not For New Designs | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | 3, 2, 2, 2, 3 | -5dB, -10dB, -10dB, -10dB, -5dB | -0.37dBi, -0.13dBi, 3.35dBi, 4dBi, 4.08dBi | 5 W | - | FME Female | - | - | - | Connector Mount | 1.772" (45.00mm) | DCS, GSM, PCS, WCDMA |
|
FXUB85.54.0150CULTRA WIDE BAND FLEX ANTENNA 600 |
4,894 |
|
Datasheet | Pylon | Bulk | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 7 | - | -6dB, -7dB, -8dB, -11dB, -15dB | 2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.012" (0.30mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
PC30.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
4,371 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 5 | 2, 2.3, 0.5, 2.3, 2.2 | -18dB, -18dB, -12dB, -16dB, -12dB | 0.8dBi, -1dBi, 0dBi, 0.9dBi, 2dBi | 10 W | Cable - 100mm | MMCX Male | - | - | - | Bracket Mount | 0.031" (0.80mm) | CLR, DCS, GSM, PCS, UMTS |
|
TD.10.5113TD.10 TRITON 5DBI DSRC 5.9GHZ DI |
4,356 |
|
Datasheet | - | Bag | Active | General ISM | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | Whip, Tilt | 1 | 2 | -10dB | 5.88dBi, 6.67dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.654" (169.00mm) | DSRC |
|
TG.22.0112.HTRF ANT 1.5GHZ WHIP RA SMA MALE |
3,345 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 1 | 2.3 | - | 0dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMA, GSM, UMTS |
|

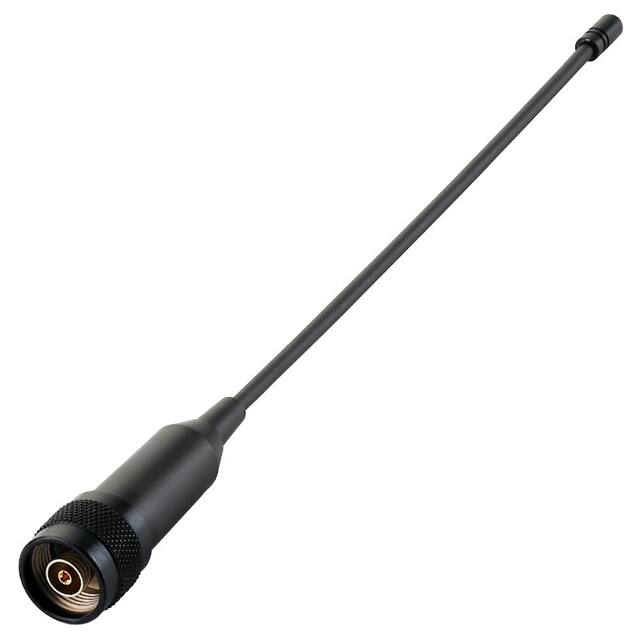

FW.92.RNT.MRF ANT 892MHZ/1.9GHZ WHIP STR |
4,486 |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | - | - | 3.4dBi, 4dBi | - | - | RP-N Male | IP67 | - | - | Connector Mount | 10.787" (274.00mm) | CDMA, GSM |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
