RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AA.250.101111ALL-BAND GNSS MAGNETIC MOUNT ANT |
2,702 |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 9 | - | - | - | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 1.024" (26.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
CGGBP.25.2.A.02GPS/GLONASS/GALILEO/BEIDOU PATCH |
3,187 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.556GHz ~ 1.566GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | - | -6dB | 3.25dBi, 4.35dBi, 3.44dBi | - | - | Pin | - | - | - | Surface Mount | 0.079" (2.00mm) | GLONASS, GNSS, GPS |
|

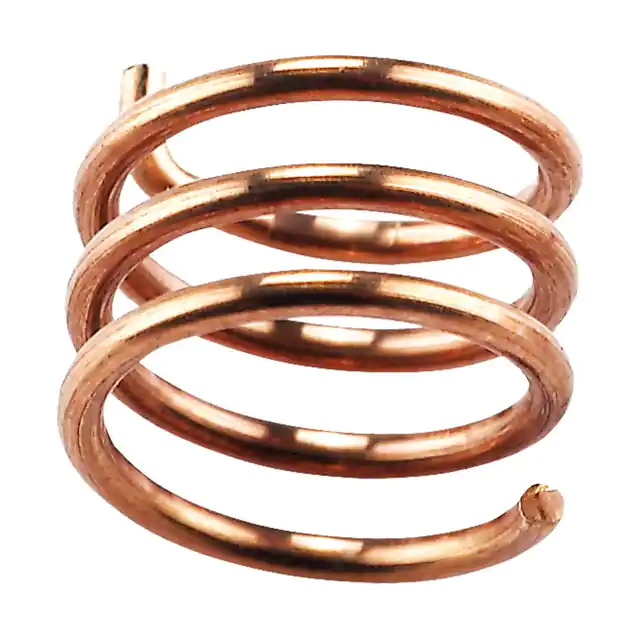

HA.21.ARF ANT 868MHZ HELICAL SOLDER SMD |
1,818 |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Helical | 1 | - | -10dB | 1.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.433" (11.00mm) | ISM |
|

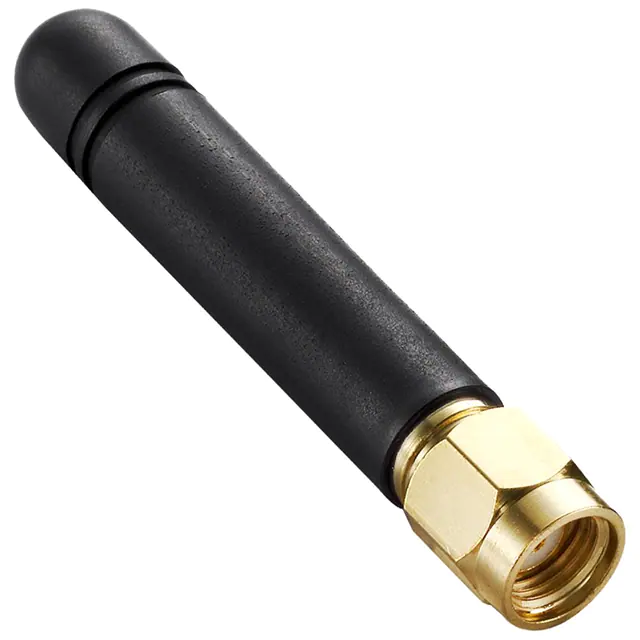

TG.22.0151TG.22 3G/2G CELLULAR CONNECTOR M |
4,184 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Whip, Straight | 5 | 3.5 | - | 1.42dBi, 1.91dBi, 2.51dBi, 3.32dBi, 2.89dBi | 20 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | CDMA, DCS, EDGE, GSM, GPRS, HSPA, PCS, UMTS, WCDMA |
|
TI.08.A.0111TI.08 868MHZ TERMINAL ANTENNA SM |
4,402 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | -1.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.614" (168.00mm) | ISM |
|
GW.11.A153WGW.11 2.4GHZ WHITE DIPOLE ANTENN |
2,031 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1 | -10dB | 2.3dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.323" (84.40mm) | Bluetooth, GSM, ISM, Wi-Fi, Zigbee™ |
|
GW.48.A151W2.4 / 5.8GHZ DUAL BAND 3-3.5DBI |
3,517 |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Straight | 2 | - | -10dB, -7dB | 3.42dBi, 4.56dBi | 2 W | - | RP-SMA Male | IP67 | - | - | Connector Mount | 3.524" (89.50mm) | Bluetooth, WLAN |
|
TG.09.0113WRF ANT 892MHZ/1.9GHZ WHIP TILT |
4,904 |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 2 | - | - | 2dBi, -0.1dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | CDMA, GSM, UMTS |
|
TG.22.0221RF ANT 892MHZ/1.9GHZ WHIP STR |
1,247 |
|
Datasheet | - | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 3 | -10dB | -0.13dBi, 4.08dBi | 5 W | - | FME Female | - | - | - | Connector Mount | 2.059" (52.30mm) | CDMA, GSM, UMTS |
|
TG.08.0723TG.08.0723 CELLULAR GPS / GLONAS |
4,147 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 753MHz, 892MHz, 1.561GHz, 1.57542GHz, 1.602GHz, 1.795GHz, 2.045GHz, 2.59GHz | 703MHz ~ 803MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Whip, Tilt | 8 | - | -2dB, -4dB, -5dB, -8dB, -9dB, -10dB | -1.96dBi, 1.82dBi, 1.87dBi, 1.88dBi, 2.3dBi, 3.43dBi, 3.55dBi, 3.55dBi, 3.62dBi | 10 W | - | SMB, Fakra | - | - | - | Connector Mount | 3.130" (79.50mm) | Beidou, CDMA, DCS, Galileo, GLONASS, GPS, HSPA, LTE, PCS, UMTS, WCDMA |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
