RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FXP612.07.0095ARF ANT FLAT PATCH IPEX MHFI ADH |
4,613 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | - | - | Flat Patch | 3 | 1.3 | -23dB | 4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Beidou, GLONASS, GPS |
|
AFXP.125.07.0095AACTIVE MULTI-BAND GNSS FLEXIBLE |
1,969 |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Flat Patch | 4 | 1 | - | -3.73dBi, -0.71dBi, -0.63dBi, -0.13dBi | - | Cable - 95mm, LNA, Filter | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.091" (2.30mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
AA.166.A.301111AA.166.A.301111 ULYSSES MINIATUR |
3,679 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.559GHz, 1.561GHz, 1.575GHz, 1.592GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Module | 5 | 5 | -3dB | 1.92dBi, 2.34dBi, 0.34dBi, 2.1dBi, 1.81dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GPS |
|

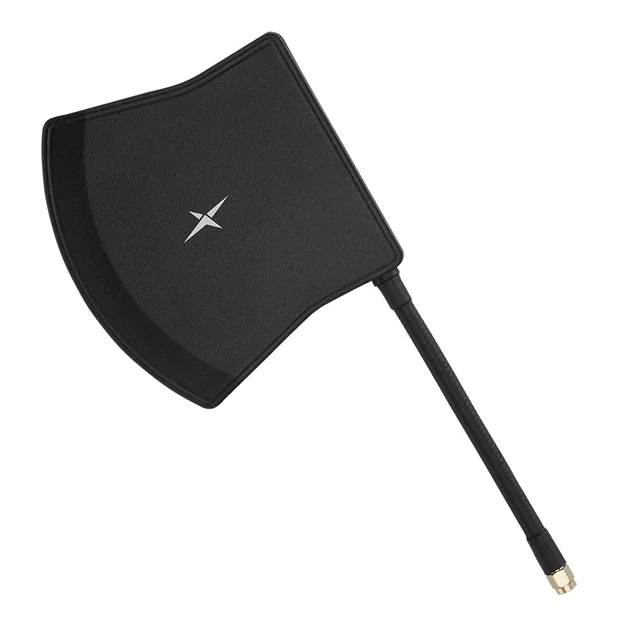

TS.89.4113SIGHUNTER 868 & 915MHZ DIRECTION |
2,362 |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Module | 2 | - | - | 3.5dBi, 2.7dBi | 10 W | Cable - 127mm | SMA Male | - | - | - | Connector Mount | 4.646" (118.00mm) | ISM, LoRa, Sigfox |
|
WM.86.A.305111CYCLOPS 868MHZ WALL MOUNT FLEXIB |
1,124 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 890MHz | Whip, Straight | 1 | - | -10dB | 2.57dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 12.087" (307.00mm) | ISM |
|
|
AHP24510.07.0100CACTIVE GNSS L1,L2 L-BAND STACKED |
3,554 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.249GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.589GHz | 1.217GHz ~ 1.237GHz, 1.241GHz ~ 1.258GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz | Ceramic Patch | 6 | 2 | - | 3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi | - | Cable - 100mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | Adhesive | 0.596" (15.15mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
A.120.A.101111BOLT LOW PROFILE ACTIVE GNSS L1/ |
1,294 |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 10 | 1.5 | - | -1.5dBi, 0.5dBi, 1.8dBi, 1.2dBi, -0.1dBi, -1.5dBi, 2.6dBi, 4.2dBi, 4dBi, 2.7dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.024" (26.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
MA700.A.ABC.001RF ANT 750/892MHZ DOME SMA MALE |
2,971 |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.588GHz, 1.9GHz, 2.4GHz, 5.5GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.9GHz | Dome | 6 | 2, 1.7 | - | 2.4dBi, 1.7dBi, 32dBi, 2.4dBi, 2.1dBi, 3.8dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE |
|
OMB.445.05F21RF ANT 4.7GHZ WHIP STR N FEM |
4,491 |
|
Datasheet | Barracuda | Tube | Active | - | SHF (f > 4GHz) | 4.7GHz | 4.4GHz ~ 5GHz | Whip, Straight | 1 | 1.5 | - | 7dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 10.630" (270.00mm) | - |
|

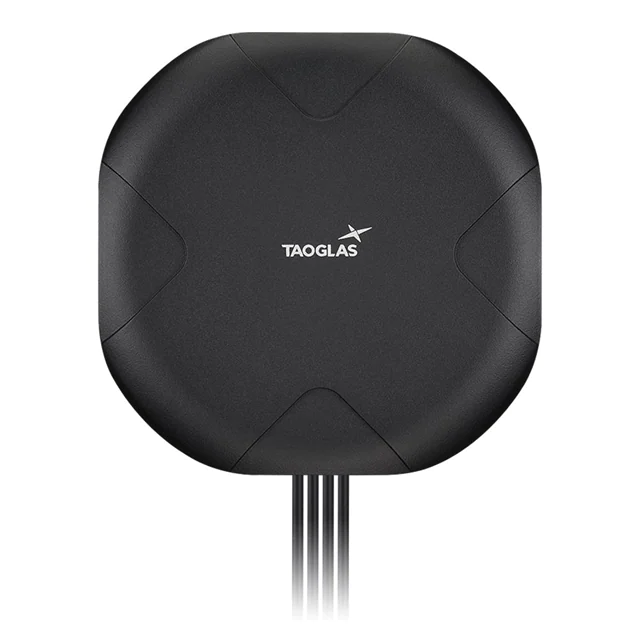

TGX.04.A.001450-6000MHZ CROSS POLARISED WIDE |
2,023 |
|
Datasheet | - | Bag | Active | Cellular, WiFi | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 1dBi, 1.9dBi, 2.7dBi, 2.8dBi, 3.1dBi, 4.2dBi, 4.3dBi, 3.5dBi, 2.3dBi | 10 W | - | SMA Male | IP67 | - | - | Pole, Wall Mount | 5.866" (149.00mm) | 3G, 4G, 5G, LTE, Wi-Fi |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
