RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

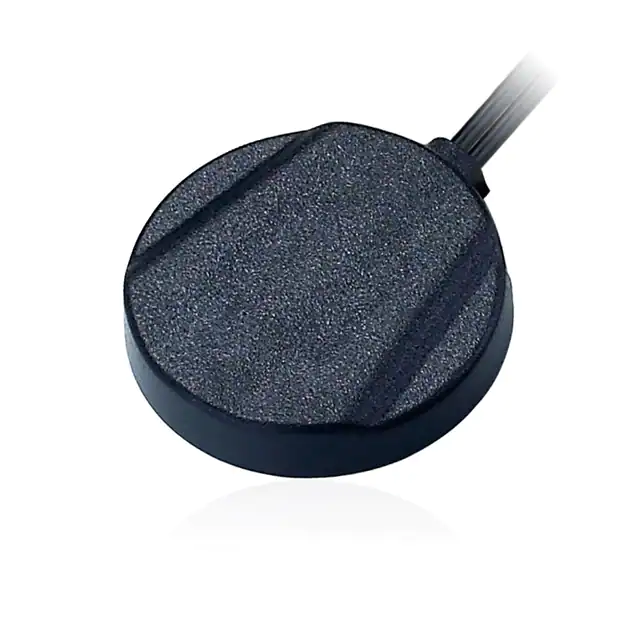

MA203.A.AB.035RF ANT 850MHZ/900MHZ MOD SMA ADH |
3,696 |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | 800MHz ~ 2.2GHz | Module | 5 | 2, 2.5 | - | 30dB | - | Cable - 3m, LNA | SMA Male (2) | IP65 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS |
|
AGGBP.SL.35A.07.0060AGPS/GLONASS/GALILEO/BEIDOU PATCH |
2,603 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.79dBi, 2.23dBi, 1.32dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.315" (8.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
RI.08.A.0121ROADMARKER-ADHESIVE 862-870MHZ S |
4,592 |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 870MHz | Module | 1 | - | - | 3.9dBi, 3.4dBi, 3.9dBi | 10 W | - | SMA Female | - | - | - | Adhesive | 0.693" (17.60mm) | ISM |
|
WM.24.A.305111CYCLOPS 2.4 WALL MOUNT FLEXIBLE |
4,167 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.37dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 12.087" (307.00mm) | Wi-Fi |
|

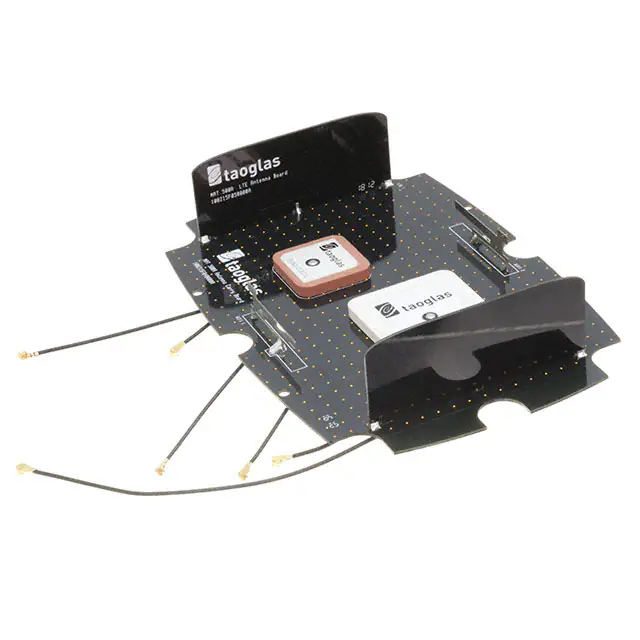

MAT.500.AMAT.500.A 6IN1 INTEGRATED ANTENN |
2,764 |
|
Datasheet | - | Box | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.621GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.607GHz, 1.615GHz ~ 1.626GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz | Ceramic Patch | 12 | 2, 2.2, 4 | - | 0.28dBi, 1.7dBi, 1.7dBi, 5.47dBi, 4.9dBi, 5.11dBi, 6.79dBi, 7.06dBi, 6.81dBi, 5.14dBi, 1.35dBi, 4.77dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 1.181" (30.00mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MA106.C.LB.001RF ANT 892MHZ/1.94GHZ DOME SMA |
2,320 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -25dB | 4dBi | 10 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|
DTAD.01.A.50RF ANT 829MHZ/2.2GHZ PCB TRACE |
3,499 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | PCB Trace | 2 | - | - | 2.5dBi | - | - | SMA Female | - | - | - | Adhesive | 0.197" (5.00mm) | LTE |
|
OMB.8912.05F21RF ANT 850MHZ/900MHZ WHIP STR N |
4,171 |
|
Datasheet | Barracuda | Tube | Active | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8MHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | 2 | - | 3.04dBi, 3.03dBi, 4.3dBi, 4.83dBi, 5.56dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 23.425" (595.00mm) | DCS, GSM, PCS, WCDMA |
|
MA413.A.B.003RF ANT 829MHZ/1.94GHZ DOM SMA 1M |
1,705 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Dome | 3 | 3 | - | 8dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | LTE |
|

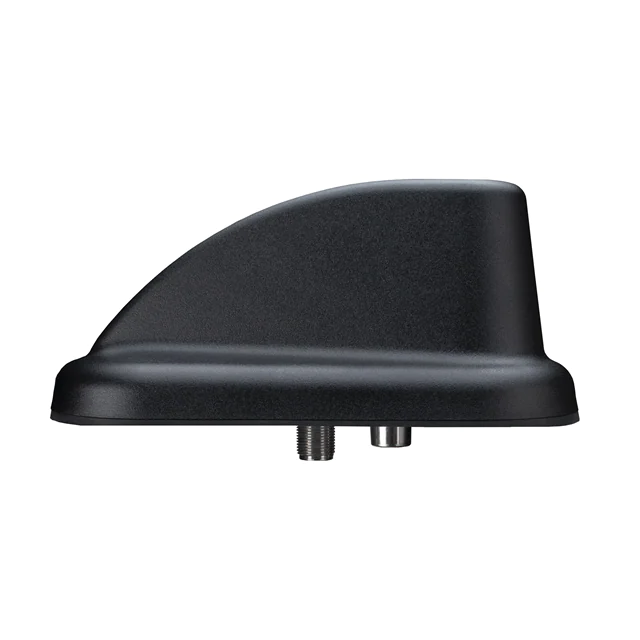

MA1044.A.ACTX.0024IN1 SHARKFIN 300MM RG-174:GNSS |
4,357 |
|
Datasheet | - | Bag | Active | Navigation, WiFi | Wide Band | 1.07MHz, 98MHz, 1.575GHz, 1.602GHz, 2.332GHz, 2.45GHz, 5.415GHz | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 2.32GHz ~ 2.345GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz | Module | 7 | - | -15dB, -5dB, -15dB, -10dB | 3dBi, 4dBi, 4.5dBi, 6dBi | - | Cable - 300mm | SMB, Fakra | IP65 | - | - | Panel Mount | 3.042" (77.27mm) | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
