RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGA1.101111MGA1.101111 3DBI MINI MAGNETIC M |
4,024 |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 707.5MHz, 737.5MHz, 1.7325GHz, 1.88GHz, 1.96GHz, 2.1325GHz | 699MHz ~ 716MHz, 729MHz ~ 746MHz, 1.71GHz ~ 1.755GHz, 1.85GHz ~ 1.91GHz, 1.93GHz ~ 1.99GHz, 2.11GHz ~ 2.155GHz | Whip, Straight | 6 | - | 5dB | -0.83dBi, -0.93dBi, 0.13dBi, 1.33dBi, 1.56dBi, 1.57dBi | - | Cable - 1m | SMA Male | - | - | - | Magnetic | 3.260" (82.80mm) | 2G, 3G, 4G |
|
ISMP.868.35.6.A.02ISM 868MHZ PATCH ANTENNA (35*35* |
4,399 |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Ceramic Patch | 1 | - | -10dB | 2.17dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, LoRa, Sigfox |
|
AGGBP.SL.25A.07.0060ARF ANT 1.575GHZ CER PATCH PIN |
100 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.44dBi, 1.72dBi, 1.67dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.339" (8.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AGGBP.SL.18A.07.0060AACTIVE GPS L1/L2 LOW PROFILE STA |
1,630 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 1dBi, 1.38dBi, 1.15dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.337" (8.57mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TG.30.8112RF ANT 829MHZ/1.575GHZ WHIP STR |
3,699 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 1.575GHz | Whip, Straight | 4 | - | - | 3dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 5.850" (148.60mm) | GPS, LTE |
|
PCUWB01.01.0500GULTRA WIDE BAND FR4 ANTENNA 3-5G |
3,316 |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.15GHz | 3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 10.3GHz | Module | 3 | 2, 3 | -4dB, -6dB, -8dB | 7.5dBi, 4.1dBi, 4.1dBi | - | Cable - 500mm | SMA Male | - | - | - | Adhesive | 0.394" (10.00mm) | UWB |
|

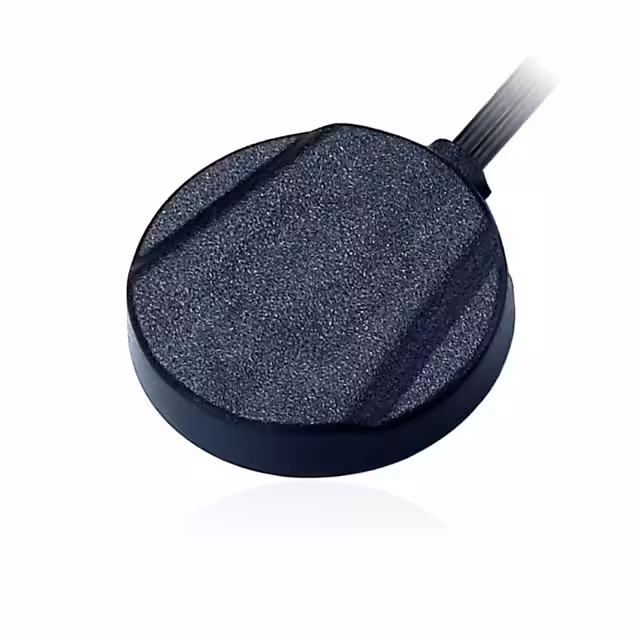

MA204.A.LB.002RF ANT 1.5GHZ MODULE SMA ML ADH |
3,082 |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Module | 1 | 3, 2.5 | - | 28dB | - | LNA, Filter | SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, GPS, GSM, UMTS |
|
HP5010ARF ANT 1.17645GZ CER PATCH PIN |
1,053 |
|
Datasheet | - | Tray | Not For New Designs | Cellular | Wide Band | 1.17645GHz, 1.2276GHz, 1.561GHz, 1.57542GHz, 1.602GHz | 1.176GHz ~ 1.2276GHz, 1.561GHz ~ 1.61GHz | Ceramic Patch | 6 | 2, 2, 2, 2, 2 | - | 3dBi, 3.7dBi, 3.6dBi, 3.7dBi, 4dBi | - | - | Pin | - | - | - | Adhesive | 0.413" (10.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TFX257.AFLEXIBLE TRANSPARENT WI-FI ANT |
1,666 |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | - | 4.59dBi, 3.58dBi, 2.04dBi | 2 W | Transparent | Fakra | - | - | - | Surface Mount | 0.020" (0.50mm) | Wi-Fi |
|
WLP.2450.50.6.A.08WI-FI OMNIDIRECTIONAL CP 50MM SI |
1,292 |
|
Datasheet | - | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | - | 3.17dBi, 3.46dBi, 2.98dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.252" (6.40mm) | Wi-Fi |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
