Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

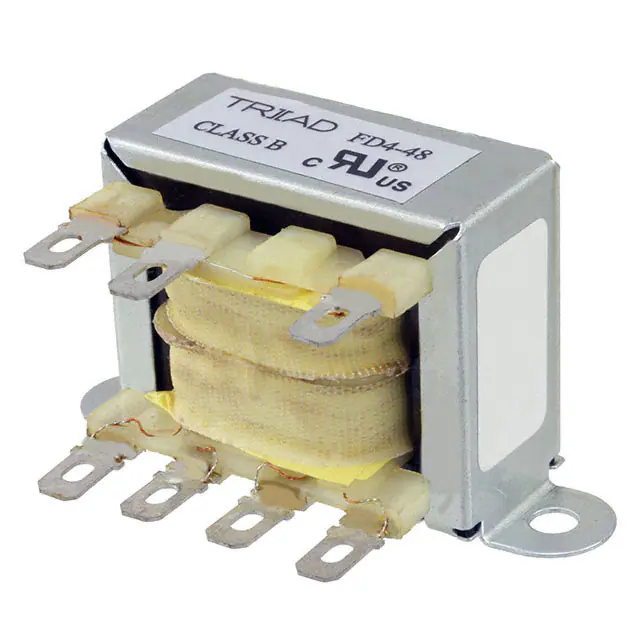

FD4-36PWR XFMR LAMINATED 6VA CHAS MT |
3,040 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 36V | 170mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
|
FD4-56PWR XFMR LAMINATED 6VA CHAS MT |
1,525 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 56V | 110mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
F-3153XPPWR XFMR LAMINATED 7.5VA TH |
1,952 |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 500mA, Series 250mA | Dual | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms | 0.688 lb (312.07 g) |
|
F-152XPPWR XFMR LAMINATED 7.5VA CHAS MT |
2,439 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 7.5V, Series 15V | Parallel 1A, Series 500mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|
F10-1200-C2PWR XFMR LAMINATED 12VA TH |
4,035 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
F48-250-C2PWR XFMR LAMINATED 12VA TH |
4,564 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F28-420-C2PWR XFMR 12VA TH |
1,714 |
|
Datasheet | F28 | Bulk | Active | - | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 49.00mm L x 41.00mm W | 38.51mm | 4200V | - |
|
F5-16PWR XFMR LAMINATED 12VA CHAS MT |
1,370 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 16V | 800mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F-3143XPPWR XFMR LAMINATED 4.5VA CHAS MT |
2,306 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 300mA, Series 150mA | Dual | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
|
F-350XPPWR XFMR LAMINATED 4.5VA CHAS MT |
2,273 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 360mA, Series 180mA | Dual | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
