Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS120-100PWR XFMR LAMINATED 12VA TH |
1,222 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 200mA, Series 100mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
FS48-250PWR XFMR LAMINATED 12VA TH |
1,966 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
FS56-220PWR XFMR LAMINATED 12VA TH |
1,163 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 440mA, Series 220mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F-3152XPPWR XFMR LAMINATED 7.5VA CHAS MT |
2,013 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 7.5V, Series 15V | Parallel 1A, Series 500mA | Dual | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms | 0.69 lb (312.98 g) |
|
F-228XPWR XFMR LAMINATED 10.5VA CHAS |
2,305 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 35V | 300mA | Single | Single | Yes | 10.5VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.6 lb (272.16 g) |
|

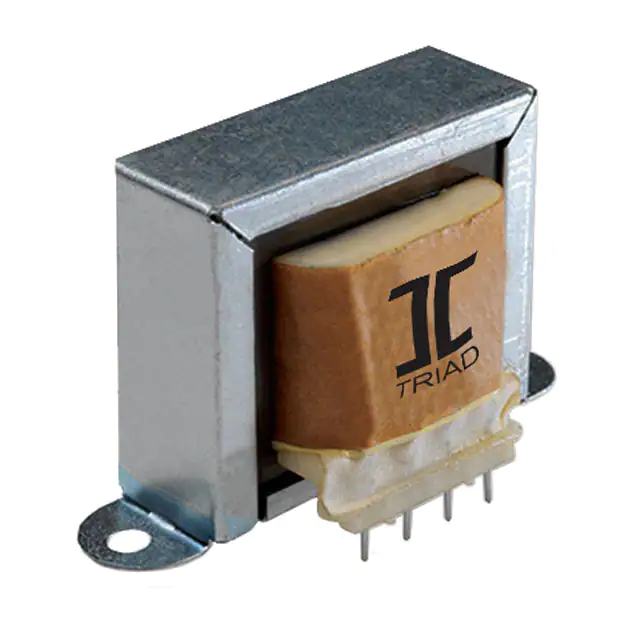

F-369XPPWR XFMR LAMINATED 10VA TH |
1,879 |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 88mA, Series 44mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms | 0.688 lb (312.07 g) |
|
FP120-50PWR XFMR LAMINATED 6VA TH |
3,635 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 100mA, Series 50mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.23mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP230-25PWR XFMR LAMINATED 6VA TH |
4,700 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 50mA, Series 25mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.23mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP40-150PWR XFMR LAMINATED 6VA TH |
3,593 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 300mA, Series 150mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.23mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP88-65PWR XFMR LAMINATED 6VA TH |
2,867 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 44V, Series 88V | Parallel 130mA, Series 65mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.23mm | 2000Vrms | 0.438 lb (198.67 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
