Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F5-120PWR XFMR LAMINATED 12VA CHAS MT |
3,907 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 120V | 100mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|

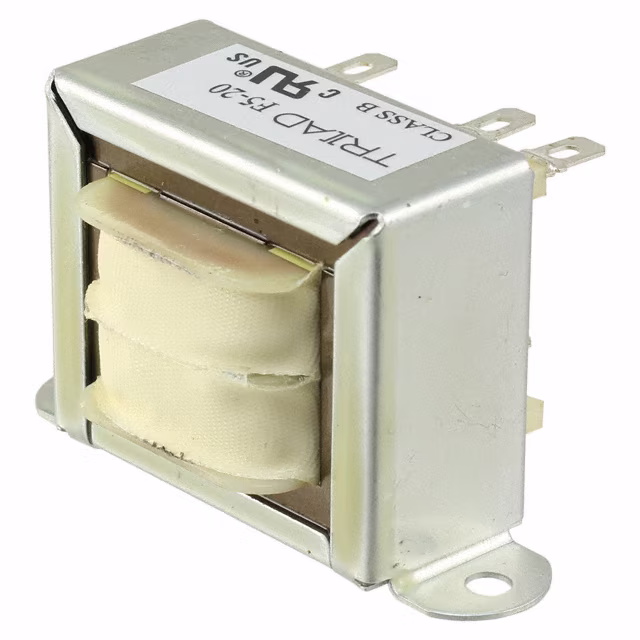

F5-20PWR XFMR LAMINATED 12VA CHAS MT |
4,338 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 20V | 600mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|

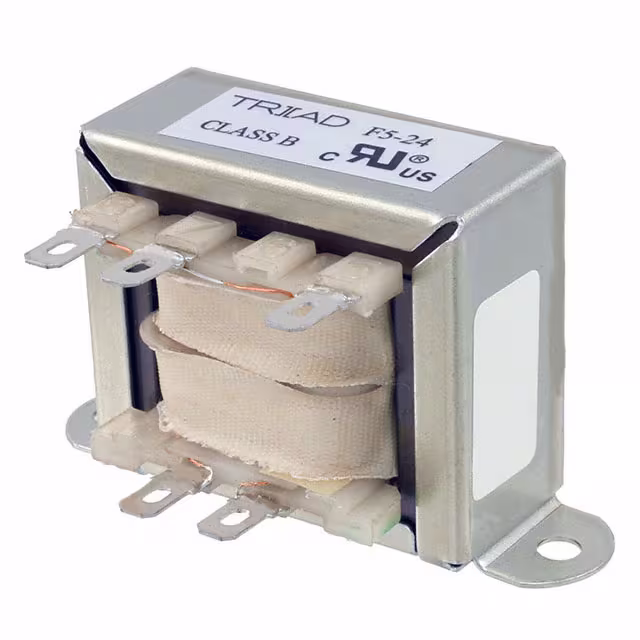

F5-24PWR XFMR LAMINATED 12VA CHAS MT |
4,970 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 24V | 500mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-28PWR XFMR LAMINATED 12VA CHAS MT |
2,837 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 28V | 420mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F5-36PWR XFMR LAMINATED 12VA CHAS MT |
2,273 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 36V | 350mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-48PWR XFMR LAMINATED 12VA CHAS MT |
1,858 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 48V | 250mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-56PWR XFMR LAMINATED 12VA CHAS MT |
1,470 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 56V | 220mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F-166XPPWR XFMR LAMINATED 7.5VA TH |
1,012 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 9V, Series 24V | Parallel 500mA, Series 125mA | Single | Dual | Yes | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|
|
F-169XPPWR XFMR LAMINATED 7.5VA TH |
4,660 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 32V | Parallel 287mA, Series 100mA | Single | Dual | Yes | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|
|
F-349XPPWR XFMR LAMINATED 4.5VA TH |
2,117 |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 560mA, Series 280mA | Dual | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
