Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP56-45-BPWR XFMR LAMINATED 2.5VA TH |
3,262 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
FS12-1000-BPWR XFMR LAMINATED 12VA TH |
4,907 |
|
Datasheet | Split Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F10-1200PWR XFMR LAMINATED 12VA TH |
2,274 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F12-1000PWR XFMR LAMINATED 12VA TH |
3,650 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F16-800PWR XFMR LAMINATED 12VA TH |
2,429 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 1.6A, Series 800mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|

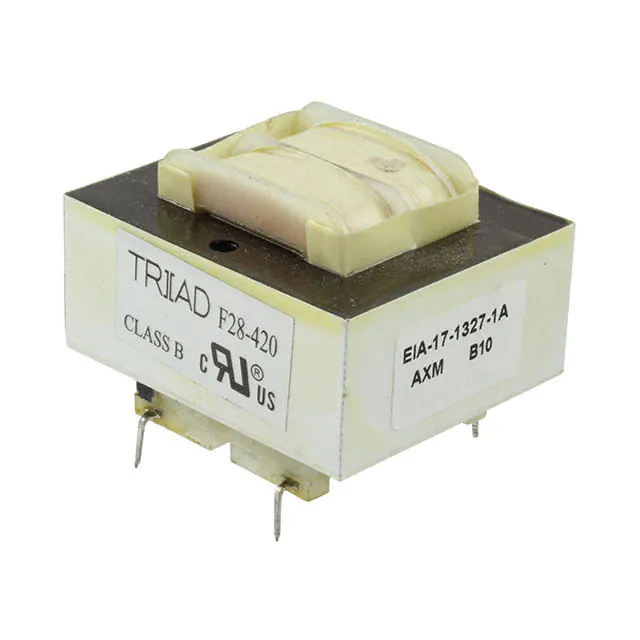

F28-420PWR XFMR LAMINATED 12VA TH |
4,196 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F36-350PWR XFMR LAMINATED 12VA TH |
4,695 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F48-250PWR XFMR LAMINATED 12VA TH |
1,885 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F56-220PWR XFMR LAMINATED 12VA TH |
2,341 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 440mA, Series 220mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F-119XPWR XFMR LAMINATED 4.02VA CHAS |
1,049 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 26.8V | 150mA | Single | Single | Yes | 4.02VA | Chassis Mount | Wire Leads | 60.32mm L x 38.10mm W | 34.93mm | 1500Vrms | 0.45 lb (204.12 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
