Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-363XPPWR XFMR LAMINATED 4.5VA TH |
4,849 |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 40mA, Series 20mA | Dual | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
|
FP20-125PWR XFMR LAMINATED 2.5VA TH |
4,893 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 250mA, Series 125mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
FP120-20PWR XFMR LAMINATED 2.5VA TH |
4,917 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
|
FP230-10PWR XFMR LAMINATED 2.5VA TH |
4,910 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 20mA, Series 10mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
|
FP40-60PWR XFMR LAMINATED 2.5VA TH |
4,797 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 120mA, Series 60mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
|
FP88-28PWR XFMR LAMINATED 2.5VA TH |
4,258 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 44V, Series 88V | Parallel 56mA, Series 28mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|

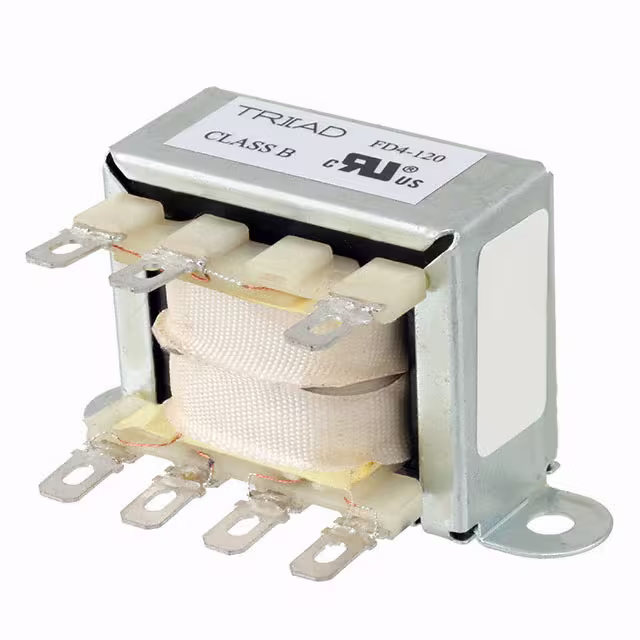

FD4-120PWR XFMR LAMINATED 6VA CHAS MT |
3,489 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 120V | 50mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|

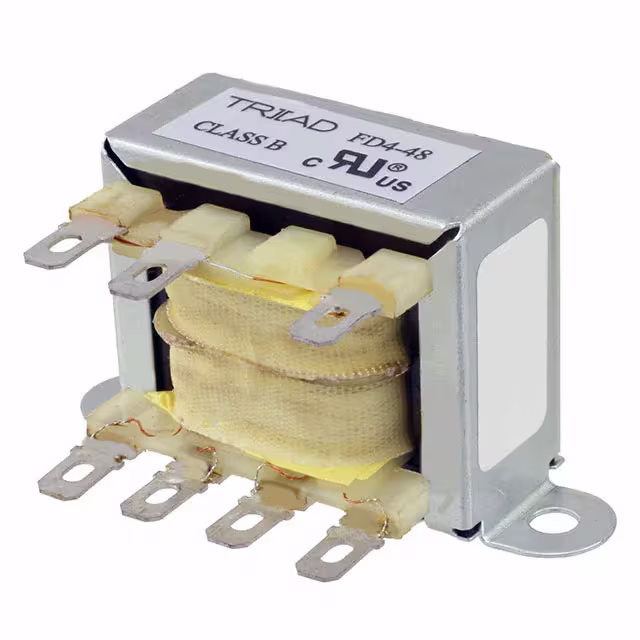

FD4-48PWR XFMR LAMINATED 6VA CHAS MT |
1,488 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 48V | 125mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
F-90XPWR XFMR LAMINATED VARIES CHAS |
3,050 |
|
Datasheet | Universal | Box | Active | Laminated Core | 115V | 10V, 20V, 40V | 100mA | Single, Multiple Taps | Single, Multiple Taps | No | Varies | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.7 lb (317.51 g) |
|
F-151XPPWR XFMR LAMINATED 7.5VA TH |
3,836 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 4V, Series 8V | Parallel 1.88A, Series 940mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
