Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD80GC0JEFJ-E21A 8V, FIXED OUTPUT, HIGH-ACCURA |
2,414 |
|
Datasheet | BDxxGC0JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 8V | - | 0.92V @ 1A | 1A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
NCV8164CMTW180TAGIC REG LINEAR 1.8V 300MA 6WDFNW |
4,052 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5V | 1.8V | - | 0.255V @ 300mA | 300mA | 40 µA | - | 83dB ~ 61dB (100Hz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|

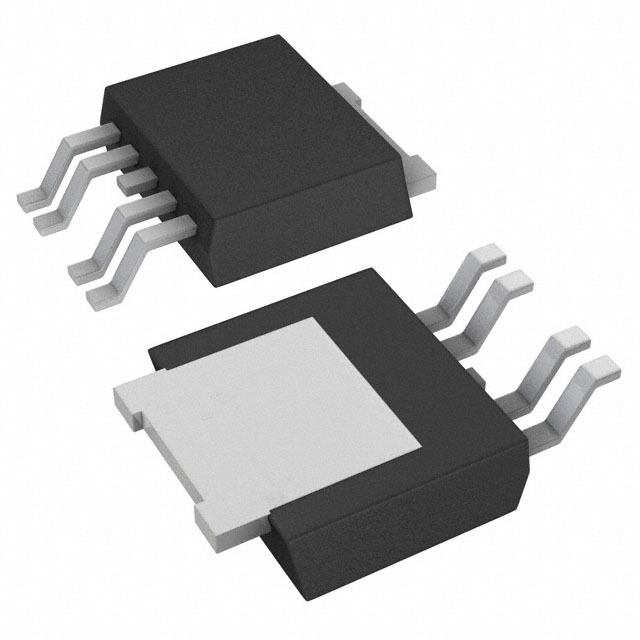

AP7583Q-50D4-13LDO CMOS LOWCURR TO252-4 T&R 2.5 |
4,020 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
|
AP7583Q-33D4-13LDO CMOS LOWCURR TO252-4 T&R 2.5 |
2,945 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.7V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
XC6220B301ER-GIC REG LINEAR 3V 1A 6USPC |
1,666 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPC (1.8x2) |
|
|
XC6220B361ER-GIC REG LINEAR 3.6V 1A 6USPC |
2,496 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.6V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPC (1.8x2) |
|
NCV8623MN-28R2GIC REG LINEAR 2.8V 150MA 6DFN |
2,482 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 2.8V | - | 0.26V @ 150mA | 150mA | 200 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
XC6220B201MR-GIC REG LINEAR 2V 1A SOT25 |
3,922 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP7583AQ-50D4-13LDO CMOS LOWCURR TO252-4 T&R 2.5 |
3,163 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.7V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-4 (Type C) |
|
|
AP7583AQ-33D4-13LDO CMOS LOWCURR TO252-4 T&R 2.5 |
3,049 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.5V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-4 (Type C) |
|
|
NR1600DD330BE1S500MA LOW DROPOUT VOLTAGE REGULA |
4,757 |
|
Datasheet | NR1600 | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.27V @ 500mA | 500mA | 125 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable, Power Good, Soft Start | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6-DD |
|
ADPL44001ATT+40V, 100MA, ULTRA-LOW QUIESCENT |
1,640 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 20V | 0.6V | 18V | 1.1V @ 100mA | 100mA | 15 µA | - | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-TDFN (3x3) |
|
|
XC6216B902MR-GIC REG LINEAR 9V 150MA SOT25 |
4,931 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 9V | - | 0.95V @ 100mA | 150mA | 9 µA | - | 30dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
BD60HC5JEFJ-E21.5A 6V, FIXED OUTPUT, HIGH-ACCU |
2,733 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 6V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD30HC5JEFJ-E21.5A 3V, FIXED OUTPUT, HIGH-ACCU |
1,872 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD70HC5JEFJ-E21.5A 7V, FIXED OUTPUT, HIGH-ACCU |
4,162 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 7V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD25HC5JEFJ-E21.5A 2.5V, FIXED OUTPUT, HIGH-AC |
2,195 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 2.5V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD15HC5JEFJ-E21.5A 1.5V, FIXED OUTPUT, HIGH-AC |
1,489 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.5V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD50HC5JEFJ-E21.5A 5V, FIXED OUTPUT, HIGH-ACCU |
3,859 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 5V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
XC6702DF01PR-GIC REG LINEAR 15V 300MA SOT89-5 |
1,831 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 15V | - | 0.81V @ 100mA | 300mA | 90 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-89-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
