Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7375Q-50WR-7LDO CMOS LOWCURR SOT25 T&R 3K |
4,056 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 1.4V @ 300mA | 350mA | 8 µA | - | 85dB (1kHz) | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-25 |
|
TPS74801RGWRM31.5-A LOW-VIN (0.8 V) ADJUSTABLE |
3,885 |
|
Datasheet | - | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.165V @ 1.5A | 1.5A | 2 mA | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-VQFN (5x5) |
|
S7A21105PQWDSGRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
2,259 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.05V | - | 0.605V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|
|
TPS7A2109PQWDSGRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
2,641 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 0.9V | - | 0.83V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|
|
TPS7A2115PQWDSGRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
1,427 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.355V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|
|
TPS7A2110PQWDSGRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
2,212 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1V | - | 0.605V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|
|
TPS7A2150PQWDSGRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
1,781 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.265V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|
TCR8BM105,L3FIC REG LINEAR 1.05V 800MA 5DFNB |
1,269 |
|
Datasheet | TCR8BM | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.05V | - | 0.24V @ 800mA | 800mA | 36 µA | - | 98dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-DFNB (1.2x1.2) |
|
XC6210A252MR-GIC REG LINEAR 2.5V 700MA SOT25 |
2,123 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.09V @ 100mA | 700mA | 66 µA | - | 60dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
TPL810F28-89TRLINEAR VOLTAGE REGULATOR IC FIXE |
4,004 |
|
Datasheet | TPL810 | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 2.8V | - | 0.8V @ 180mA | 180mA | 5 µA | - | 75dB ~ 65dB (100Hz ~ 10kHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
TCR8BM10A,L3FIC REG LINEAR 1V 800MA 5DFNB |
3,212 |
|
Datasheet | TCR8BM | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.23V @ 800mA | 800mA | 36 µA | - | 98dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 5-DFNB (1.2x1.2) |
|

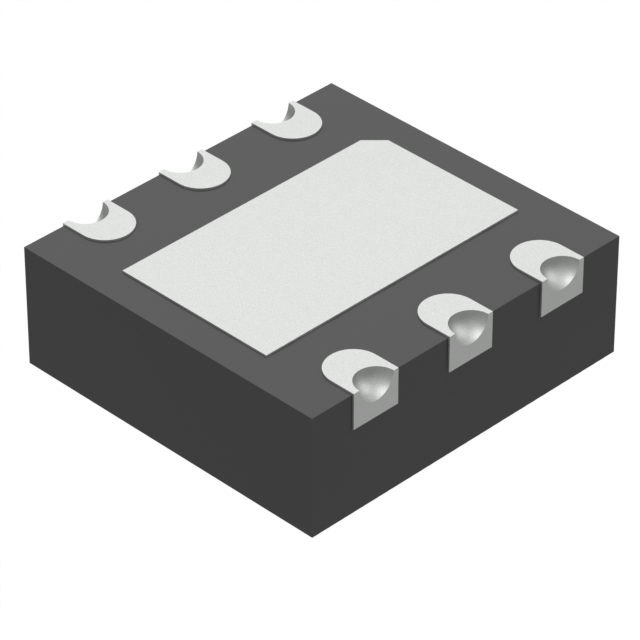

AP7375Q-18FDCW-7LDO CMOS LOWCURR U-DFN2020-6/SWP |
3,049 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 1.8V | - | 1.4V @ 300mA | 350mA | 8 µA | - | 85dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | U-DFN2020-6 (SWP) (Type UXC) |
|
|
AP7375Q-50FDCW-7LDO CMOS LOWCURR U-DFN2020-6/SWP |
4,611 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 1.4V @ 300mA | 350mA | 8 µA | - | 85dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | U-DFN2020-6 (SWP) (Type UXC) |
|
|
AP7375Q-30FDCW-7LDO CMOS LOWCURR U-DFN2020-6/SWP |
4,908 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3V | - | 1.4V @ 300mA | 350mA | 8 µA | - | 85dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | U-DFN2020-6 (SWP) (Type UXC) |
|
|
AP7375Q-33FDCW-7LDO CMOS LOWCURR U-DFN2020-6/SWP |
1,707 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 1.4V @ 300mA | 350mA | 8 µA | - | 85dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | U-DFN2020-6 (SWP) (Type UXC) |
|
AP7375-36FDCW-7IC REG LIN 3.6V 300MA U-DFN2020 |
4,811 |
|
Datasheet | AP7375 | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.6V | - | 0.36V @ 100mA | 300mA | 5 µA | - | - | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | U-DFN2020-6 (SWP) (Type UXC) |
|
|
AP7375-36W5-7IC REG LIN 3.6V 300MA SOT25 |
1,934 |
|
Datasheet | AP7375 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.6V | - | 0.36V @ 100mA | 300mA | 5 µA | - | - | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-25 |
|
XC6221B122MR-GIC REG LINEAR 1.2V 200MA SOT25 |
1,230 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.41V @ 100mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-25-5 |
|
XC6241B2519R-GULTRA-LOW SUPPLY CURRENT 0.6UA H |
2,403 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.325V @ 150mA | 150mA | 900 nA | - | 60dB (1kHz) | Current Limit, Enable | Over Current, Short Circuit | -40°C ~ 105°C (TA) | - | - | Surface Mount | 4-USPQ-B05 (1x1) |
|
XC6505B301ER-GIC REG LINEAR 3V 200MA 6USPC |
2,236 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10.5V | 3V | - | 0.25V @ 100mA | 200mA | 8 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | 6-USPC (1.8x2) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
