Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3961EMPX-2.5/NOPBIC REG LIN 2.5V 800MA SOT223-5 |
3,582 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 2.5V | - | 0.35V @ 800mA | 800mA | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-5 |
|

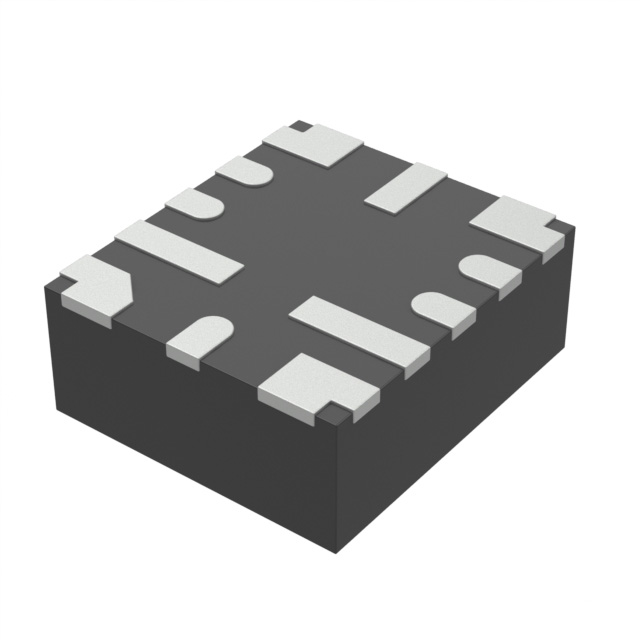

TPS7A5301BRPSRLINEAR & LOW-DROUPOUT (LDO) REGU |
3,221 |
|
Datasheet | - | 12-VFQFN | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.5V | 5.15V | 0.375V @ 3A | 3A | 4.3 mA | 5.5 mA | 53dB ~ 48dB (10kHz ~ 500kHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | 12-VQFN-HR (2.2x2.5) |
|
LT3065HDD-1.5#PBFIC REG LINEAR 1.5V 500MA 10DFN |
4,359 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 1.5V | - | 0.51V @ 500mA | 500mA | 110 µA | 25 mA | 78dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 10-DFN (3x3) |
|
S-19519AFKA-E8T1U4LINEAR IC |
3,133 |
|
Datasheet | S-19519 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | 18 µA | - | 65dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
S-19519BFKA-BCT1U4LINEAR IC |
1,590 |
|
Datasheet | S-19519 | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | 18 µA | - | 65dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
MAX664EPA+IC REG LIN NEG ADJ 40MA 8DIP |
1,549 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Negative | Adjustable (Fixed) | 1 | -16.5V | -1.3V (-5V) | -16V | 0.35V @ 40mA | 40mA | 15 µA | - | - | Current Limit, Enable | - | -40°C ~ 85°C | - | - | Through Hole | 8-PDIP |
|
LT1963ET-3.3#30PBFIC REG LIN 3.3V 1.5A TO220-5 |
1,977 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
MUSES100GQ50AE3S600MA 5.5V LOW NOISE LDO REGULAT |
4,238 |
|
Datasheet | MUSES100 | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 5V | - | 0.2V @ 600mA | 600mA | 1.21 mA | - | 90dB ~ 80dB (1kHz ~ 100kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN3030-8-GQ |
|
|
MUSES100GQ12AE3S600MA 5.5V LOW NOISE LDO REGULAT |
2,258 |
|
Datasheet | MUSES100 | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 600mA | 1.21 mA | - | 90dB ~ 80dB (1kHz ~ 100kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN3030-8-GQ |
|
|
MUSES100GQ33AE3S600MA 5.5V LOW NOISE LDO REGULAT |
1,578 |
|
Datasheet | MUSES100 | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 600mA | 600mA | 1.21 mA | - | 90dB ~ 80dB (1kHz ~ 100kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN3030-8-GQ |
|
|
MUSES100GQ18AE3S600MA 5.5V LOW NOISE LDO REGULAT |
4,116 |
|
Datasheet | MUSES100 | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 600mA | 1.21 mA | - | 90dB ~ 80dB (1kHz ~ 100kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN3030-8-GQ |
|
|
MUSES100GQ15AE3S600MA 5.5V LOW NOISE LDO REGULAT |
2,847 |
|
Datasheet | MUSES100 | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 600mA | 1.21 mA | - | 90dB ~ 80dB (1kHz ~ 100kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN3030-8-GQ |
|
MAX1806EUA33+TIC REG LIN POS ADJ 500MA 8UMAX |
3,241 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 0.8V (3.3V) | 4.5V | - | 500mA | 400 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX-EP|8-uSOP-EP |
|
|
MAX884EPA+IC REG LIN POS ADJ 200MA 8DIP |
4,886 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Positive | Adjustable (Fixed) | 1 | 11.5V | 1.25V (3.3V) | 11V | 0.64V @ 200mA | 200mA | 15 µA | 25 µA | - | Enable, Low Battery Detection | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | 8-PDIP |
|
LT3065EMSE-1.5#PBFIC REG LINEAR 1.5V 500MA 12MSOP |
3,503 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 1.5V | - | 0.51V @ 500mA | 500mA | 110 µA | 25 mA | 78dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
LT1585CT-3.6#PBFIC REG LINEAR 3.6V 4.6A TO220-3 |
2,889 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 7V | 3.6V | - | 1.4V @ 4A | 4.6A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LT3055HMSE-3.3#PBFIC REG LINEAR 3.3V 500MA 16MSOP |
3,633 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.59V @ 500mA | 500mA | 130 µA | 25 mA | 70dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT3078AV#PBF5V, 5A ultralow noise |
2,786 |
|
Datasheet | - | 22-TFQFN Exposed Pad | Tray | Active | Positive | Programmable | 1 | 5.5V | 0.5V | 4.2V | 0.14V @ 5A | 5A | 6.5 mA | 7 mA | 106dB ~ 70dB (120Hz ~ 1MHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 22-LQFN (3x4) |
|
LM317AHIC REG LINEAR POS ADJ 1.5A TO3 |
4,267 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-3 |
|
|
LT3074AV#PBF5V,3A ULTRALOW NOISE,HIGH PSRR,P |
3,977 |
|
Datasheet | - | 22-TFQFN Exposed Pad | Tray | Active | Positive | Adjustable | 1 | 5.5V | - | 5.4V | 0.1V @ 3A | 3A | 7.9 mA | 9.8 mA | 90dB ~ 52dB (120Hz ~ 1MHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 22-LQFN (3x4) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
