Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XC6210B112MR-GIC REG LINEAR 1.1V 500MA SOT25 |
3,518 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.1V | - | 0.5V @ 100mA | 500mA | 55 µA | - | 60dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6222A331MR-GIC REG LINEAR 3.3V 700MA SOT25 |
2,440 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.2V @ 300mA | 700mA | 220 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6222A411MR-GIC REG LINEAR 4.1V 700MA SOT25 |
4,648 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4.1V | - | 0.2V @ 300mA | 700mA | 220 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
NCV8189CMLADJTCGLDO, 0.5A, LOW NOISE, FIXED AND |
2,921 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5V | 0.21V @ 500mA | 500mA | 55 µA | - | 85dB ~ 40dB (1kHz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-DFNW (3x3) |
|

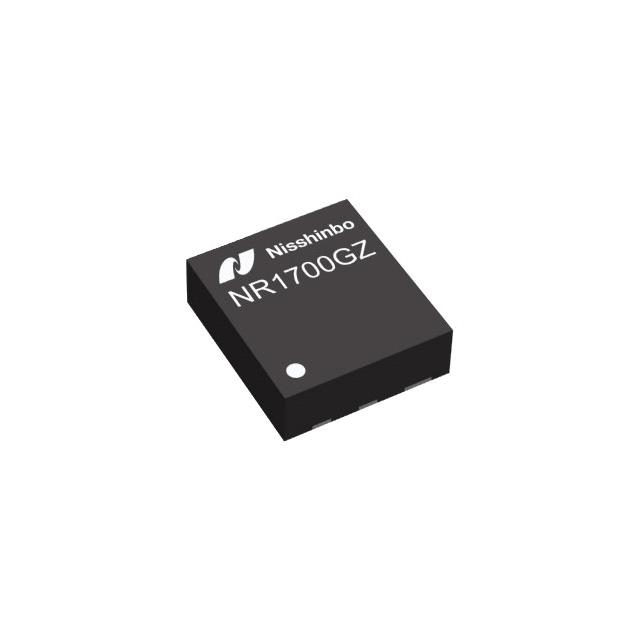

NR1700GZ000AE4S200MA 42V INPUT ADJUSTABLE OUTPU |
3,660 |
|
Datasheet | NR1700 | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 3.5V | 24V | 1V @ 200mA | 200mA | 21 µA | - | 55dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | DFN(PL)2018-6-GZ |
|
NCV8154MW300300TBGIC REG LINEAR 3V/3V 10DFN |
4,536 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.25V | 3V, 3V | - | -, - | 300mA, 300mA | 100 µA | 200 µA | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
TPS78501QKVURQ1IC POWER |
2,703 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5.5V | - | 1A | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-5 |
|
XC6902N301MR-GIC REG LINEAR -3V 200MA SOT23 |
4,641 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -16V | -3V | - | 0.151V @ 20mA | 200mA | 200 µA | - | 45dB (1kHz) | - | Over Current, Over Temperature, Soft Start | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23 |
|
NR1700DM000AE1S200MA 42V INPUT ADJUSTABLE OUTPU |
2,905 |
|
Datasheet | NR1700 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 3.5V | 24V | 1V @ 200mA | 200mA | 21 µA | - | 55dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
BD30IA5JEFJ-E2500MA 3V, FIXED OUTPUT, HIGH-ACC |
1,419 |
|
Datasheet | BDxxIA5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.6V @ 500mA | 500mA | 500 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD33HC5JEFJ-E21.5A 3.3V, FIXED OUTPUT, HIGH-AC |
1,381 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3.3V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD18HC5JEFJ-E21.5A 1.8V, FIXED OUTPUT, HIGH-AC |
1,649 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.8V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
XC6220B501MR-GIC REG LINEAR 5V 1A SOT25 |
3,102 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP7583Q-50MP-13LDO CMOS LOWCURR MSOP-8EP T&R 2. |
1,561 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
|
AP7583Q-33MP-13LDO CMOS LOWCURR MSOP-8EP T&R 2. |
1,502 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.7V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
|
AP7583Q-MP-13LDO CMOS LOWCURR MSOP-8EP T&R 2. |
1,825 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 1.2V | 5V | 0.7V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
ADPL42001ATT+20V, 100MA, ULTRA-LOW QUIESCENT |
3,622 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 20V | 0.6V | 18V | 1.1V @ 100mA | 100mA | 15 µA | - | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-TDFN (3x3) |
|
TLE42644GHTSA3IC REG LINEAR 5V 100MA SOT223-4 |
3,637 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 100mA | 100mA | 60 µA | 4 mA | 68dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
|
BD33GC0JEFJ-E21A 3.3V, FIXED OUTPUT, HIGH-ACCU |
2,316 |
|
Datasheet | BDxxGC0JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 3.3V | - | 0.92V @ 1A | 1A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD50GC0JEFJ-E21A 5V, FIXED OUTPUT, HIGH-ACCURA |
3,673 |
|
Datasheet | BDxxGC0JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 5V | - | 0.92V @ 1A | 1A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
