Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

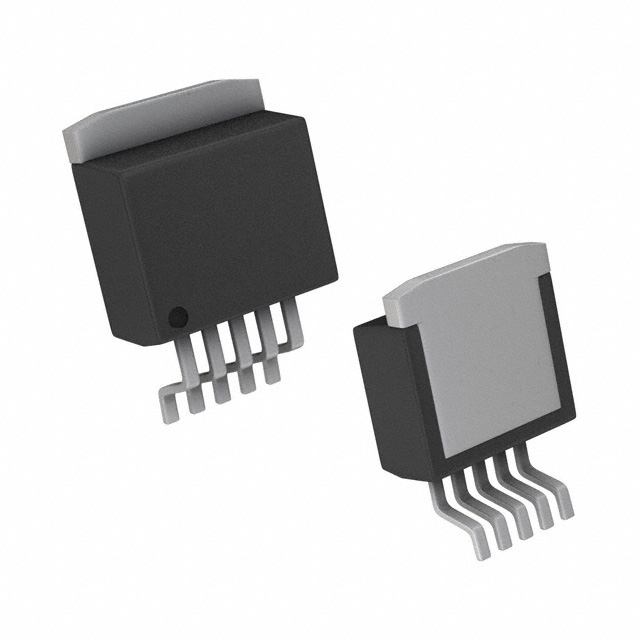

LT1963AMPQ1.5A, L N, FAST TRAN RESP LDO RE |
2,083 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DDPAK-5 |
|
|
LT3080EQADJ 1.1A 1X RES L DROP REG |
1,486 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 36V | 0V | 36V | 1.6V @ 1.1A | 1.1A | 10.1 µA | 30 mA | 75dB ~ 20dB (120Hz ~ 1MHz) | Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | DDPAK-5 |
|

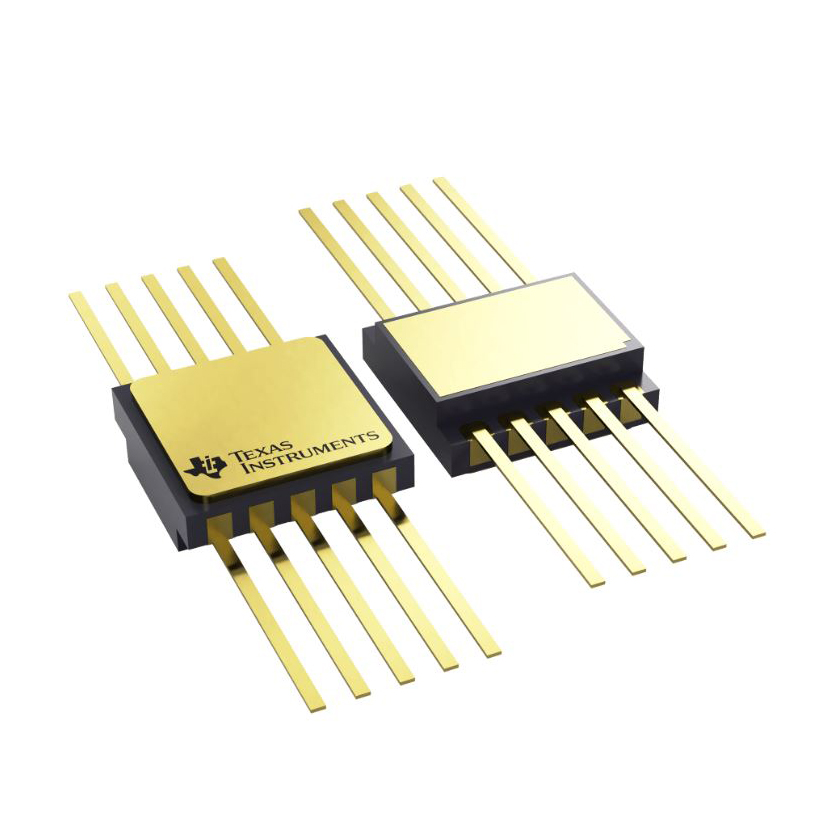

TPS7A4501Y/EMRADIATION-HARDENED-ASSURED (RHA) |
4,180 |
|
Datasheet | - | Die | Tube | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | - | 750mA | 1.5 mA | - | 68dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Current, Reverse Polarity | -55°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
MCA1117C-3.3-TPInterface |
3,443 |
|
Datasheet | - | TO-243AA | Bulk | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.5V @ 800mA | 800mA | 5 mA | - | - | - | - | -25°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89 |
|
DI78L12ZABVR TO-92 30V 11.5V 12.5V |
3,676 |
|
Datasheet | DI78LxxZAB | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 35V | 12V | - | 1.7V @ 40mA | 100mA | 6.5 mA | - | 42dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92 |
|

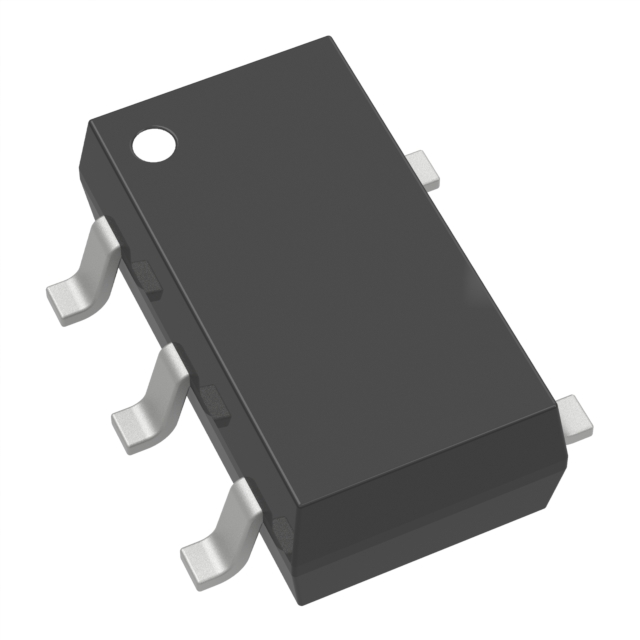

MC7333-TPVOLTAGE REGULATORS,SOT23-5L |
3,053 |
|
Datasheet | MC73XX | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 8V | 1.2V | 5V | 0.13V @ 50mA | 400mA | 2.8 µA | - | 75dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5L |
|
MCT1117C-1.2-TPInterface |
3,235 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 30V | 1.2V | - | 1.4V @ 1A | 1A | 5 mA | - | 60dB ~ 62dB (120Hz ~ 1kHz) | - | Over Temperature | -20°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|

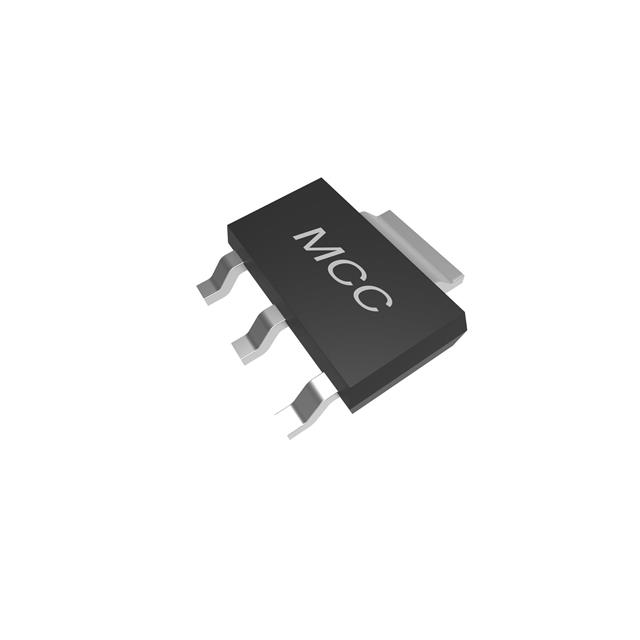

MCT1119C-ADJ-TPInterface |
2,015 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Not For New Designs | Positive | Adjustable | 1 | 15V | 1.25V | 12V | 1.3V @ 1A | 1.2A | 10 mA | - | 63dB (120Hz ~ 1kHz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
MCT1117C-2.85-TPInterface |
3,374 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 30V | 2.85V | - | 1.4V @ 1A | 1A | 5 mA | - | 60dB ~ 62dB (120Hz ~ 1kHz) | - | Over Temperature | -20°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
MCT1119C-1.5-TPInterface |
1,825 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Not For New Designs | Positive | Fixed | 1 | 15V | 1.5V | - | 1.3V @ 1A | 1.2A | 5 mA | - | 63dB (120Hz ~ 1kHz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
MCT1117C-2.5-TPInterface |
2,001 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 30V | 2.5V | - | 1.4V @ 1A | 1A | 5 mA | - | 60dB ~ 62dB (120Hz ~ 1kHz) | - | Over Temperature | -20°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
MCA1117C-2.5-TPInterface |
3,533 |
|
Datasheet | - | TO-243AA | Bulk | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.5V @ 800mA | 800mA | 5 mA | - | - | - | - | -25°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89 |
|
|
MCA1117C-5.0-TPInterface |
2,661 |
|
Datasheet | - | TO-243AA | Bulk | Active | Positive | Fixed | 1 | 15V | 5V | - | 1.5V @ 800mA | 800mA | 5 mA | - | - | - | - | -25°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89 |
|
|
MCA1117C-1.8-TPInterface |
1,705 |
|
Datasheet | - | TO-243AA | Bulk | Active | Positive | Fixed | 1 | 15V | 1.8V | - | 1.5V @ 800mA | 800mA | 5 mA | - | - | - | - | -25°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89 |
|
AP2120N-1.3TRG1IC REG LINEAR 1.3V 150MA SOT23 |
3,545 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.3V | - | 0.8V @ 200mA | 150mA | 50 µA | - | 65dB (1kHz) | - | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
AP2120N-1.5TRG1IC REG LINEAR 1.5V 150MA SOT23 |
3,611 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.6V @ 200mA | 150mA | 50 µA | - | 65dB (1kHz) | - | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
AP2120N-3.2TRG1IC REG LINEAR 3.2V 150MA SOT23 |
2,421 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.2V | - | 0.5V @ 150mA | 150mA | 50 µA | - | 65dB (1kHz) | - | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
LDI1117-ADHVR SOT-223 20V 1.25V 13.65V |
4,270 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Adjustable | 1 | 15V | 1.25V | 13.65V | 1.25V @ 1A | 1.35A | 10 mA | - | - | Current Limit | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
,TO-226_straightlead.jpg "MC78L06BP-AP")
|
MC78L06BP-APIC REG LINEAR 6V 100MA TO92 |
1,087 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 30V | 6V | - | 1.7V @ 40mA (Typ) | 100mA | 6 mA | - | 46dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92 |
|
MC79L09BP-APIC REG LINEAR -9V 100MA TO92 |
3,627 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | Negative | Fixed | 1 | -30V | -9V | - | - | 100mA | 6 mA | - | 64dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
