IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGTQ200DA65T3GIGBT MODULE 650V 200A 483W SP3F |
9,664 |
|
Datasheet | - | Module | Bulk | Active | - | Boost Chopper | 650 V | 200 A | 483 W | 2.2V @ 15V, 200A | 200 µA | 12 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
APTGTQ200SK65T3GIGBT MODULE 650V 200A 483W SP3F |
5,448 |
|
Datasheet | - | Module | Bulk | Active | - | Buck Chopper | 650 V | 200 A | 483 W | 2.2V @ 15V, 200A | 200 µA | 12 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
APTGTQ50TA65T3GIGBT MODULE 650V 50A 125W SP3F |
3,156 |
|
Datasheet | - | Module | Bulk | Active | - | Three Phase Inverter | 650 V | 50 A | 125 W | 2.2V @ 15V, 50A | 50 µA | 3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
APTGT25X120T3GIGBT MODULE 1200V 40A 156W SP3 |
5,318 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 40 A | 156 W | 2.1V @ 15V, 25A | 250 µA | 1.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGLQ40DDA120CT3GIGBT MODULE 1200V 75A 250W SP6 |
6,806 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 1200 V | 75 A | 250 W | 2.4V @ 15V, 40A | 100 µA | 2.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
|
|
APTGT50DU120TGIGBT MODULE 1200V 75A 277W SP4 |
5,508 |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

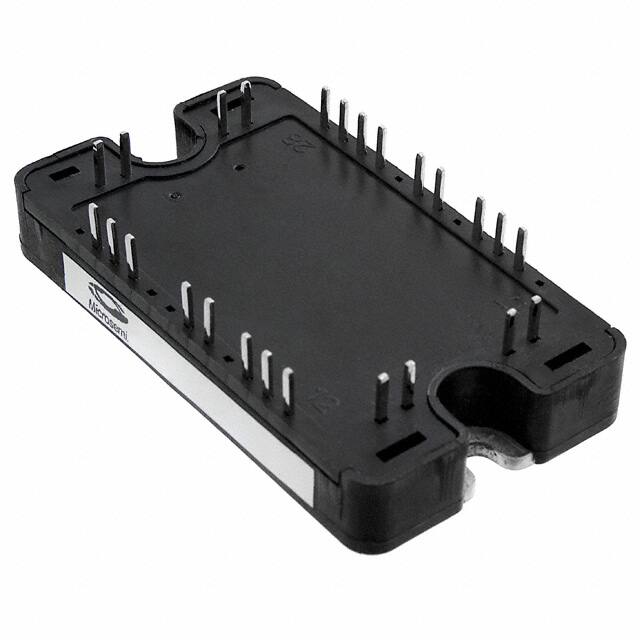

APTGT100H60T3GIGBT MODULE 600V 150A 340W SP3 |
2,282 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT100DH60TGIGBT MODULE 600V 150A 340W SP4 |
2,891 |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|

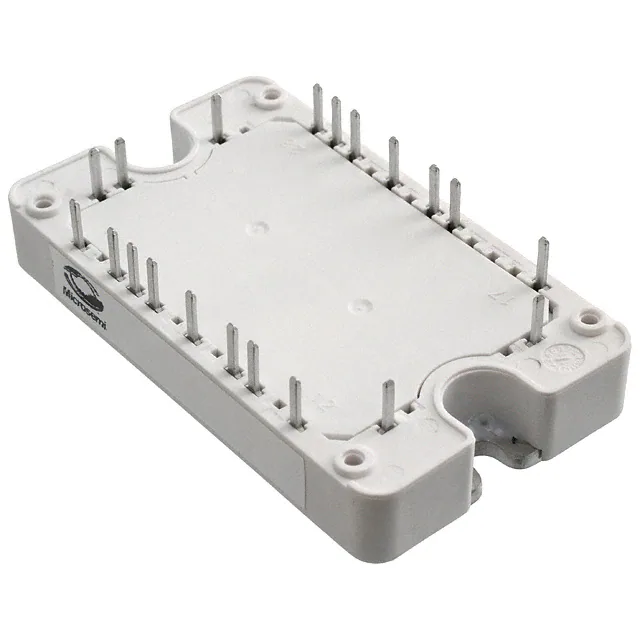

APTCV60HM45RT3GIGBT MODULE 600V 50A 250W SP3 |
3,997 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT150A60T3AGIGBT MODULE 600V 225A 600W SP3 |
9,784 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 225 A | 600 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
