IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

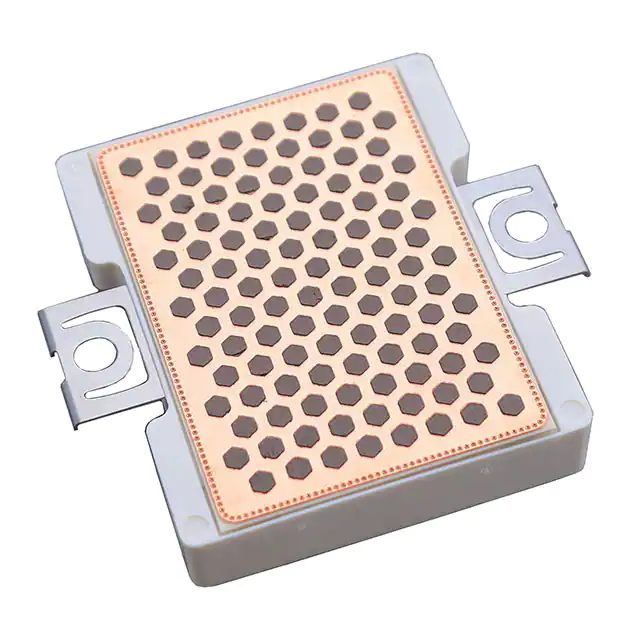

FS100R12W2T7PBPSA1LOW POWER EASY AG-EASY2B-711 |
19 |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | - | - | 9 µA | 21.7 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
DF80R12W2H3FB11BPSA1IGBT MOD 1200V 20A 20MW |
13 |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 20 A | - | 1.7V @ 15V, 20A | 1 mA | 2.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP50R12KT3BOSA1IGBT MOD 1200V 75A 280W |
7 |
|
Datasheet | - | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FP35R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2C-211 |
9 |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2C |
|
|
FP50R12N2T7BPSA2LOW POWER ECONO |
5 |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DF300R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 |
15 |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 90 A | - | 2V @ 15V, 150A | 26 µA | 2.95 nF @ 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP75R12N3T7BPSA1LOW POWER ECONO |
10 |
|
Datasheet | EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 13 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FP75R12N2T7BPSA2LOW POWER ECONO |
4 |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.55V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP40R12KT3BPSA1LOW POWER ECONO |
17 |
|
Datasheet | - | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 55 A | 105 W | 2.3V @ 15V, 40A | 5 mA | 2.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
|
DDB6U134N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-211 |
12 |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | - | Single Chopper | 1200 V | 125 A | 400 W | 2.6V @ 15V, 75A | 1 mA | 5.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
