IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS35R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
12 |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 55 A | 210 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DDB6U180N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-411 |
15 |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 140 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FF225R17ME7B11BPSA1ECONODUAL3 MODULE WITH TRENCHSTO |
9 |
|
Datasheet | EconoDUAL™ 3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 225 A | - | 1.85V @ 15V, 225A | 5 mA | 22.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
FS50R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
7 |
|
Datasheet | - | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 75 A | 270 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FS150R12N2T7B54BPSA1LOW POWER ECONO |
6 |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
F1225R12KT4GBOSA1IGBT MOD 1200V 25A 160W |
8 |
|
Datasheet | EconoPACK™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FS150R12KT3BOSA1IGBT MOD 1200V 200A 700W |
8 |
|
Datasheet | EconoPACK™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 700 W | 2.15V @ 15V, 150A | 5 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS75R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
11 |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FS75R17KE3BOSA1IGBT MOD 1700V 130A 465W |
8 |
|
Datasheet | - | Module | Tray | Active | - | Full Bridge | 1700 V | 130 A | 465 W | 2.45V @ 15V, 75A | 5 mA | 6.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

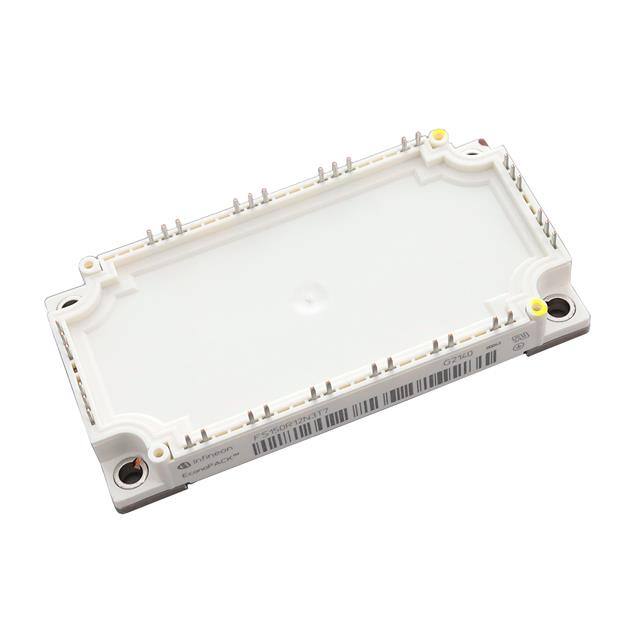

FS150R12N3T7BPSA1LOW POWER ECONO AG-ECONO3B-711 |
2 |
|
Datasheet | EasyPACK™3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
