IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP15R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
9 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | - | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
|

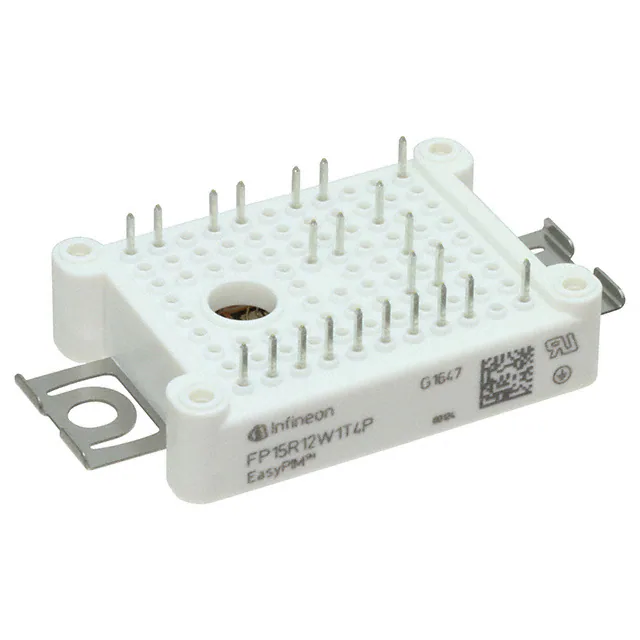

FP15R12W1T4PBPSA1IGBT MOD 1200V 30A 20MW |
29 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 30 A | - | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP15R12W1T7PBPSA1LOW POWER EASY AG-EASY1B-1 |
13 |
|
Datasheet | EasyPIM™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | - | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
FP25R12W1T7B11BPSA1IGBT MODULE 1200V 25A 20MW EASY |
24 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | 1.6V @ 15V, 25A (Typ) | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C | Chassis Mount | AG-EASY1B-2 |
|
|
FP25R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
13 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
F3L75R12W1H3B27BOMA1IGBT MOD 1200V 45A 275W |
13 |
|
Datasheet | - | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 45 A | 275 W | 1.7V @ 15V, 30A | 1 mA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP25R12W2T7B11BPSA1LOW POWER EASY |
2 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | 1.6V @ 15V, 25A | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
FP25R12W1T7PBPSA1LOW POWER EASY AG-EASY1B-711 |
20 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
FS75R17W2E4PB11BPSA1LOW POWER EASY |
18 |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 45 A | - | 2.3V @ 15V, 75A | 35 µA | 6.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP35R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
9 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | - | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
