Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0426.821NLFIXED IND 820NH 13A 8 MOHM SMD |
1,400 |
|
Datasheet | PG0426NL | Nonstandard | Tray | Active | Wirewound | - | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PG0426.471NLTFIXED IND 470NH 20A 3.4 MOHM SMD |
1,475 |
|
Datasheet | PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 20 A | 26A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

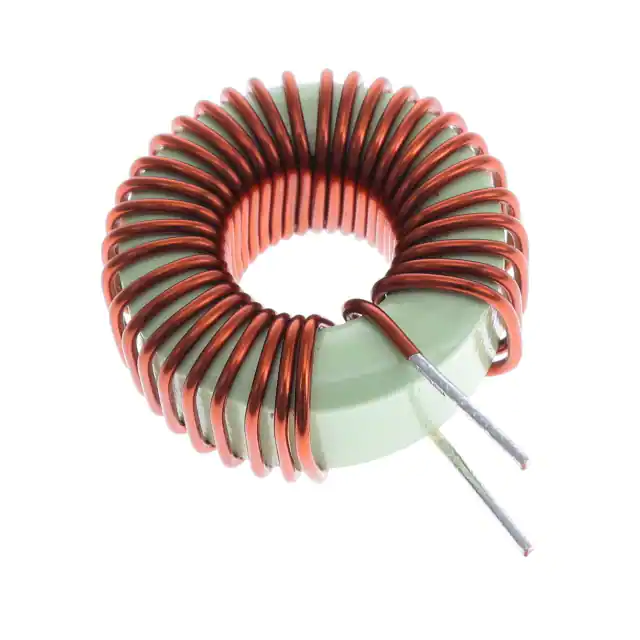

PE-92112NLFIXED IND 100UH 5A 34 MOHM TH |
645 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia x 0.700" W (35.56mm x 17.78mm) | - |
|
PA5119.152NLTFIXED IND 1.5UH 12A 6.0 MOHM |
1,238 |
|
Datasheet | PA5119.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±10% | 12 A | 21A | Shielded | 6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.197" (5.00mm) |
|
PE-53608NLTFIXED IND 192UH 900MA 560MOHM SM |
279 |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 192 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
P0456NLTFIXED IND 6.3UH 2A 30 MOHM SMD |
600 |
|
Datasheet | Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 6.3 µH | ±15% | 2 A | - | Shielded | 30mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
PE-52649NLFIXED IND 680UH 850MA 1.5 OHM TH |
1,484 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 680 µH | ±20% | 850 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|

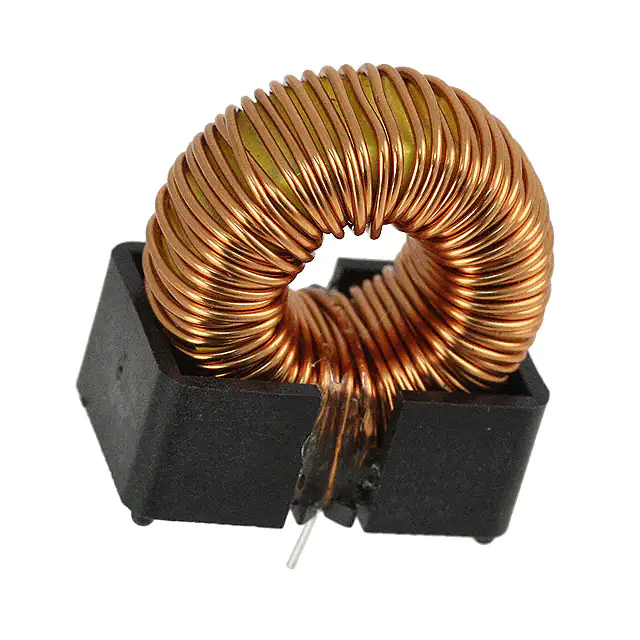

PE-53114NLFIXED IND 470UH 640MA 160MOHM TH |
400 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | ±20% | 640 mA | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
|
PA5120.481NLTFIXED IND 480NH 32A 1.7MOHM SMD |
3,775 |
|
Datasheet | PA5120.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 480 nH | ±10% | 32 A | 55A | Shielded | 1.7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.551" W (17.30mm x 14.00mm) | 0.272" (6.90mm) |
|
PE-53613NLFIXED IND 645UH 740MA 1.25OHM SM |
157 |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 645 µH | - | 740 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
