Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM5432.472NLTFIXED IND 4.7UH 10.5A 14.4 MOHM |
1,898 |
|
Datasheet | PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10.5 A | - | Shielded | 14.4mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
|
PM5432.103NLTFIXED IND 10UH 7A 29.82MOHM SMD |
998 |
|
Datasheet | PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 7 A | - | Shielded | 29.82mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
|
PM5432.153NLTFIXED IND 15UH 6A 43.75MOHM SMD |
116 |
|
Datasheet | PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 6 A | - | Shielded | 43.75mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|

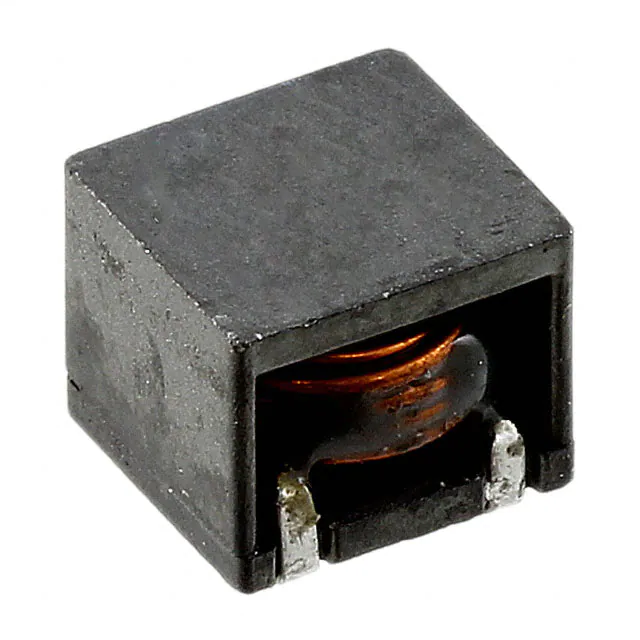

PG0871.102NLTFIXED IND 1UH 17.5A 2.3 MOHM SMD |
2,775 |
|
Datasheet | PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 17.5 A | 17.5A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
PG0871.222NLTFIXED IND 2.2UH 9.5A 7.6MOHM SMD |
1,391 |
|
Datasheet | PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 9.5 A | 12A | Shielded | 7.6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
PE-53606NLTFIXED IND 114UH 940MA 405MOHM SM |
4,111 |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 114 µH | - | 940 mA | - | Unshielded | 405mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
PE-53821SNLFIXED IND 78UH 820MA 300MOHM SMD |
562 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

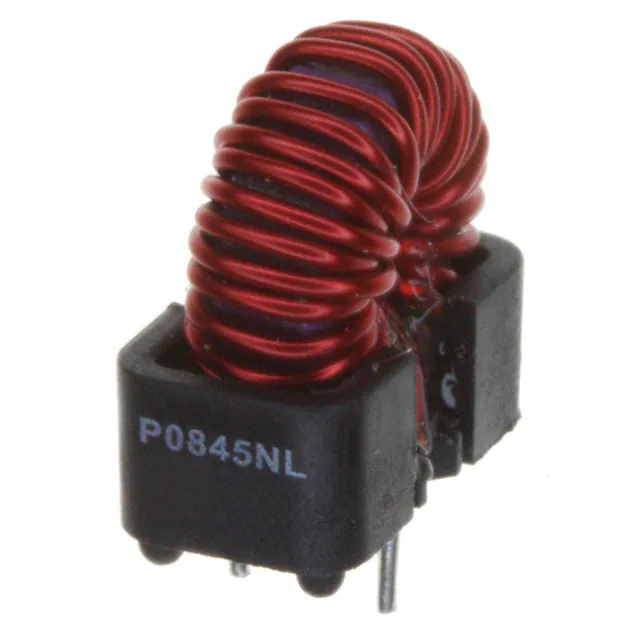

P0845NLFIXED IND 10.2UH 4.3A 26 MOHM TH |
947 |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 10.2 µH | ±20% | 4.3 A | - | Shielded | 26mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.580" L x 0.350" W (14.74mm x 8.89mm) | 0.715" (18.17mm) |
|
PG0702.102NLTFIXED IND 1UH 26A 1.76 MOHM SMD |
2,191 |
|
Datasheet | PG0702NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 26 A | 26A | Shielded | 1.76mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
PE-92100NLFIXED IND 25UH 2.6A 43 MOHM TH |
1,299 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 25 µH | ±20% | 2.6 A | - | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.550" Dia x 0.250" W (13.97mm x 6.35mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
