Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4320.223NLTFIXED IND 22UH 5.6A 30 MOHM SMD |
1,490 |
|
Datasheet | PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 5.6 A | 6.8A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|

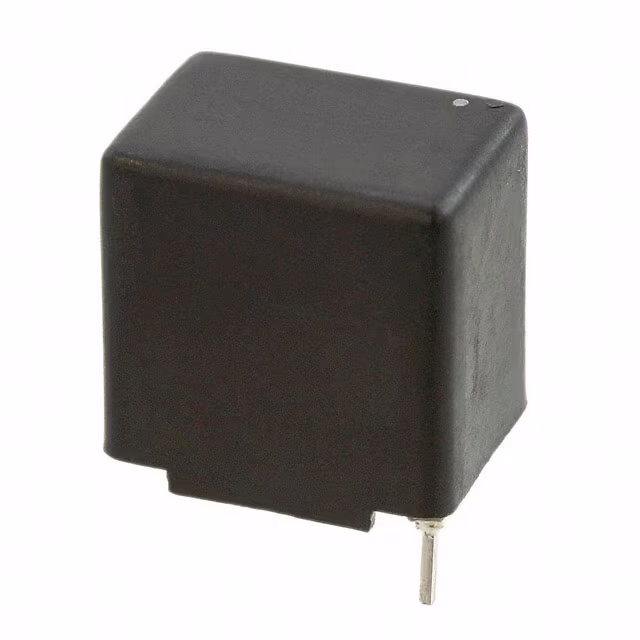

PE-52646NLFIXED IND 220UH 1.5A 420 MOHM TH |
1,283 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|

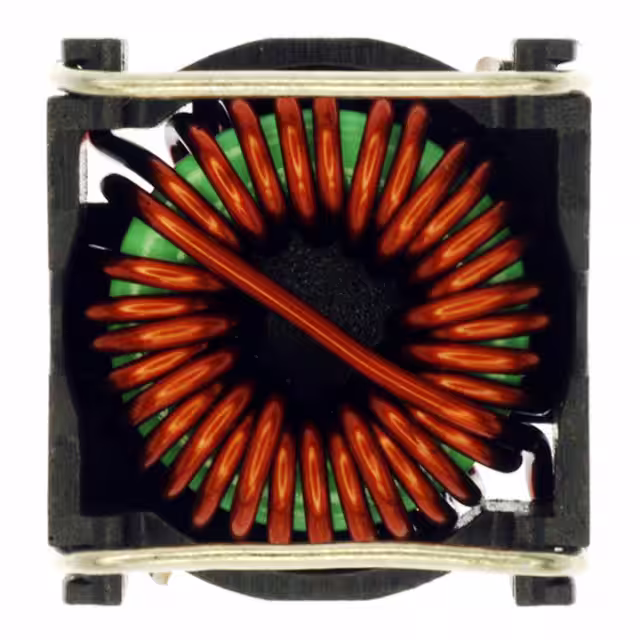

P0846SNLFIXED IND 14.8UH 5A 27 MOHM SMD |
822 |
|
Datasheet | LCI-50 | Nonstandard | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PA4793.501HLTFIXED IND 500NH 40A 1.15MOHM SMD |
1,000 |
|
Datasheet | PA4793.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | ±10% | 40 A | 60A | Shielded | 1.15mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | SMD | 0.575" L x 0.327" W (14.60mm x 8.30mm) | 0.260" (6.60mm) |
|
PA5300.221HLTIND PWR BEAD 220NH 80A SMD |
786 |
|
Datasheet | PA5300.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 80 A | 80A | Shielded | 0.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.610" (15.50mm) |
|
PE-53361NLFIXED IND 530NH 23.8A 3 MOHM SMD |
875 |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 530 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.865" L x 0.715" W (21.97mm x 18.16mm) | 0.390" (9.91mm) |
|
P0846SNLTFIXED IND 15UH 5A 27 MOHM SMD |
707 |
|
Datasheet | LCI-50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 15 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PG0426.101NLTFIXED IND 100NH 34.5A 1.5MOHM SM |
5,265 |
|
Datasheet | PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±20% | 34.5 A | 60A | Shielded | 1.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

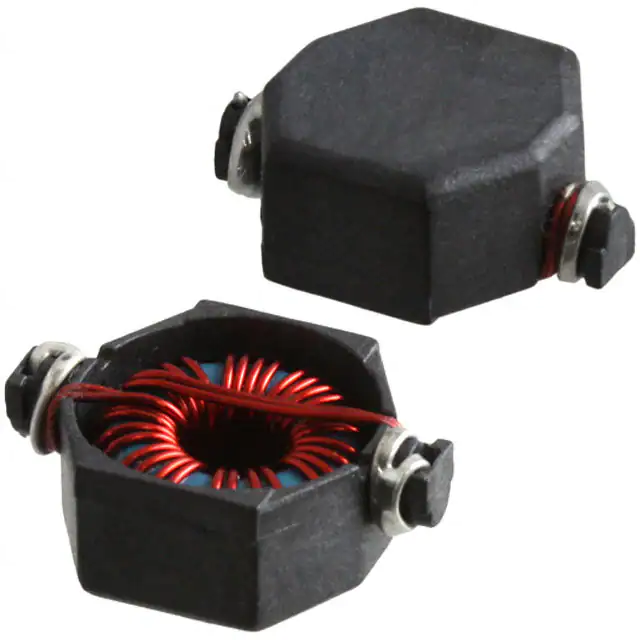

P0438NLTFIXED IND 12.2UH 500MA 161 MOHM |
8,563 |
|
Datasheet | Ros 1 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 12.2 µH | ±15% | 500 mA | - | Shielded | 161mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.335" L x 0.225" W (8.51mm x 5.72mm) | 0.125" (3.18mm) |
|

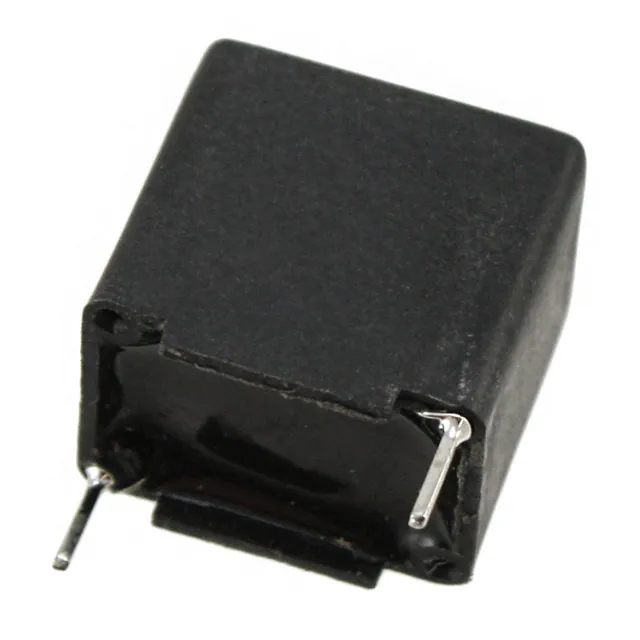

PE-52645NLFIXED IND 150UH 1.7A 420 MOHM TH |
617 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 150 µH | ±20% | 1.7 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
