Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

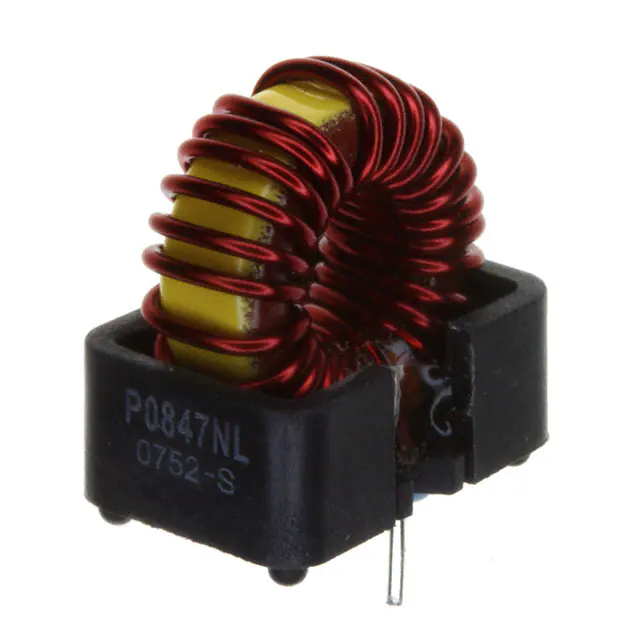

P0847NLFIXED IND 10UH 5A 25 MOHM TH |
812 |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 10 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.08mm x 11.43mm) | 0.700" (17.78mm) |
|
PA2240.472NLTFIXED IND 4.7UH 13.6A 13.5 MOHM |
2,305 |
|
Datasheet | PA2240.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 13.6 A | 14A | Unshielded | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.276" (7.00mm) |
|
PE-53632NLTFIXED IND 16.2UH 2.7A 72MOHM SMD |
55,699 |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 16.2 µH | - | 2.7 A | - | Unshielded | 72mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-53661NLTFIXED IND 2.5UH 8A 8.3 MOHM SMD |
1,350 |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.5 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PM2205.222NLTFIXED IND 2.2UH 13A 8.5MOHM SMD |
2,119 |
|
Datasheet | PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 13 A | 16A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
PM2205.821NLTFIXED IND 820NH 21A 4.18MOHM SMD |
1,380 |
|
Datasheet | PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 21 A | 24A | Shielded | 4.18mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|

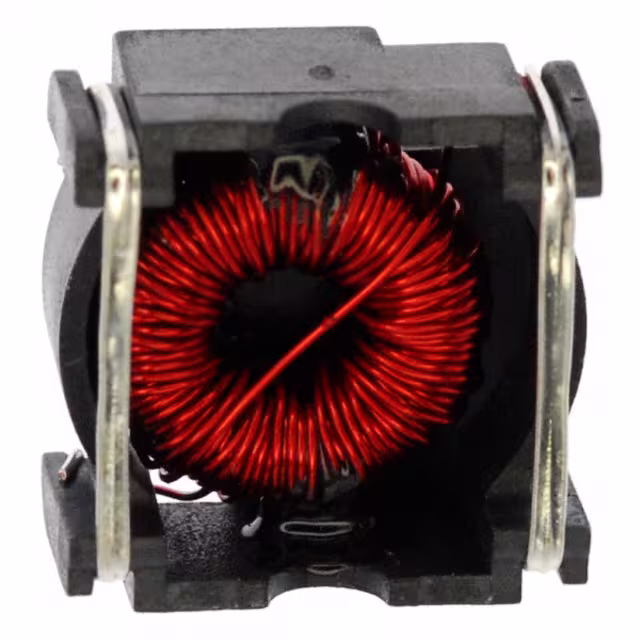

PE-53819SNLTFIXED IND 173UH 540MA 600MOHM SM |
978 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53810SNLFIXED IND 176UH 300MA 1.4OHM SMD |
774 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 176 µH | ±20% | 300 mA | - | Shielded | 1.4Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|

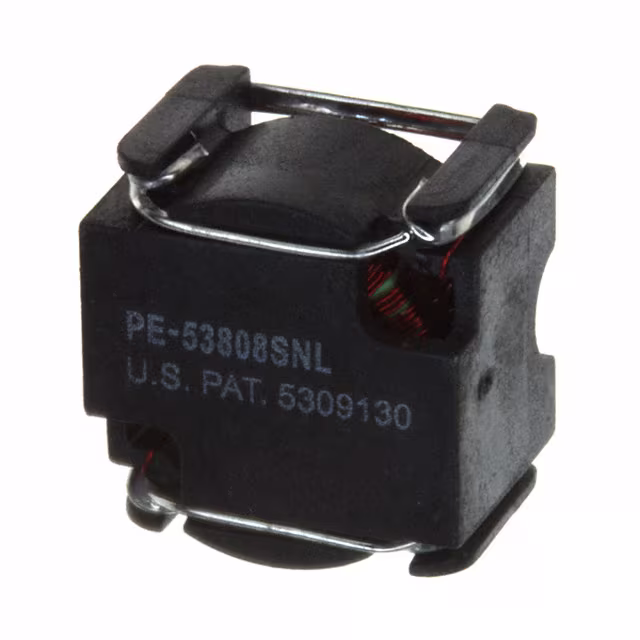

PE-53808SNLFIXED IND 374UH 200MA 2.7OHM SMD |
544 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 374 µH | ±20% | 200 mA | - | Shielded | 2.7Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
PG0936.113NLTFIXED IND 11UH 14A 7 MOHM SMD |
1,439 |
|
Datasheet | PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 11 µH | ±20% | 14 A | 14A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
