Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

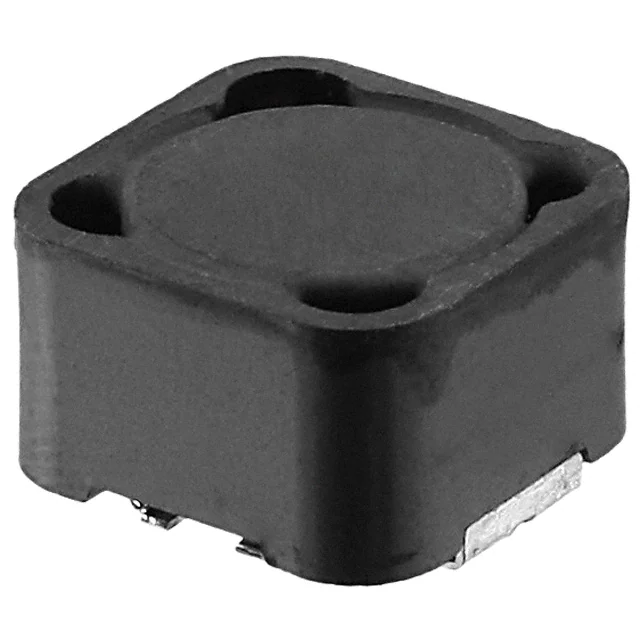

P1173.602NLTFIXED IND 6UH 6A 16.5 MOHM SMD |
2,117 |
|
Datasheet | P1173NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6 µH | ±30% | 6 A | 6.9A | Shielded | 16.5mOhm Max | - | 30MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
P1172.333NLTFIXED IND 33UH 3A 64.8 MOHM SMD |
1,405 |
|
Datasheet | P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3 A | 3A | Shielded | 64.8mOhm Max | - | 10MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
P1173.223NLTFIXED IND 22UH 3.8A 42 MOHM SMD |
836 |
|
Datasheet | P1173NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | 12MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|

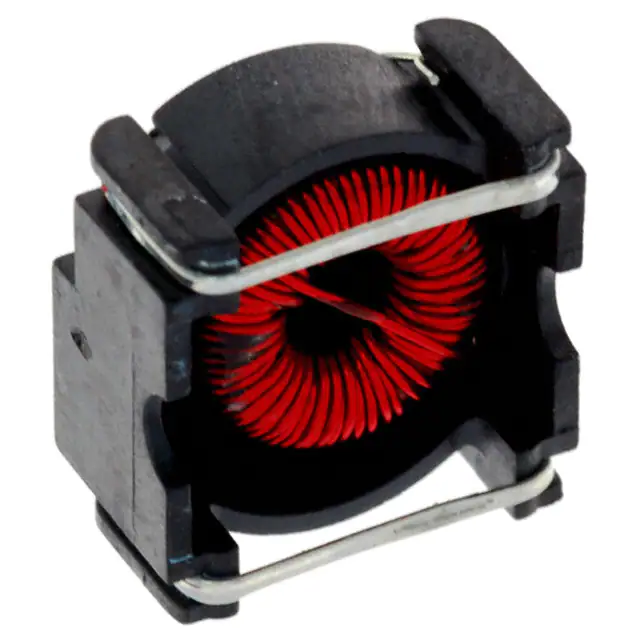

PE-53822SNLFIXED IND 54UH 1A 200 MOHM SMD |
170 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 54 µH | ±20% | 1 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53630NLFIXED IND 1.01UH 3.4A 11MOHM SMD |
1,964 |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 1.01 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PA5005.182NLTFIXED IND 1.8UH 16A 7.1MOHM SMD |
762 |
|
Datasheet | PA5005.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±20% | 16 A | 18.5A | Shielded | 7.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
PA4321.683NLTFIXED IND 68UH 1.6A 176 MOHM SMD |
1,585 |
|
Datasheet | PA4321 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.6 A | 1.28A | Shielded | 176mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.402" W (10.00mm x 10.20mm) | 0.201" (5.10mm) |
|
PA4792.231HLTFIXED IND 230NH 46A 0.47MOHM SMD |
1,240 |
|
Datasheet | PA4792.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 230 nH | ±10% | 46 A | 100A | Shielded | 0.47mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | SMD | 0.874" L x 0.323" W (22.20mm x 8.20mm) | 0.285" (7.25mm) |
|
PE-53934SNLFIXED IND 17UH 3A 50 MOHM SMD |
844 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 17 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53830SNLFIXED IND 77UH 1.54A 200MOHM SMD |
701 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 77 µH | ±20% | 1.54 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
