Arrays, Signal Transformers
Review Arrays, Signal Transformers Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRQ127-821-RINDUCT ARRAY 2 COIL 818.1UH SMD |
341 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 818.1 µH | 3.272 mH | ±20% | 650 mA | 325 mA | 1.27 A | 633 mA | 1.47Ohm | 5.88Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
HCSA1V1008-150-RINDUCT ARRAY SMD |
800 |
|
Datasheet | HCSA1V1008 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - |
|
|
HCSA1V1008-100-RINDUCT ARRAY SMD |
400 |
|
Datasheet | HCSA1V1008 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - |
|
|
HCSA1V1008-220-RINDUCT ARRAY SMD |
230 |
|
Datasheet | HCSA1V1008 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - |
|
CTX8-1P-RINDUCT ARRAY 2 COIL 8.08UH SMD |
740 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.08 µH | 32.33 µH | ±20% | 1.8 A | 900 mA | - | - | 52mOhm Max | 207mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
CTX20-1P-RINDUCT ARRAY 2 COIL 20.46UH SMD |
214 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.46 µH | 81.83 µH | ±20% | 1 A | 500 mA | - | - | 158mOhm Max | 634mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

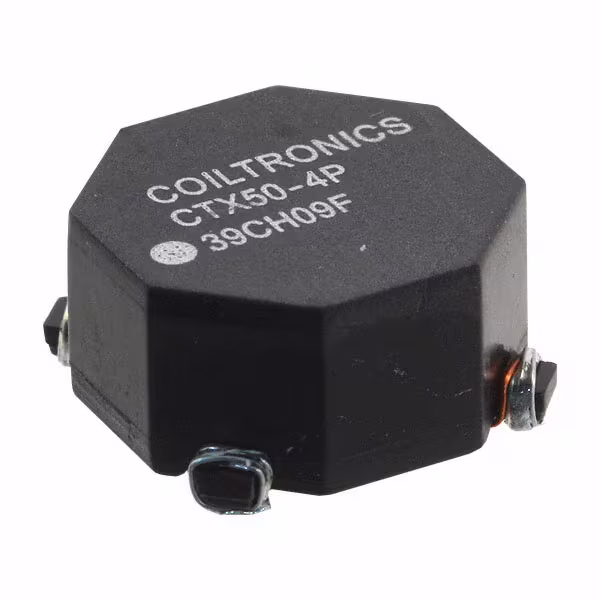

CTX50-4P-RINDUCT ARRAY 2 COIL 48.8UH SMD |
149 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 48.8 µH | 195.2 µH | ±20% | 1.2 A | 600 mA | - | - | 201mOhm Max | 805mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
SDQ25-470-RINDUCT ARRAY 2 COIL 47.43UH SMD |
2,180 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 47.43 µH | 189.7 µH | ±20% | 749 mA | 374 mA | 584 mA | 292 mA | 446.1mOhm | 1.78Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
CTX150-2P-RINDUCT ARRAY 2 COIL 148.1UH SMD |
1,600 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 148.1 µH | 592.42 µH | ±20% | 560 mA | 280 mA | - | - | 665mOhm Max | 2.66Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX300-4A-RINDUCT ARRAY 2 COIL 302.8UH SMD |
297 |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 302.8 µH | 1.2 mH | ±25% | 750 mA | 370 mA | 760 mA | 380 mA | 787mOhm Max | 3.148Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
