Arrays, Signal Transformers
Review Arrays, Signal Transformers Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

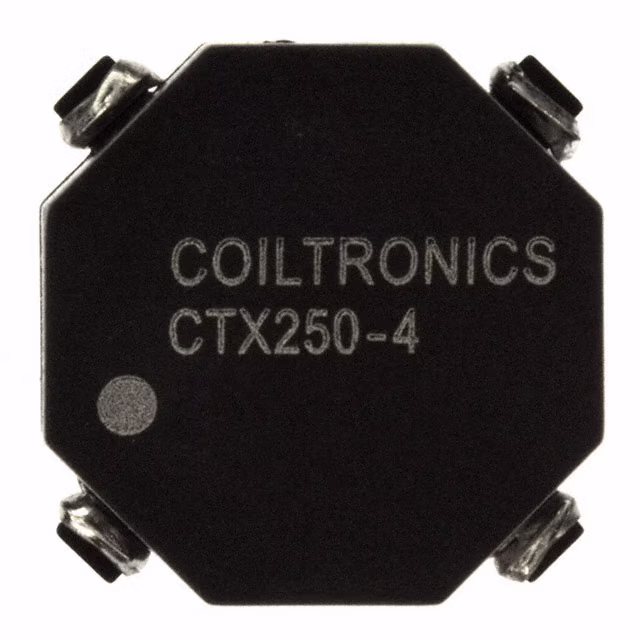

CTX250-4-RINDUCT ARRAY 2 COIL 250UH SMD |
1,503 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 250 µH | 1 mH | ±20% | 650 mA | 330 mA | - | - | - | - | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX100-1P-RINDUCT ARRAY 2 COIL 99.01UH SMD |
1,505 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.01 µH | 396.06 µH | ±20% | 540 mA | 270 mA | - | - | 557mOhm Max | 2.227Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
CTX200-2P-RINDUCT ARRAY 2 COIL 201.59UH SMD |
2,780 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 201.59 µH | 806.34 µH | ±20% | 460 mA | 230 mA | - | - | 951mOhm Max | 3.804Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX68-4P-RINDUCT ARRAY 2 COIL 67.37UH SMD |
600 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.37 µH | 269.5 µH | ±20% | 1.1 A | 550 mA | - | - | 238mOhm Max | 952mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

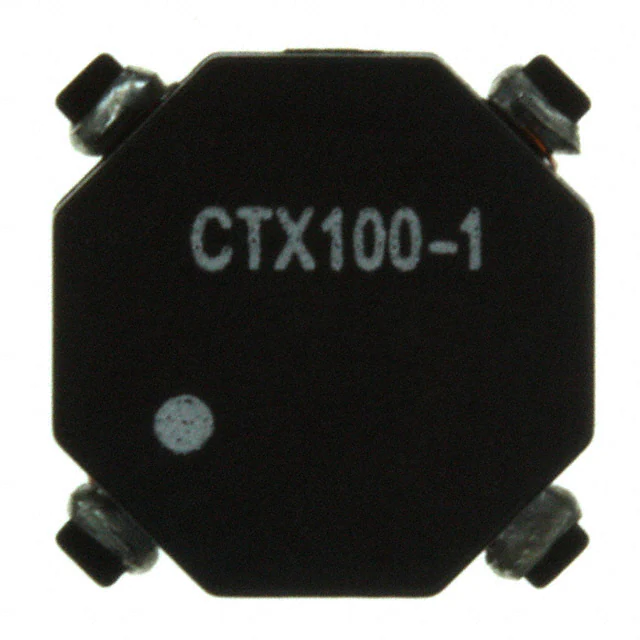

CTX100-1-RINDUCT ARRAY 2 COIL 99.23UH SMD |
1,362 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.23 µH | 396.9 µH | ±20% | 440 mA | 220 mA | - | - | 784mOhm Max | 3.137Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

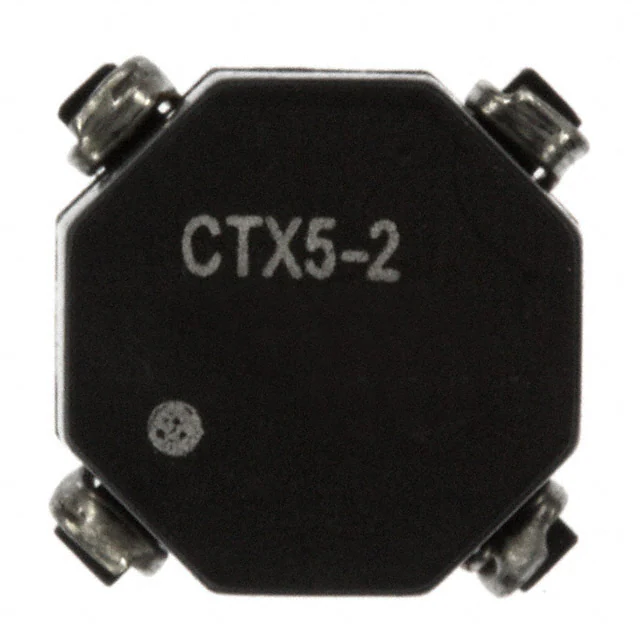

CTX5-2-RINDUCT ARRAY 2 COIL 4.7UH SMD |
565 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±20% | 3 A | 1.5 A | - | - | 21mOhm Max | 84mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

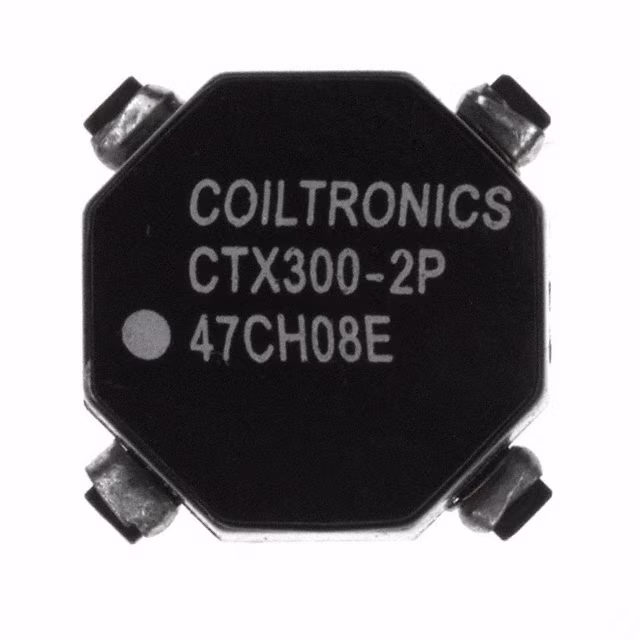

CTX300-2P-RINDUCT ARRAY 2 COIL 300.42UH SMD |
2,410 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 300.42 µH | 1.2 mH | ±20% | 420 mA | 210 mA | - | - | 1.176Ohm Max | 4.703Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX100-4A-RINDUCT ARRAY 2 COIL 100.57UH SMD |
900 |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 100.57 µH | 402.3 µH | ±25% | 1.37 A | 690 mA | 1.32 A | 660 mA | 235mOhm Max | 939mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX20-4A-RINDUCT ARRAY 2 COIL 19.58UH SMD |
124 |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.58 µH | 78.3 µH | ±25% | 3.62 A | 1.81 A | 3 A | 1.5 A | 34mOhm Max | 135mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX15-4A-RINDUCT ARRAY 2 COIL 14.7UH SMD |
894 |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.7 µH | 58.81 µH | ±25% | 3.87 A | 1.94 A | 3.46 A | 1.73 A | 29mOhm Max | 117mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
