Arrays, Signal Transformers
Review Arrays, Signal Transformers Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

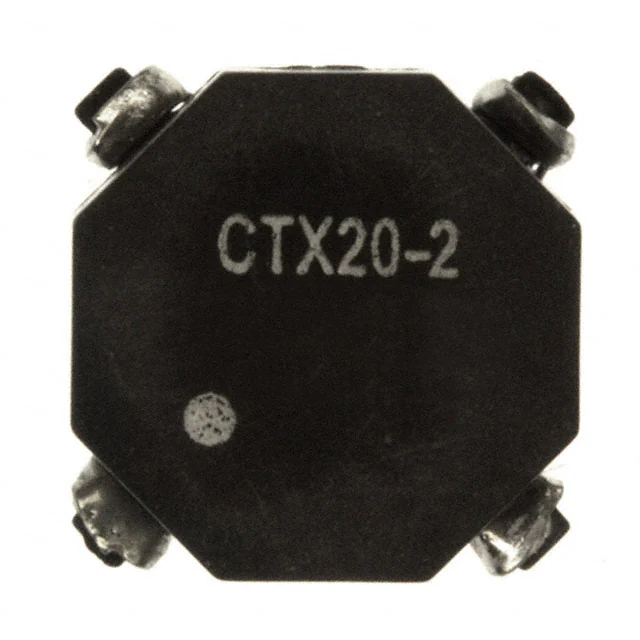

CTX20-2-RINDUCT ARRAY 2 COIL 20.73UH SMD |
1,188 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.73 µH | 82.91 µH | ±20% | 1.3 A | 650 mA | - | - | 107mOhm Max | 426mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX150-4A-RINDUCT ARRAY 2 COIL 153.5UH SMD |
600 |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 153.5 µH | 613.9 µH | ±25% | 1.1 A | 550 mA | 1.07 A | 540 mA | 365mOhm Max | 1.462Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX200-1P-RINDUCT ARRAY 2 COIL 198.41UH SMD |
1,100 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 198.41 µH | 793.65 µH | ±20% | 360 mA | 180 mA | - | - | 1.208Ohm Max | 4.831Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX300-4P-RINDUCT ARRAY 2 COIL 298.93UH SMD |
600 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.93 µH | 1.2 mH | ±20% | 540 mA | 270 mA | - | - | 1.003Ohm Max | 4.011Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

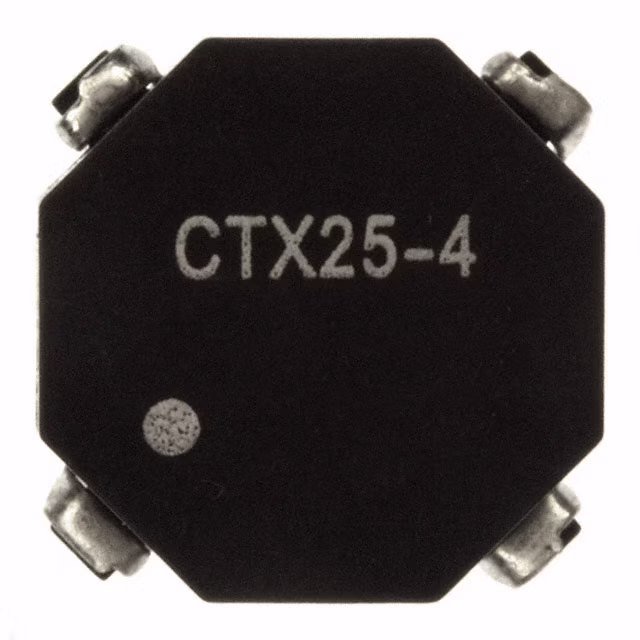

CTX25-4-RINDUCT ARRAY 2 COIL 25.92UH SMD |
693 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 25.92 µH | 103.68 µH | ±20% | 2 A | 1 A | - | - | 63mOhm Max | 253mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX15-4-RINDUCT ARRAY 2 COIL 14.16UH SMD |
1,266 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.16 µH | 56.64 µH | ±20% | 3 A | 1.5 A | - | - | 24mOhm Max | 96mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

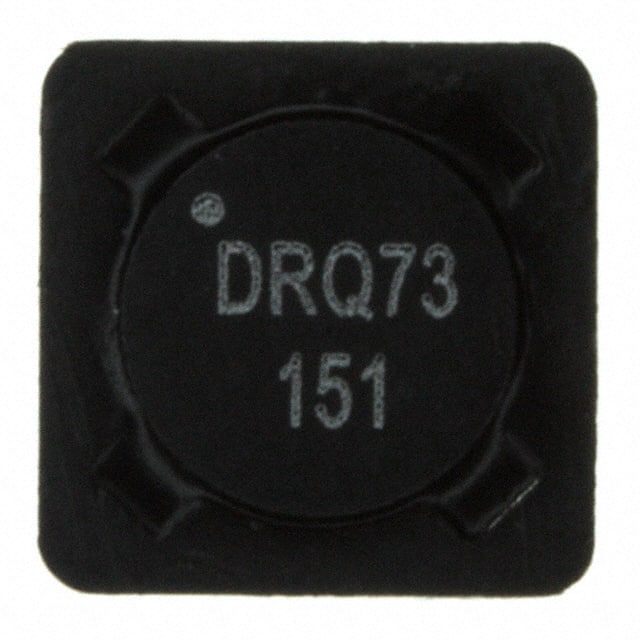

DRQ73-151-RINDUCT ARRAY 2 COIL 150.9UH SMD |
1,350 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 150.9 µH | 603.6 µH | ±20% | 580 mA | 289 mA | 650 mA | 320 mA | 851mOhm | 3.41Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DRQ74-8R2-RINDUCT ARRAY 2 COIL 8.566UH SMD |
637 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.566 µH | 34.26 µH | ±20% | 2.53 A | 1.27 A | 3.4 A | 1.7 A | 44.1mOhm | 177mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
|
DRQ125-1R5-RINDUCT ARRAY 2 COIL 1.478UH SMD |
1,050 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.478 µH | 5.912 µH | ±20% | 13.8 A | 6.89 A | 18.3 A | 9.15 A | 2.9mOhm | 11.4mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
ACDL1V1004-5R6-RIND AUDIO CLASS D 5.6UH 6.0A |
590 |
|
Datasheet | ACDL1V | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.472" L x 0.378" W (12.00mm x 9.60mm) | - |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
