Arrays, Signal Transformers
Review Arrays, Signal Transformers Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX300-4-RINDUCT ARRAY 2 COIL 298.12UH SMD |
1,402 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.12 µH | 1.2 mH | ±20% | 620 mA | 310 mA | - | - | 672mOhm Max | 2.687Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX20-4-RINDUCT ARRAY 2 COIL 19.6UH SMD |
1,046 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.6 µH | 78.4 µH | ±20% | 2.1 A | 1.05 A | - | - | 55mOhm Max | 220mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
DRQ73-680-RINDUCT ARRAY 2 COIL 68.91UH SMD |
1,155 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 68.91 µH | 275.6 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 358mOhm | 1.43Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

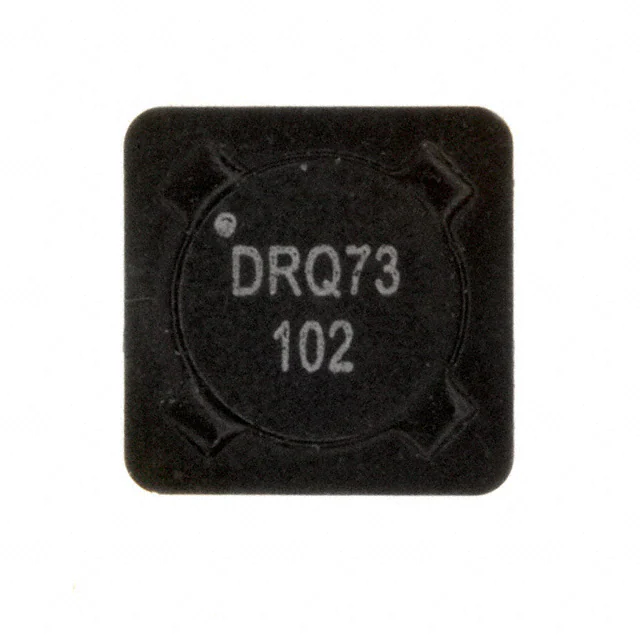

DRQ73-102-RINDUCT ARRAY 2 COIL 995UH SMD |
1,985 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 995 µH | 3.98 mH | ±20% | 260 mA | 128 mA | 250 mA | 130 mA | 4.34Ohm | 17.36Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DRQ74-102-RINDUCT ARRAY 2 COIL 1.009MH SMD |
2,157 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.009 mH | 4.036 mH | ±20% | 270 mA | 135 mA | 310 mA | 160 mA | 3.89Ohm | 15.6Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
DRAQ127-330-RINDUCT ARRAY 2 COIL 32UH SMD |
508 |
|
Datasheet | DRAQ127 | Nonstandard | Tape & Reel (TR) | Active | 2 | 32 µH | 128 µH | ±25% | 3.22 A | 1.61 A | 4.98 A | 2.49 A | 72mOhm Max | 288mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
DRQ125-471-RINDUCT ARRAY 2 COIL 473.1UH SMD |
1,000 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 473.1 µH | 1.892 mH | ±20% | 870 mA | 434 mA | 1.02 A | 510 mA | 718mOhm | 2.87Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ127-102-RINDUCT ARRAY 2 COIL 1.005MH SMD |
909 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.005 mH | 4.02 mH | ±20% | 610 mA | 307 mA | 1.14 A | 571 mA | 1.66Ohm | 6.64Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRQ125-681-RINDUCT ARRAY 2 COIL 679.8UH SMD |
345 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 679.8 µH | 2.719 mH | ±20% | 700 mA | 350 mA | 850 mA | 425 mA | 1.1Ohm | 4.42Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ73-330-RINDUCT ARRAY 2 COIL 34.41UH SMD |
1,744 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 34.41 µH | 137.6 µH | ±20% | 1.31 A | 653 mA | 1.35 A | 680 mA | 166mOhm | 665mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
