Arrays, Signal Transformers
Review Arrays, Signal Transformers Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRQ127-2R2-RINDUCT ARRAY 2 COIL 2.027UH SMD |
539 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.027 µH | 8.108 µH | ±20% | 12.5 A | 6.23 A | 25.5 A | 12.7 A | 3.73mOhm | 16.1mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
DRQ127-330-RINDUCT ARRAY 2 COIL 33.92UH SMD |
674 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 33.92 µH | 135.7 µH | ±20% | 3.23 A | 1.61 A | 6.22 A | 3.11 A | 60mOhm | 241mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SDQ25-220-RINDUCT ARRAY 2 COIL 22.47UH SMD |
19,038 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 22.47 µH | 89.89 µH | ±20% | 1.01 A | 507 mA | 849 mA | 425 mA | 243.1mOhm | 972.4mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
CTX5-1P-RINDUCT ARRAY 2 COIL 4.83UH SMD |
464 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.83 µH | 19.31 µH | ±20% | 2 A | 1 A | - | - | 40mOhm Max | 161mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

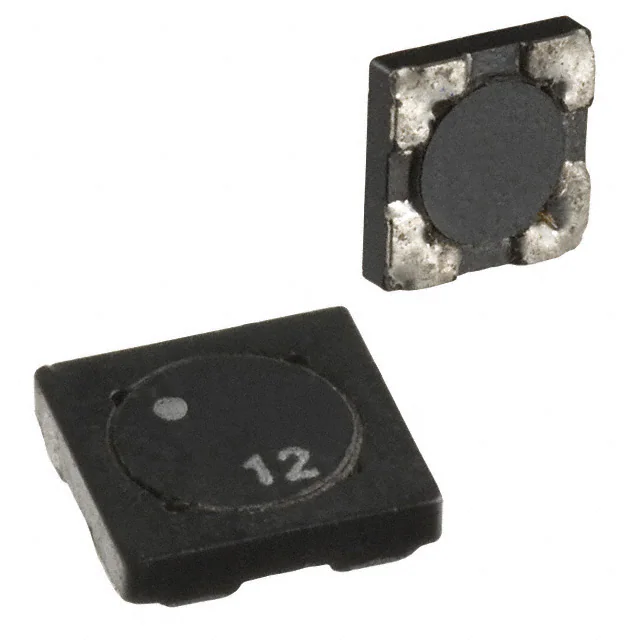

SDQ12-150-RINDUCT ARRAY 2 COIL 15.21UH SMD |
3,776 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 15.21 µH | 60.84 µH | ±20% | 658 mA | 329 mA | 779 mA | 390 mA | 576.6mOhm | 2.31Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
|
SDQ12-8R2-RINDUCT ARRAY 2 COIL 8.41UH SMD |
750 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.41 µH | 33.64 µH | ±20% | 868 mA | 434 mA | 1.05 A | 524 mA | 331.8mOhm | 1.33Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
CTX10-3P-RINDUCT ARRAY 2 COIL 9.79UH SMD |
3,200 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.79 µH | 39.15 µH | ±20% | 2.7 A | 1.35 A | - | - | 33mOhm Max | 131mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX10-1P-RINDUCT ARRAY 2 COIL 9.62UH SMD |
1,296 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.62 µH | 38.48 µH | ±20% | 1.7 A | 850 mA | - | - | 57mOhm Max | 227mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
CTX25-2P-RINDUCT ARRAY 2 COIL 24.79UH SMD |
853 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 24.79 µH | 99.14 µH | ±20% | 1.4 A | 700 mA | - | - | 109mOhm Max | 436mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX100-2P-RINDUCT ARRAY 2 COIL 99.14UH SMD |
1,962 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.14 µH | 396.58 µH | ±20% | 620 mA | 310 mA | - | - | 541mOhm Max | 2.162Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
