TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFD8C4.5L01TVS ESD SOD-882 4.5V 20VE |
5,321 |
|
Datasheet | SOD-882 | SFD8C4.5L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 4.5V | 4.6V | 20V (Typ) | 40A (8/20µs) | - | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
ESDULC3V6AE2-TPTVS DIODES |
8,623 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 5V | 14V | 2.5A (8/20µs) | 35W | No | General Purpose | 0.18pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
VCUT05G1-SD0HG4-08TVS DIODE 5.5VWM 11VC CLP0603 |
9,153 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6.5V | 13V | 6A (8/20µs) | 78W | No | - | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | CLP0603 |
|
|
VCUT03G1-SD0HG4-08TVS DIODE 3.3VWM 13VC CLP0603 |
9,899 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6.5V | 13V | 6A (8/20µs) | 78W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | CLP0603 |
|
|
AOZ8S204BLS-301 CHANNEL BIDIRECTIONAL 0.15PF T |
4,033 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V (Max) | 33V | 6.8V | 8.5A (8/20µs) | 55W | No | USB | 0.15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
CSP5V0AE-TPInterface |
4,470 |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 5V (Max) | 6V | 9.5V | 18A (8/20µs) | 140W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP0201 |
|

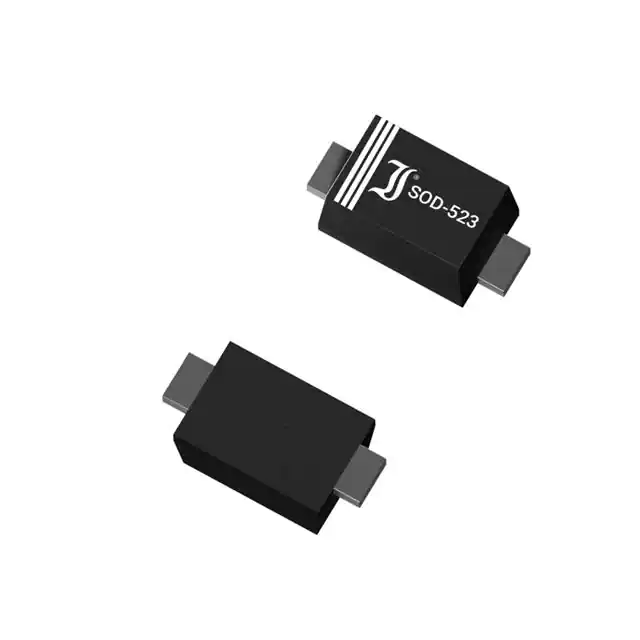

ESD5B5V0WTTVS DIODE 5VWM 12.5VC SOD-523 |
8,252 |
|
Datasheet | SC-79, SOD-523 | - | Bulk | Active | Zener | - | 1 | 5V | 5.8V | 12.5V | 4A (8/20µs) | 50W | No | General Purpose | 32pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
T12S5A-7Surge Protection PP SOD523 T&R 3 |
9,851 |
|
Datasheet | SC-79, SOD-523 | - | Bulk | Active | Zener | 1 | - | 12V | 14.1V | 25V | 12A (8/20µs) | 300W | No | General Purpose | 85pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
MKZ7V5,LM7.5 V ZENER DIODE, SOT23 |
6,498 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | MKZ | Tape & Reel (TR) | Active | Zener | 1 | - | 6V (Max) | 7V | 14V | 9.5A (8/20µs) | 190W | No | General Purpose | 78pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
CSPHSB3V3AE-TPESD,3.3V,CSP0201 |
8,940 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.7V | 8.5V | 20A (8/20µs) | 170W | No | General Purpose | 30pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP0201 |
|
|
CPDZC5V0HA-HFDIODE ESD 5VWM 88W 0201/DFN0603 |
7,204 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 11V | 8A (8/20µs) | 88W | No | General Purpose | 17pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201/DFN0603 |
|
|
SDD8A12L01TVS ESD SOD-882 12V 28V |
7,203 |
|
Datasheet | SOD-882 | SDD8A12L01 | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 28V (Typ) | 8A (8/20µs) | 240W | No | General Purpose | 55pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
D14V0H1U2LP-7BSURGE PROTECTION PP X1-DFN1006-2 |
4,401 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V (Max) | 15V | 32V | 3A (8/20µs) | 96W | No | General Purpose | 76pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
|
D18V0H1U2LP-7BGENERAL PROTECTION PP X1-DFN1006 |
6,398 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 20V | 32V | 11A (8/20µs) | 350W | No | General Purpose | 58pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
|
CPDZD5V0HE-HFDIODE ESD 5VWM 100W 0201/DFN0603 |
8,786 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.6V | 12.5V | 8A (8/20µs) | 100W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN0603-2L |
|
|
VCUT15G1-SD0HG4-08ESD PROTECTION DIODE CLP060315V |
6,736 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 15.8V | 26V | 2.5A (8/20µs) | 65W | No | - | 5.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | CLP0603 |
|
|
VCUT10G1-SD0HG4-08TVS DIODE 10VWM 18VC CLP0603 |
5,325 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 10V (Max) | 11V | 18V | 4A (8/20µs) | 72W | No | General Purpose | 7.7pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | CLP0603 |
|
|
ESD5Z15TVS DIODE 15VWM 30VC SOD-523 |
4,417 |
|
Datasheet | SC-79, SOD-523 | - | Bulk | Active | Zener | 1 | - | 15V | 16.5V | 30V | 6A (8/20µs) | 240W | No | - | 40pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
AOZ8851ADI-071 CHANNEL 7V TVS |
4,111 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 7V (Max) | 6.5V | 13V | 4A (8/20µs) | - | No | General Purpose | 0.22pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (0.62x0.32) |
|

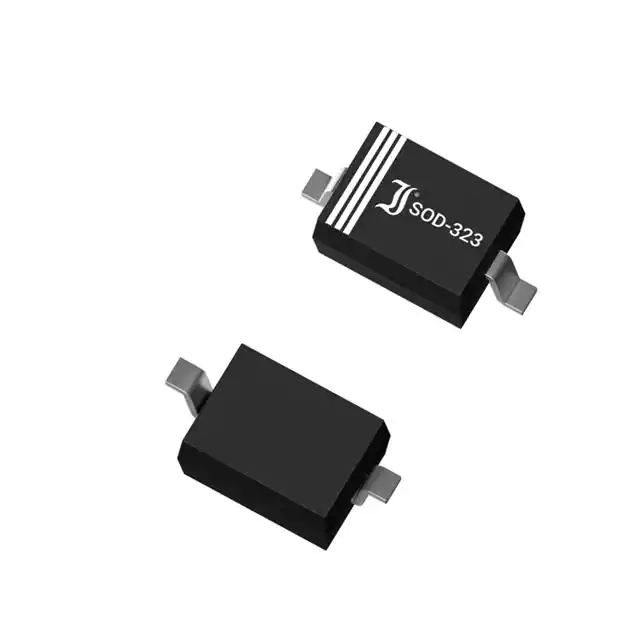

ESD3Z24GWTVS DIODE 24VWM 35VC SOD-323 |
5,303 |
|
Datasheet | SC-76, SOD-323 | - | Bulk | Active | Zener | 1 | - | 24V | 26.7V | 35V | 16A (8/20µs) | 550W | No | General Purpose | 80pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
